CHC X91+ GPS GLONASS Receiver >> High Performance network
gps trimble r8

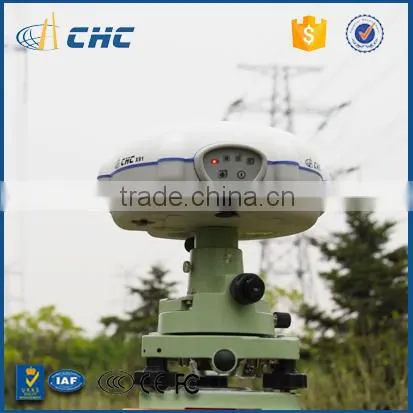

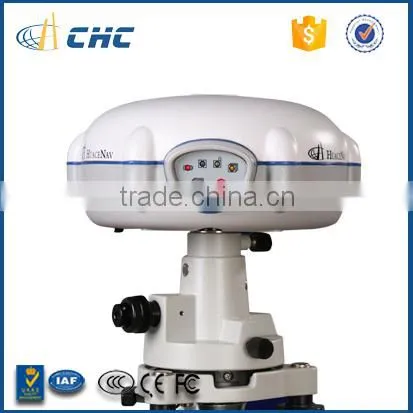

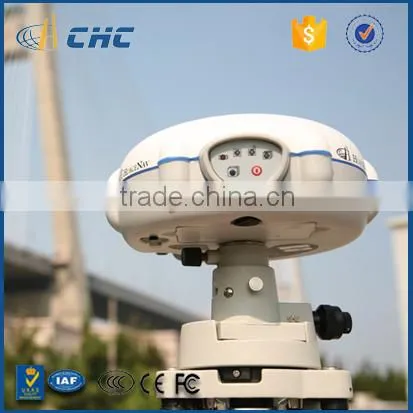

The CHC X91+ GNSS RTK receiver is a compact GPS receiver designed for high accuracy and productivity even in harsh environments. Powered by 220 channels core engine, supporting GPS GLONASS, Galileo and China BeiDou constellations, the X91+ gps receiver provides a cost-effective solution to any surveying project.
Easy-to-use, efficient and intuitive work flow, designed for advanced network RTK survey, compact and rugged, the X91+ gps is the perfect choice for demanding survey applications.
gps trimble r8
CHC X91+ receievr kit
| X91+ Kit w/ Internal Rx: 430-450 MHz | ||
| 0505 010 001 | X91+ Kit w/ Internal CHC Rx: 430-450 MHz | 1 |
| 1191 806 736 | X91+ GNSS Receiver | 1 |
| 0402 000 027 | UHF Whip Antenna | 1 |
| 0406 000 010 | Transport Hard Case | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| X91+ Kit w/ Internal Rx: 450-470 MHz | ||
| 0505 010 002 | X91+ Kit w/ Internal CHC Rx: 450-470 MHz | 1 |
| 1191 806 726 | X91+ GNSS Receiver | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| 0406 000 010 | Transport Hard Case | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| X91+ Kit w/ Internal Tx/Rx: 410-470 MHz | ||
| 0505 010 003 | X91+ Kit w/ Internal Tx/Rx: 410-470 MHz | 1 |
| 1191 806 826 | X91+ GNSS Receiver | 1 |
| 0406 000 010 | Transport Hard Case | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| 0101 060 019 | Internal Tx/Rx Datalink | 1 |
| 0404 000 047 | Extension Pole | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| 0403 000 108 | External Power Cable | 1 |
gps trimble r8
Fully Integrated
Built-in GNSS engine, antenna, UHF and GSM/GPRS modules, Bluetooth® communication in one single unit to make your everyday work simple.
Compact and light weight
The size of 180 mm x 85 mm (3.3 in x 7.1 in) makes the X91+ only weights 1.35 kg (48 oz) with battery.
Optimized for Network RTK GPS
Connection to GNSS RTK Networks is made easy and benefits from the unique X91+ auto-connect feature.
Compatibility
The X91+ RTCM compliance with major GNSS brands allow a trouble-free integration into an existing pool of survey instrument.
Competitive and Reliable gps trimble r8
By combining decades of positioning and surveying know-how, the X91+ is one of the most powerful GNSS solutions, with no compromise with quality but at an affordable price for every surveyor.
gps trimble r8GPS GLONASS Receiver helps make your work more efficient.
gps trimble r8
|
GNSS Characteristics |
· 220 channels with simultaneously tracked satellite signals − GPS: L1C/A,L2C, L2E, L5 − GLONASS: L1C/A, L1P, L2C/A, L2P − SBAS: WAAS, EGNOS, MSAS − Galileo: GIOVE-A and GIOVE-B · Advanced multipath mitigation · Low noise carrier phase measurement |
| Performance specifications |
· Real Time Kinematics − Horizontal: 10mm+1ppm RMS − Vertical: 20mm+1ppm RMS − Initialization time: 10s − Initialization reliability: typical >99.9% gps trimble r8 · Post Processing Static − Horizontal: 2.5mm+1ppm RMS − Vertical: 5mm+1ppm RMS − Baseline Length: ≤300km |
Communications |
· 1x RS232 serial port and 1x high-speed USB · Integrated GSM/GPRS modem · Integrated Bluetooth ® communications port · Optional radio modem − CHC Datalink: 1W-20W adjustable − Bandwidth: 410-430 / 430-450 / 450-470 Mhz Protocols − RTCM2.1, RTCM2.3, RTCM3.0, CMR, CMR+ input and output − NMEA0183 and GSOF outputs − RINEX and HCN outputs for GPS raw data |
Physical |
· Size (H×D): 80mm×180mm · Weight: 1.25Kg with battery · Working Temperature: -30 °C − +65 °C · Storage Temperature: -40 °C − +75 °C · Humidity: 100% condensation · Dustproof: IP67 · Waterproof : protected from temporary immersion to depth of 1 meter floats. · Shock : survives a 2−meter drop on to concrete |
Electrical |
· Typical power consumption: 2.6W · Battery capacity : 2200mAh · Operating times on internal battery : 5 hours · External power input : 9-18VDC |
Software (optional) |
· CHC’s Landstar field data collection software |
gps trimble r8
X91+ is the best GPS GLONASS Receiver you can have for the moment.
CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.
gps trimble r8
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
gps trimble r8
If you have any question on our X91+ GPS GLONASS Receiver , please feel free to contact us.
CHC will always dedicate the best service to you. gps trimble
|
Shanghai Huace Navigation Technology LTD.
599 Gaojing Road, Building C,
Reliable - Powerful - Competitive |
|
CHC X91+ GPS GLONASS Receiver will always dedicate the best performance for you. gps trimble r8
