CHC X20+/X20i(iOS) high accuracy dgps geological equipment GPS L1

FOB Price

USD $2,600 - $3,800 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shanghai, China

Brand Name:

CHC

Model Number:

X20+ / X20i

Product Description

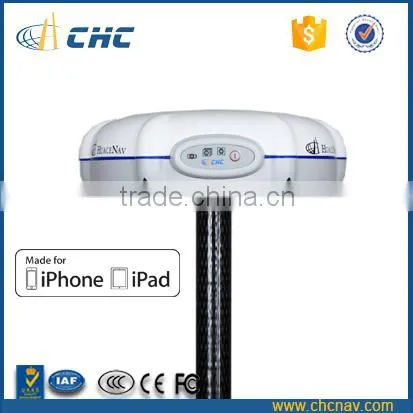

CHC X20+/X20i(iOS) high accuracy dgps geological equipment GPS L1

The CHC X20+ / X20i L1 GPS receiver is powered by a high precision L1 GPS engine with the most trusted L1 tracking technology. Static surveys are reliably completed with short occupation times at a fraction of the cost compared to RTK systems.

gps gnss system

X20+GPS Kit

X20+ GPS Post Processing \| 12 Channel
Part Number	Description	Pcs
X20+ Kit
0505 050 001	X20+ Kit	1
1620 321 106	X20+ GPS Receiver Static Only	1
0406 000 009	Carrying Pouch	1
0403 000 038	GPS to PC Data Cable	1
0505 990 001	Battery Charger w/Power Adapter with Cord	1
0405 000 007	Lithium Battery	1
Post Processing Software
1904 210 571	CGO Post Processing Software	1

Affordable and Reliable
The X20+ / X20i GPS system is affordable and offers precise accuracy. The high-accuracy surveys benefit from having extra simultaneous receivers in adjustments and precision mapping applications have the advantage of added survey accuracy from additional baselines.

Static Surveys - Easy to use
Position the X20+ / X20i, turn it on, and data records instantly. Collection continues until the receiver is turned off. Plug & Play USB support makes copying log files as simple as dragging your mouse.

Compact and Lightweight
X20 / X20i weighs less than 0.8 kg (1.76 lb), with a full battery, and measures 17.5 cm (6.9) in diameter. Its ergonomic design is easy to deploy in large numbers, allowing even sizable projects to be completed in a single day without fatigue.

Expandable
Add on an X90-OPUS or X900s-OPUS to extend your projects cm level baselines to hundreds of kilometers! Upgrade the unit with our iOS enabled bluetooth transceiver to wirelessly collect submeter positions in real-time or cm post processed.

Key Features

Cost-effective - Professional L1 GPS survey technology in an inexpensive package

Fool Proof - ‘Single Button’ operation for automatic static recording

Easy Data Download - High-speed USB port compatible with all operation systems

Compact and Rugged - Small, lightweight and cable-free for easy field operation

Upgrable - The iOS bluetooth upgrade enables all iOS apps to collect reliable half meter real-time GPS positions

Finished Products

CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance. Most of CHC products have achieved IP67 dustproof and waterproof level.

Specifications

gps gnss system

GNSS Characteristics	12 channels: GPS L1 C/A code, L1 full carrier, SBAS, DGPS Extremely low noise and low multi-path error Optimized for low-elevation satellite tracking
Performance specifications	Post Processing Static - Horizontal: 5 mm + 1 ppm RMS - Vertical: 10 mm + 2 ppm RMS
Communications	1x RS232 serial port 1x high speed USB Protocols: - RINEX and HCN outputs for GPS raw data - NMEA GGA, GSV, RMC, GLL, VTG, ZDA, GST, GRS, GSA - iOS location sevices (X20i) Data Storage: - 4 GB internal memory - GPS device mounts as a USB memory drive iOS bluetooth (optional)⁽²⁾
Physical	Size (H×D): 65.5 x 175 mm (2.6 x 6.9 in) Weight: 0.8 kg with battery (1.74 lb) Working Temperature: -30 °C to +60 °C (-22 °F to 140 °F) Storage Temperature: -40 °C to +70°C (-40 °F to 158 °F) Humidity: 100% condensation Dust & Waterproof: IP67 (total dust protection; temporary immersion to depth of 1 m; floats) Shock: survives repeated 2m drops to concrete
Electrical	Power consumption: 1.8 W Battery capacity: 2600 mAh Operating time (internal battery): 8 hours External power input: 9-18 VDC
Software	Optional CHC CGO post processing software RINEX converter Hcconfig TerraGo Edge (X20i) All location aware iOS applications (X20i) All android applications supporting SPP and NMEA

Packaging Details

CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.

Production Lines

gps gnss system

CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
