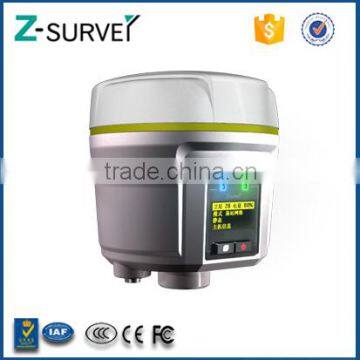

Z-survey Z8 GNSS Receiver, GPS Survey Equipment, LCD Screen
With allconstellation signal reception, multiple communication options and powerful positioning technology, the
Z-Survey Z8 GNSS receiver offers high precision and reliability which is the principle Z-Survey upholds, and
increases the confidence of surveyors when challenged by demanding environments. Meanwhile, its compact
size and sleek ergonomic design enable easily handling and help to lighten working intensity of operators.
| Z8 GNSS RTK | 220 Channel | ||
| Part Number | Description | Pcs gps survey |
| Z8 Kit w/ Internal Tx/Rx: 410-470 MHz | ||
| Z8 Kit w/ Internal Tx/Rx: 410-470 MHz | 1 | |
| 1180020 035 121 | Z8 GNSS Receiver | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| Z Series Base Accessory Kit | ||
| 0505 140 002 | Z Series Base Accessory Kit | 1 |
| 0405 000 007 | Lithium Battery | 2 |
| 0403 000 043 | H.I. Tape | 1 |
| 0404 000 047 | Extension Pole | 1 |
| 0403 000 046 | Tribrach w/ Optical Plummet | 1 |
| 0404 000 052 | Auxiliary H.I. Tool | 1 |
| 0403 000 044 | Tribrach Adaptor | 1 |
| 0406 000 058 | Transport Hard Case | 1 |
| Z Series Rover Accessory Kit | ||
| 0505 140 003 | Z Series Rover Accessory Kit | 1 |
| 0505 990 001 | Battery Charger w/Power Adapter with cord | 1 |
| 0405 000 007 | Lithium Battery | 2 |
| 0404 000 004 | 2M Range Pole w/ Bag | 1 |
| 0404 000 052 | Auxiliary H.I. Tool | 1 |
| 0406 000 057 | Transport Hard Case | 1 |
| 0403 000 098 | Z8 OTG Cable | 1 |
| 0403 000 097 | Z8 USB Cable | 1 |
| 0403 000 040 | Z8 GNSS to PC Data Cable | 1 |
gps survey
Fully Integration
Incorporating a cuttingedge GNSS engine, satellite antenna, internal radio, optional 4G cellular modem,
Bluetooth ® , WiFi, and dual-battery in a rugged and miniature unit, Z8 makes your daily work more
productive and effective.
Tilt Measurement Technology
When the pole tilts within 30°, the builtin MEMS based tilt measurement system precisely calculates the
actual offset according to the heading angle and inclination angle, which not only meets the requirement
of high precision measurement, but also relieves the users from continually checking whether the pole is plumb.
Complete Solution with Hardware and Software
LandStar6 is a RTK survey software, which is featured by intuitive user interface, simplified workflow and
plentiful functions, and it can be run on various operating systems, such as Android, iOS and Windows
Mobile. Combining with LandStar6, Z8 provides quicker and easier surveying experience while calling the
corresponding surveying mode.
User-friendly LCD Panel Design
Z8 features a sunlightvisible, fourrow LCD panel that shows basic information of receiver and indicates current
operating condition. In addition, users can directly change the working mode and save the trouble of
connecting to the controller.
gps survey
gps survey
| GNSS characteristics | |
| 220 channels | with simultaneously tracked satellite signals |
| GPS: L1C/A, L1C, L2C, L2E, L5 | |
| GLONASS: L1C/A,L1P, L2C/A, L2P, L3 | |
| SBAS: WAAS, EGNOS, MSAS | |
| Galileo: E1, E5A, E5B (test) | |
| BeiDou: B1, B2 | |
| Performance specifications | |
| Real Time Kinematics (RTK) | Horizontal: 8 mm + 1 ppm RMS |
| Vertical: 15 mm + 1 ppm RMS | |
| Initialization time: typically < 5 s | |
| Initialization reliability: typically > 99.9% | |
| Network RTK | Horizontal: 8 mm + 0.5 ppm RMS |
| Vertical: 15 mm + 0.5 ppm RMS | |
| Post Processing Static | Horizontal: 2.5 mm + 0.5 ppm RMS |
| Vertical: 3.5 mm + 0.5 ppm RMS | |
| Communications gps survey | |
| 1 X UHF antenna port | |
| 2 X 7pin Lemo | |
| Cellular | 3.75 G modem (optional 4 G modem) |
| HSPA+ 21 Mbps (download), 5.76 Mbps (upload) | |
| WCDMA 850/900/1700/1900/2100 | |
| EDGE/GPRS/GSM 850/900/1800/1900 | |
| Multimode Bluetooth®: | completely compatible with Android,Windows Mobile, |
| IOS and Win7/Win8 operating system | |
| WiFi | 802.11 b/g/n, access point mode |
| CHC radio modem (2) | Internal Rx/Tx: 410 470 MHz |
| Transmit power: 0.1 W, 0.5 W, 1 W and 2 W | |
| Range: 35 Km | |
| Protocols | CMR, CMR+, CMRx, RTCM 2.3, RTCM 3.0, RTCM 3.2 |
| input and output | |
| NMEA0183 output | |
| RINEX and HCN outputs for GNSS raw data | |
| NTRIP | |
| Data Storage | 32 G internal memory, up to 64 G expansion |
| GPS device mounts as a USB external hard drive | |
| Physical | |
| Size (HxD) | 135 x 124 mm (5.5 x 4.9 in) |
| Weight | 1.02 kg (26 oz) |
| Operating temperature | -45 °C to +75 °C (-49°F to 167°F) |
| Storage temperature | -55 °C to +85°C (-67°F to 185°F) |
| Humidity | 100% condensation |
| Waterproof and dust proof | IP67 protected from temporary immersion to depth |
| of 1 m (3.3 ft), floats | |
| Shock | survives a 3 m (9.8 ft) drop on to concrete |
| Electrical | |
| Power consumption | 3.2 W |
| Li-ion battery capacity | 6800 mAh, 7.4 V |
| Battery life | typical 12 hours in RTK mode |
| External power | 12 to 36 V DC |
| User Interface gps survey | |
| Front Panel | Allows for receiver setup of UHF, GPRS and data logging |
| Web User Interface | Allows remote configuration and firmware upgrade |
| Setup of multiple data stream | |
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
gps survey
Production Lines
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
gps survey
Contact Us
CHC will always dedicate the best service to you.
|
Shanghai Huace Navigation Technology LTD.
599 Gaojing Road, Building C,
Reliable - Powerful - Competitive |
|
