CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK

CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK thumbnail-1
CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK thumbnail-2
CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK thumbnail-3
CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK thumbnail-4
CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK thumbnail-5
CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK thumbnail-6
CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK photo-1

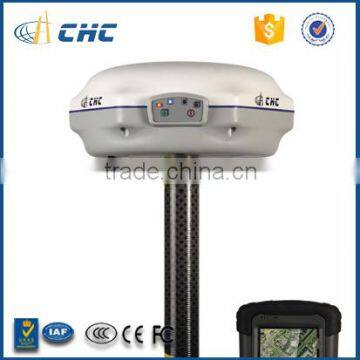

CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK photo-2

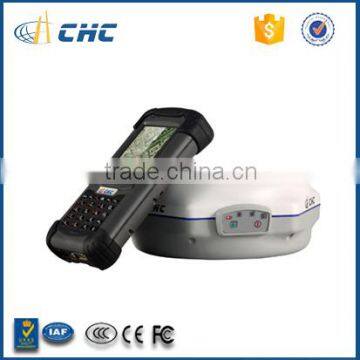

CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK photo-3

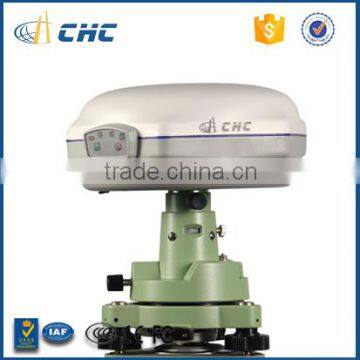

CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK photo-4

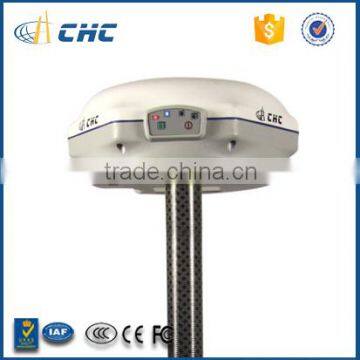

CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK photo-5

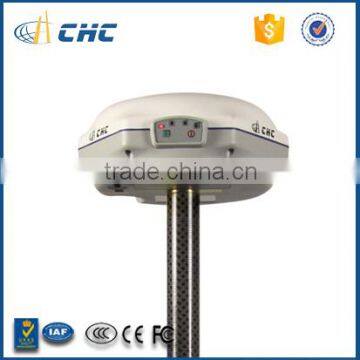

CHC X900+ Satel GNSS Receiver, Survey Equipment,high Performance GPS RTK photo-6
US$ 7,200 - 9,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CHC
Model Number:
CHC X900+ Satel
Contact Supplier Request Quote Chat Now
Shanghai Huace Navigation Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name CHC
Model Number CHC X900+ Satel

CHC X900+ GPS RTK GNSS Receiver >> Providing the Most Cost-effective Survey Choice.



CHC X900+ satel GNSS Receiver, survey equipment,high Performance GPS RTK



 X900+ GNSS Receiver Kit

X900+ GNSS RTK | 120 Channel
Part Number Description Pcs
X900+ Kit w/ Internal Rx: 430-450 MHz
0505 010 001 X900+ Kit w/ Internal CHC Rx: 430-450 MHz 1
1191 806 736 X900+ GNSS Receiver 1
0402 000 027 UHF Whip Antenna 1
0406 000 010 Transport Hard Case 1
0403 000 038 GPS to PC Data Cable 1
X900+ Kit w/ Internal Rx: 450-470 MHz
0505 010 002 X900+ Kit w/ Internal CHC Rx: 450-470 MHz 1
1191 806 726 X900+ GNSS Receiver 1
0402 000 006 UHF Whip Antenna 1
0406 000 010 Transport Hard Case 1
0403 000 038 GPS to PC Data Cable 1
X900+ Kit w/ Internal Tx/Rx: 410-470 MHz
0505 010 003 X900+ Kit w/ Internal Tx/Rx: 410-470 MHz 1
1191 806 826 X900+ GNSS Receiver 1
0406 000 010 Transport Hard Case 1
0403 000 038 GPS to PC Data Cable 1
0101 060 019 Internal Tx/Rx Datalink 1
0404 000 047 Extension Pole 1
0402 000 006 UHF Whip Antenna 1
0403 000 108 External Power Cable 1



Outstanding RTK Performances

The X900+ offers greater performances with proven and innovative GNSS functionality. The future proof multi-constellation tracking feature increases availability in obstructed sky conditions such as construction sites in urban areas while securing RTK accuracy.

A Selection of Field Surveying Software
The CHC Landstar 5 gives full control over data collection and stakeout, without compromising ease-of-use and high productivity.

Carlson SurvCE combines advanced functionality and an intuitive user interface. SurvCE is a complete data collection system for real time GPS RTK and can be upgraded to take control of total stations and advanced road projects.

Compact and rugged
The X900+ innovative design integrates a built-in GNSS core, multi-constellation antenna, Bluetooth® communication and optional UHF and GSM/GPRS modules in one single receiver.

Exceptional Performances to Price Ratio
CHC X900+ GPS RTK receiver brings extremely affordable high-end GNSS RTK solution to surveyors without the conventional cost associated.



Key Features

GNSS Receiver helps make your work more efficient.

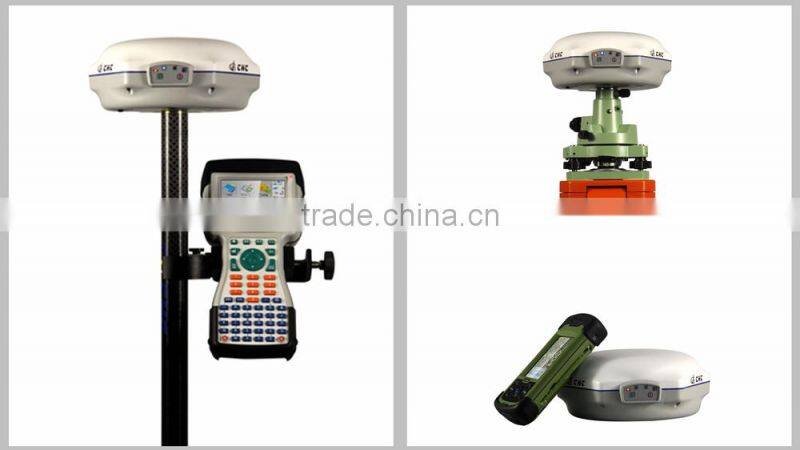

CHC X900+ satel GNSS Receiver, survey equipment,high Performance GPS RTK



Specifications

GNSS  receiver can assure you working efficiency and make your survey job more interesting and easy.

GNSS Characteristics

·  120­channel signal tracking
­ −         GPS: L1, L2, L2C, L5
­ −         GLONASS: L1, L2
­ −         SBAS: WAAS, EGNOS, MSAS
­ −         BeiDou: B1, B2
­ −         Galileo: E1, E5A, E5B (optional)
·  Advanced multipath mitigation technology
·  Low noise carrier phase measurement

Performance specifications

· Real Time Kinematics (RTK)
­ −         Horizontal: 10 mm + 1 ppm RMS
­ −         Vertical: 20 mm + 1 ppm RMS
­ −         Initialization time: < 10 s
­ −         Initialization reliability: > 99.9%
· Post Processing Static
­ −         Horizontal: 5 mm + 1 ppm RMS
­ −         Vertical: 10 mm + 1 ppm RMS

Communications

· 1x RS232 serial port
· 1x high speed USB
· Integrated Bluetooth® class 2
· Integrated GSM/GPRS modem
· CHC radio modem internal Rx: 430­450/450­470 MHz
· Optional radio modem(2):
­ −         Internal Rx/Tx: 403­473 MHz
­ −         External Tx DL5: 1W ­ 20W adjustable
· Protocols:
­ −         RTCM2.1, RTCM2.3, RTCM3.0, CMR, CMR+ and RTCA
­ −         NMEA0183 output
­ −         RINEX and HCN outputs for GNSS raw data
· Data Storage:
­ −         4 GB internal memory
­ −         GPS device mounts as a USB external hard drive

Physical

· Size (LxWxH): 190 x 200 x 84 mm (7.5 x 7.9 x 3.3 in)
· Weight: 1.4 kg with battery (49 oz)
· Operating temperature: ­-40 °C to +65 °C (­-40°F to 149°F)
· Storage temperature: -­40 °C to +75°C (­-40°F to 167°F)
· Humidity: 100% condensation
· Waterproof and dust proof: IP67 ­ protected from temporary
immersion to depth of 1 meter, floats
· Shock: survives a 2­meter drop on to concrete

Electrical

· Power consumption: 2.6 W
· Li­ion battery capacity: 2200 mAh
· Battery life: typical 5 hours in RTK mode
· External power input: 9­18 VDC

Software (optional)

· CHC’s Landstar field data collection software
· Carlson’s SurvCE field data collection software

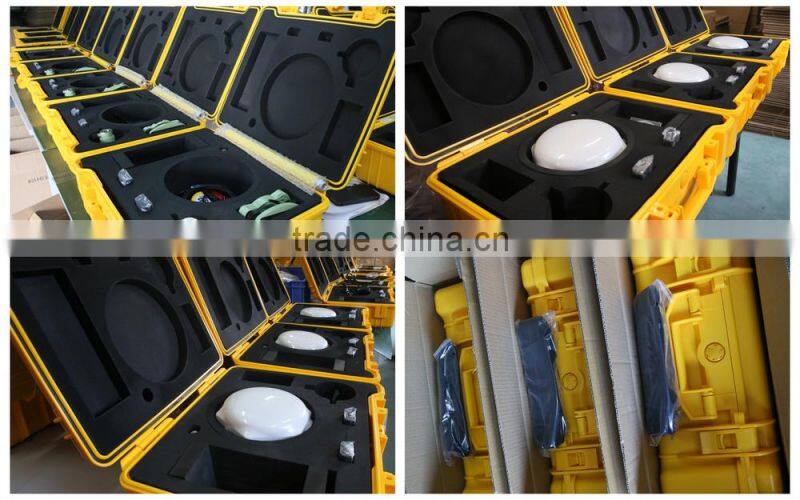

Packaging Show

 CHC's main stranght is focused on GNSS Receiver, so we can better get the technology full used.

CHC X900+ satel GNSS Receiver, survey equipment,high Performance GPS RTK

 CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.

Production Lines

GNSSreceiver is powered with the latest gnss technology.

CHC X900+ satel GNSS Receiver, survey equipment,high Performance GPS RTK

 CHC has the latest production facilities, professional production lines and strict testing requirement to make sure  every device on your hands is with good quality and can be trusted.



Contact Us

If you have any question on our X900+ GNSS receiver, please feel free to contact us.

CHC will always dedicate the best service to you.



   Shanghai Huace Navigation Technology LTD.




    599 Gaojing Road, Building C,
    201702, Shanghai, China

    Phone: +86 21 5426 0273













    Reliable - Powerful - Competitive

 CHC X900+ satel GNSS Receiver, survey equipment,high Performance GPS RTK

CHC X900+ GNSS  receiver will always dedicate the best performance to you.
