CHC LT500 >> GNSS Handheld Receiver / Handheld GPS Survey in Shanghai
Professional Surveying & Mapping Solutions
handheld gps

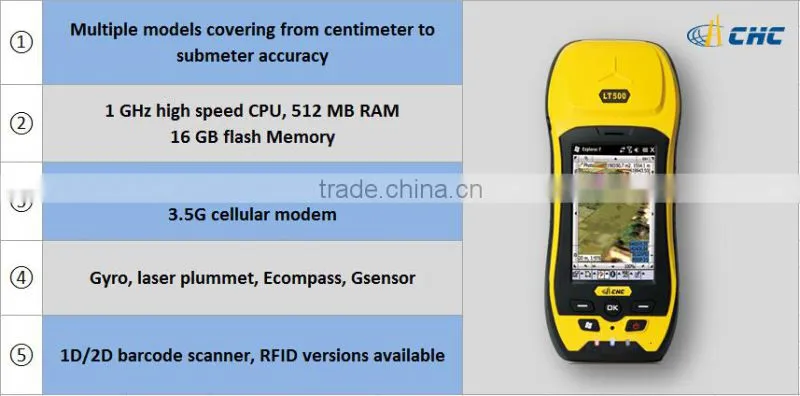

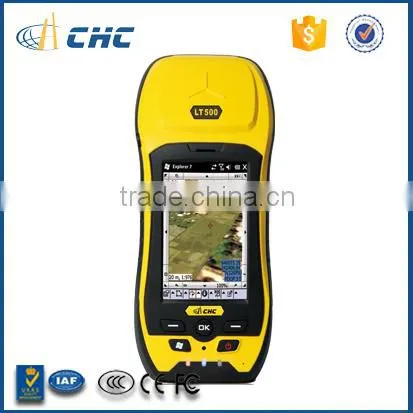

The LT500 is a rugged, versatile GNSS GIS handheld receiver, that LT500N/LT500T/LT500H covers three accuracy ranges from submeter to centimeter accuracy and is the most cost effective positioning solution for Survey, Construction and GIS professionals. Shanghai

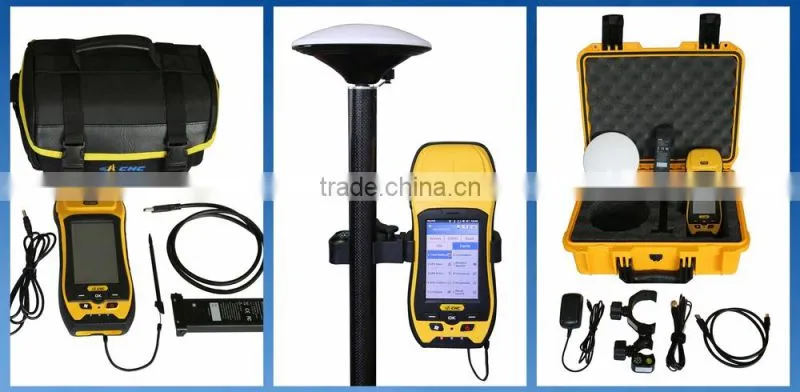

LT500H GNSS Kit
| LT500H GNSS (CM Level) | 120 Channel L1/L2 GPS+GLO+BDS | ||
| Part Number | Description | Pcs |
| LT500H Kit | ||
| 0505 120 001 | LT500H Kit | 1 |
| 1250 046 221 | LT500H GNSS Receiver | 1 |
| 0406 000 041 | Carry Pouch | 1 |
| 0403 000 083 | Data Cable | 1 |
| 0405 000 063 | Li-ion battery | 1 |
| 0405 000 099 | Power Adapter | 1 |
| 0103 020 183 | Stylus | 1 |
| Software | ||
| 0408 000 008 | SurvCE GPS Only Data Collection Software | 1 |
| 0408 000 021 | DigiTerra Professional Software | 1 |
| Additional Accessory | ||
| 0405 000 099 | LT500 Power Adapter | 1 |
| 0403 000 083 | LT500 Data Cable | 1 |
| 0403 000 084 | Cable External GPS Antenna to LT500 | 1 |
| 0404 000 044 | Controller Mount for Range Pole | 1 |
| 0406 000 041 | LT500 Carry Pouch | 1 |
| 0101 080 005 | 8G TF Card | 1 |
| 0103 020 183 | LT500 Stylus | 1 |
| 0405 000 063 | LT500 Lithium Battery | 1 |

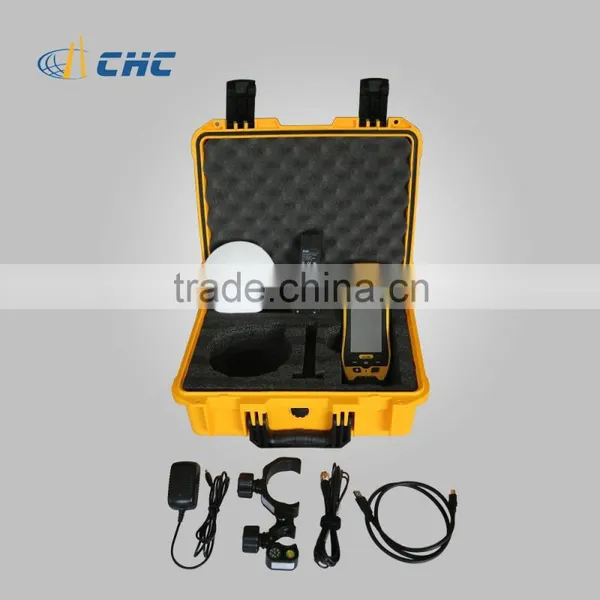

| 0505 120 004 | LT500H Precision Kit | 1 |
| 0406 000 036 | Transport Hard Case | 1 |
| 0402 000 022 | External Precision GNSS Antenna A220G | 1 |
| 0403 000 084 | Cable External GPS Antenna to LT500 | 1 |
| 0404 000 004 | 2M Range Pole w/bag | 1 |
| 0404 000 044 | Controller Mount for Range Pole | 1 |
LT500H L1/L2 GPS+GLONASS, L1 BDS, L1 Galileo Tracking
The LT500H addresses a centimeter level position accuracy utilizing the internal cellular modem to access a local reference station network under RTK working mode.
LT500T L1 GPS+GLONASS+BDS+Galileo
The LT500T is designed to work in the projects requiring the decimeter accuracy, in the application as utilities, underground pipelines and land records management when high accuracy is required.
LT500N L1 GPS handheld gps survey
Embedded with professional GPS engine, the LT500N prepares the user to capture submeter data with SBAS differential correction signals or DGPS correction information from the local reference station.
Productive sensors

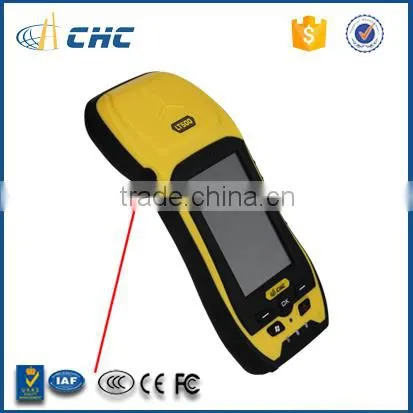

User productivity is greatly enhanced with the builtin gyroscope, an innovative laser plummet for positioning the accurate handheld receiver over a point, an Ecompass for showing the direction and a Gsensors for leveling. Optional RFID and 1D/2D bar code scanners help automate complex inventory tasks. haheld gps survey
Stay connected (Shanghai)
Builtin standard 3.5G cellular modem and WiFi keep you connected to RTK corrections' networks and provide seamless internet access. Bluetooth is available for connection with other hardware such as laser range finder, underground pipeline locator.
LT500 handheld gps survey in Shanghai
Shanghai
GNSS Characteristic |
| Type | LT500H | LT500T | LT500N |
| Channel | 120 | 220 | 12 |
| Satellite Signals | GPS: L1, L2. GLONASS: L1, |
GPS: L1 GLONASS: L1. |
GPS: L1 |
| Update Rate | 1 Hz, or higher | 1 Hz, or higher | 1 Hz, or higher |
| Protocols | RTCM2.x/RTCM3.x |
RTCM2.x/RTCM3.x |
RTCM2.x |
| Cold Start | < 50s | < 45s | < 60s |
| Hot Start | < 35s | < 30s | < 30s |
| Reacquisition | < 1s | < 2s | < 1s |
| Stand alone GPS | 1.2m | 2m | 2.5m |
| Realtime Correction | 1cm | 25cm | 60cm |
| With SBAS | Horizontal: 50cm | Horizontal: 50cm | Horizontal: 1m |
| Real-time Correction | Horizontal: 1cm |
Horizontal: 25cm |
Horizontal: 60cm |
| Post Processing Static | Horizontal: 5 mm ± 1 ppm |
Horizontal: 5 mm ± 1 ppm |
Horizontal: 5 mm ± 1 ppm |
More Details: Shanghai
| System configuration | · Windows® Embedded Handheld 6.5 operation system
|
Physical | · Size (LxWxH): 236 x 97 x 77 mm (9.3 x 3.8 x 3.0 in)
· Weight: 897 g with battery (31.6 oz)
|
| Display | · 4.3” sunlight readable screen
|
Electrical | · Liion battery capacity: 11.1V, 2600 mAh
|
| Communications | · Cellular Modem
|
Sensors | · Gyroscope
· Gsensor
|
handheld gps
CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.
Shanghai

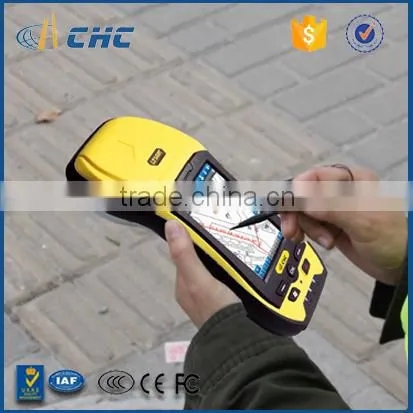

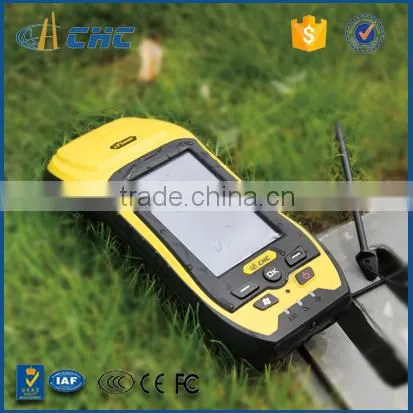

Rugged design helps you to work in kind of hursh environment.

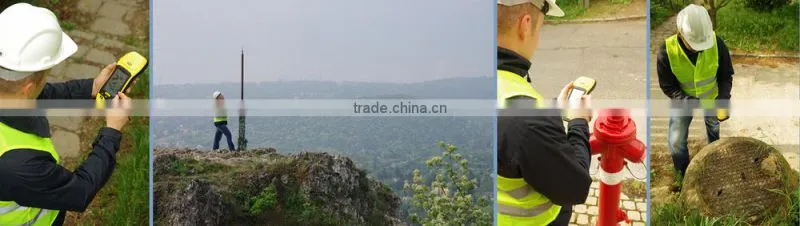

No matter it is traditional survey work or GIS work, the built in high performance GNSS models makes your work more efficeint and easy. Shanghai
Shanghai
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted. Shanghai
CHC will always dedicate the best service to you.Shanghai
|
Shanghai Huace Navigation Technology LTD.
599 Gaojing Road, Building C,
Reliable - Powerful - Competitive |
|
