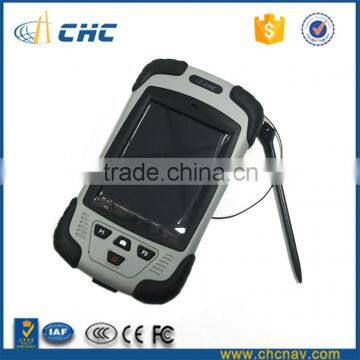

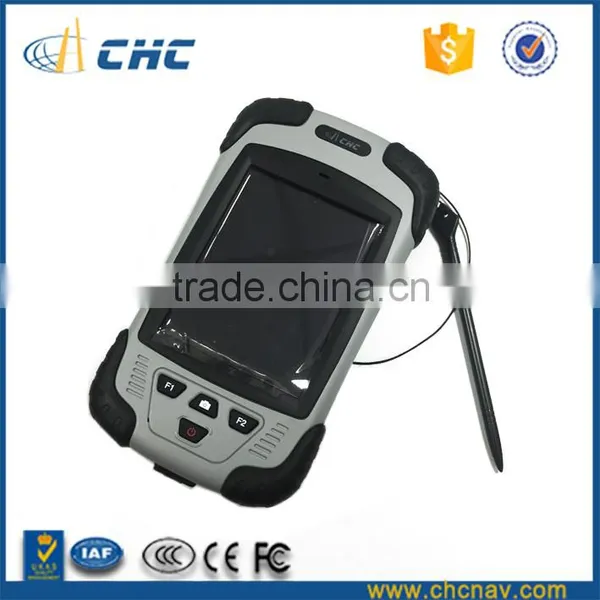

CHC LT30 magellan gps handheld affordable GIS instrument magellan gps maps

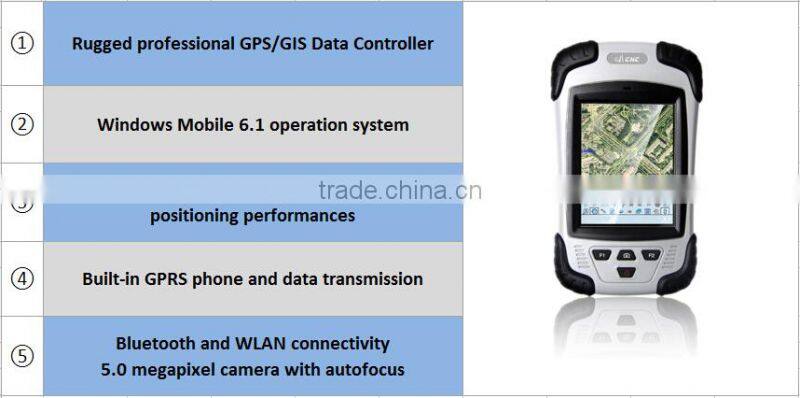

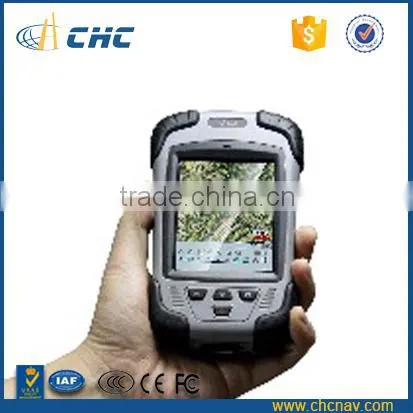

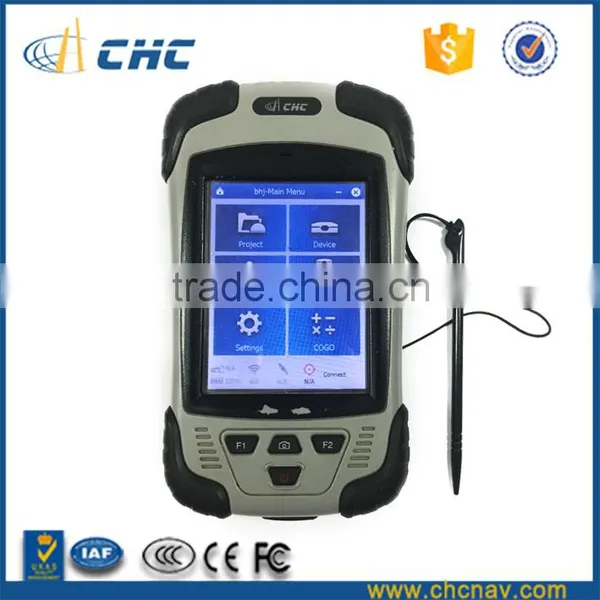

LT30 is a cost-effective professional GPS/GIS handheld receiver with SBAS enabled high-sensitivity GPS. Designed for efficient field work in the most demanding conditions, LT30 features sharp VGA sunlight readable screen and up to 10 hours battery life. h
andheld gis
LT30 Data controller Kit
| GPS/GIS Handheld Controller Kit | ||
| 0505 010 008 | LT30 GPS/GIS Handheld Controller Kit | 1 |
| 0401 070 022 | LT30 GPS/GIS Handheld Controller | 1 |
| 0403 000 033 | Data Cable | 1 |
| 0405 000 027 | Battery | 1 |
| 0405 000 028 | Power Adapter | 1 |
| 0404 000 010 | Controller Bracket for Range Pole | 1 |
handheld gis
Versatile Data Collector
Extremely affordable, LT30 is a the ideal rugged field computer for a large range of applications from GIS data collection and maintenance, agriculture field measurement, environmental control…
Connectivity Handheld GPS Survey
With an integrated GPRS voice and data modem, LT30 offers advanced methods needed to access the Internet and exchange project files with your office. Wireless connection to external devices such as a laser range finder or RTK receiver is simple with LT30’s Bluetooth and Wi-Fi capability.
Easy software integration

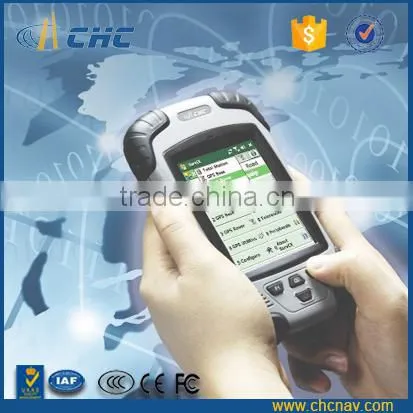

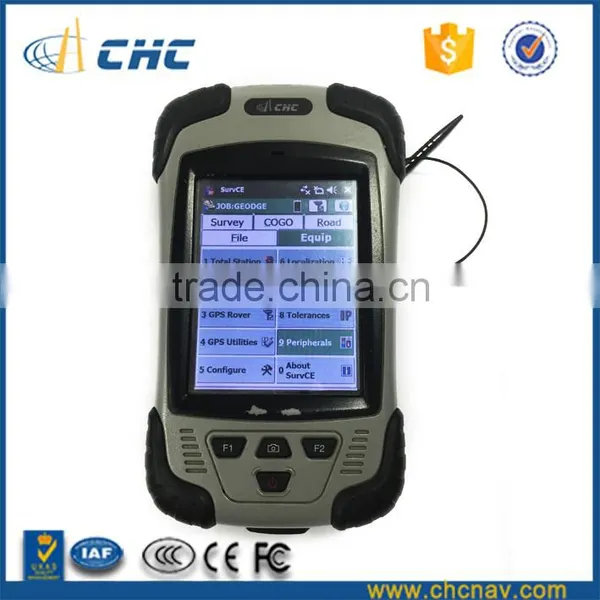

Compatible with field data collection software running on Windows Mobile 6.1, LT30 is the solution for an easy-to-deploy GPS handheld leaving you freedom of choice. anld GPS Survey
handheld gis
ha
CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance. Most of CHC products have achieved IP67 dustproof and waterproof level.
ndheld gis
| GNSS characteristics |
· Highsensitivity GPS module · 14 channel GPS L1, CA code · SBAS (WAAS, MSAS and EGNOS) support · Tracking sensitivity: 159 dBm · Update Rate: 1Hz · Time to first fix − Cold Start < 45 s − Hot Start < 5 s · Integrated geodetic GPS antenna Handheld GPS Survey · MMCX external antenna connector handheld gis |
| Performance specifications |
· Stand alone GPS: 35 m RMS · With SBAS: < 2 m RMS |
| System configuration |
· Windows Mobile 6.1 operating system · 3.7” VGA sunlight readable screen · 624 MHz processor with Graphics Accelerator · Internal memory: 256 MB internal flash storage · MicroSD/MicroSDHC expension slot up to 16 GB · 5.0 megapixel camera with autofocus |
| Communications |
· GSM/GPRS (850/900/1800/1900 MHz) phone and data transmission · Optional RS232 9pin serial |
| Physical |
· Size (LxWxH): 158 x 85 x 25 mm (6.3 x 3.4 x 1.2 in) · Weight: 340 g with battery (12 oz) · Operating Temperature: 20 °C to +60 °C (4°F to 140°F) · Storage Temperature: 30 °C to +70°C (22°F to 158°F) · Dust proof and waterproof as per IP65 standard · Shock: withstand 1.2meter / 4foot drop |
| Electrical |
· Li-ion battery capacity: 3000 mAh · Battery life: up to 10 hours with GPS and backlight |

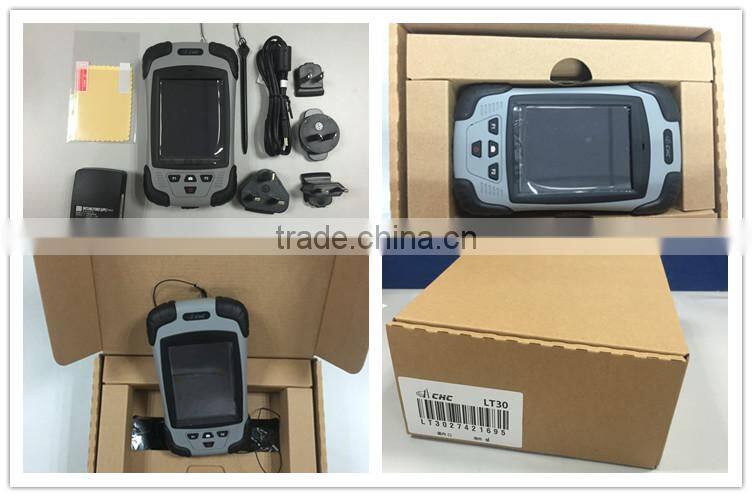

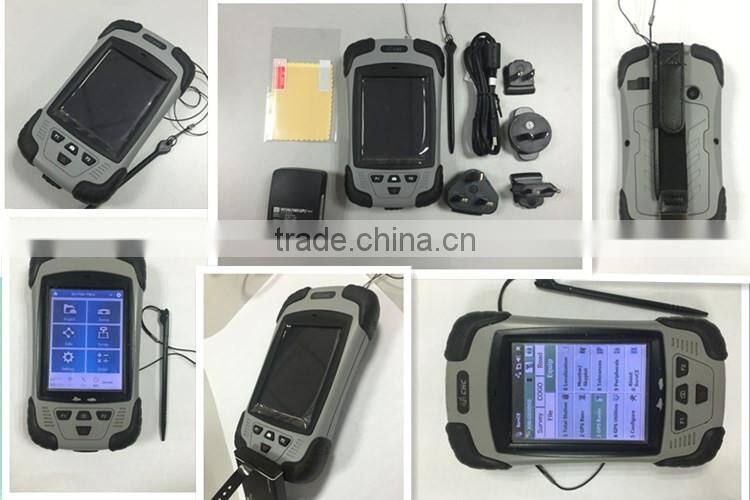

| Package content |

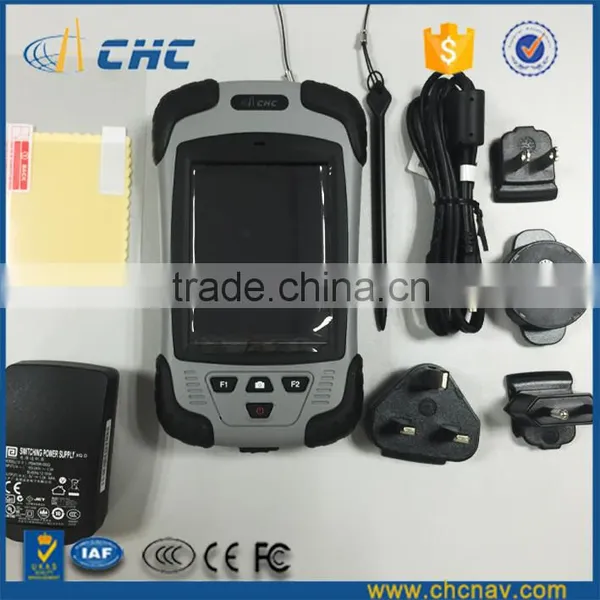

· LT30 GPS handheld receiver · LiIon battery · 8 GB Micro SD card · USB data cable · AC power adapter · Stylus · Hand strap |
| Accessories (optional) |
· Vehicle power adapter · RS232 9pin Serial Adapter · External GPS patch antenna · External battery charger · Carry case · Range pole bracket handheld gis |

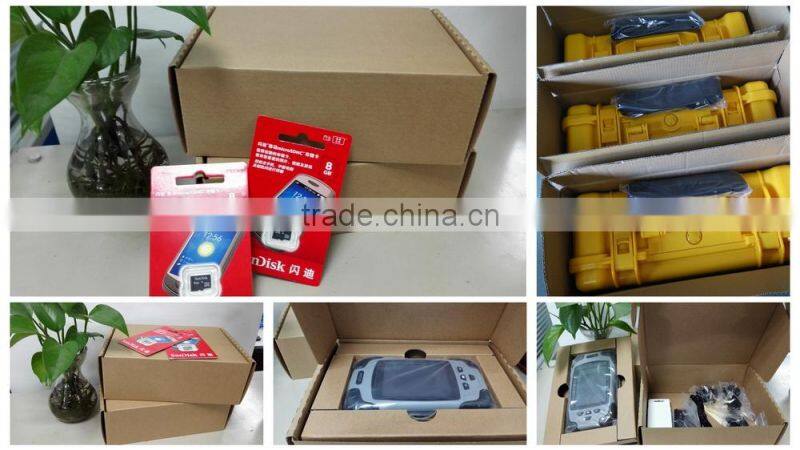

CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages. handheld gis
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
Founded in 2003, CHC designs, manufactures and markets a wide range of professional GPS/GNSS solutions in more than 100 countries. Headquartered in Shanghai (China) and with offices worldwide CHC is a leading GNSS manufacturer with a strong international presence and employs more than 800 professionals worldwide.
Exhibition & Seminar
Please feel free to contact us if you have any question. We will always dedicate the best service to you.
