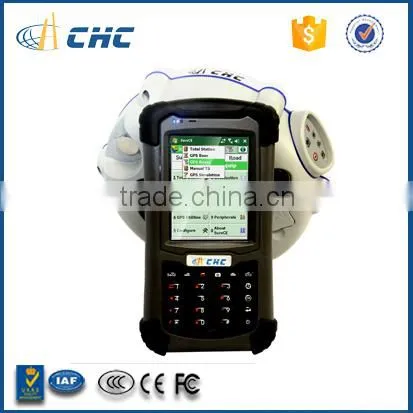

CHC LT30 >> Handheld GPS Survey/ GIS Data Collector trimble tsc3
LT30 is a cost-effective professional GPS/GIS handheld receiver with SBAS enabled high-sensitivity GPS. Designed for efficient field work in the most demanding conditions, LT30 features sharp VGA sunlight readable screen and up to 10 hours battery life. G
trimble tsc3
LT30 Data controller Kit
| GPS/GIS Handheld Controller Kit | ||
| 0505 010 008 | LT30 GPS/GIS Handheld Controller Kit | 1 |
| 0401 070 022 | LT30 GPS/GIS Handheld Controller | 1 |
| 0403 000 033 | Data Cable | 1 |
| 0405 000 027 | Battery | 1 |
| 0405 000 028 | Power Adapter | 1 |
| 0404 000 010 | Controller Bracket for Range Pole | 1 |
Versatile Data Collector
Extremely affordable, LT30 is a the ideal rugged field computer for a large range of applications from GIS data collection and maintenance, agriculture field measurement, environmental control…
Connectivity Handheld GPS Survey
With an integrated GPRS voice and data modem, LT30 offers advanced methods needed to access the Internet and exchange project files with your office. Wireless connection to external devices such as a laser range finder or RTK receiver is simple with LT30’s Bluetooth and Wi-Fi capability.
Easy software integration
Compatible with field data collection software running on Windows Mobile 6.1, LT30 is the solution for an easy-to-deploy GPS handheld leaving you freedom of choice. anld GPS Survey
trimble tsc3
trimble tsc3
| GNSS characteristics |
· Highsensitivity GPS module · 14 channel GPS L1, CA code · SBAS (WAAS, MSAS and EGNOS) support · Tracking sensitivity: 159 dBm · Update Rate: 1Hz · Time to first fix − Cold Start < 45 s − Hot Start < 5 s · Integrated geodetic GPS antenna Handheld GPS Survey · MMCX external antenna connector |
| Performance specifications |
· Stand alone GPS: 35 m RMS · With SBAS: < 2 m RMS |
| System configuration |
· Windows Mobile 6.1 operating system · 3.7” VGA sunlight readable screen · 624 MHz processor with Graphics Accelerator · Internal memory: 256 MB internal flash storage · MicroSD/MicroSDHC expension slot up to 16 GB · 5.0 megapixel camera with autofocus |
| Communications |
· GSM/GPRS (850/900/1800/1900 MHz) phone and data transmission · Bluetooth V2.1 Class 3 · 802.11 b/g wireless LAN · MiniUSB client trimble tsc3 · Optional RS232 9pin serial · Builtin microphone and speaker · NMEA 0183 protocol support trimble tsc3 |
| Physical |
· Size (LxWxH): 158 x 85 x 25 mm (6.3 x 3.4 x 1.2 in) · Weight: 340 g with battery (12 oz) · Operating Temperature: -20 °C to +60 °C (-4°F to 140°F) · Storage Temperature: -30 °C to +70°C (-22°F to 158°F) · Dust proof and waterproof as per IP65 standard · Shock: withstand 1.2meter / 4foot drop |
| Electrical |
· Li-ion battery capacity: 3000 mAh · Battery life: up to 10 hours with GPS and backlight |
| Package content |
· LT30 GPS handheld receiver · LiIon battery · 8 GB Micro SD card · USB data cable · AC power adapter · Stylus · Hand strap |
|
Accessories (optional) |
· Vehicle power adapter · RS232 9pin Serial Adapter · External GPS patch antenna · External battery charger · Carry case · Range pole bracket trimble tsc3 |
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
trimble tsc3
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted. Handheld GPS Survey
trimble tsc3
CHC will always dedicate the best service to you.trimble tsc3
|
