Interlock block making machine burning-free brick making machine

1. Introduction of the interlock block making machine :

This unburned block making machine including a compacting mechanism

 on the upper template, the lower part of the lower platen release mechanism,

 the called compacting mechanism fitted with double crank force increasing mechanism,

ejection mechanism is installed with an ultrasonic vibrator and electromagnetic vibrator.

  hollow block making machine

2. Features of interlock block making machine :

1. The utility model uses electromagnetic and ultrasonic double vibration mechanism

2.  real shock effect, low operating noise, mechanical loss

3. for use crank pressurization device, not only have best compaction effect, but low power

consumption, high intensity block.

4. The block making machine uses Germany Siemens PLC control system and Siemens Touch Screen.
a. It has a human-computer interface screen with easy operation.
b. It is able to set up, update and amend the production perimeters to maximize the production output.
c. It offers a dynamic display of the system's status, automatic trouble shooting and warning notice.
d. It has an advanced logical safety lock function, avoiding mechanical accidents caused by

operational mistakes.
e. It is able to troubleshoot the machinery via remote control.

5. The block making machine uses a special design of fixing table

and knock type vibration, improves the speed of making product and the accuracy of the size of product

6. It uses multi-shaft rotating and compulsory feeding, which greatly improves the density and

 intensity of the blocks, and reduces the feeding time

3. Special design of the interlock block making machine :

 all the body made of strong square steel welding, extremely strong resistance

 to vibration stability performance is very good.

4. Technical Parameter of the interlock block making machine :

Any change of the technical data shall not be advised additionally.

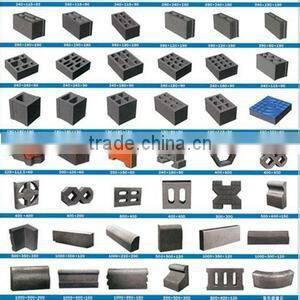

5. Brick Samples of the interlock block making machine :

We can also produce the size according to your requirements, the followed samples’ picture are some of our products for your reference.

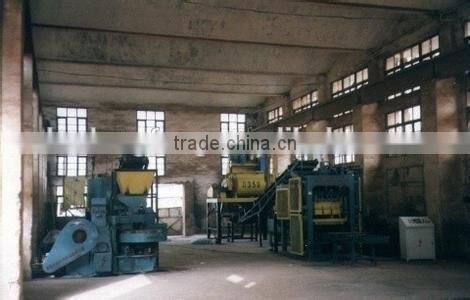

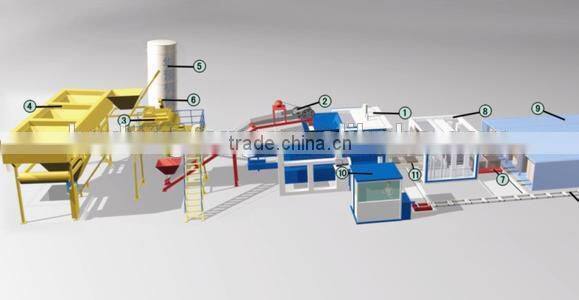

The production line of the interlock block making machine:

6. Raw Materials of QTJ6-20 hollow block making machine :

The raw materials can be sand, stone powder, fly ash, cement, slag, etc., the followed picture is some of the stone powder for your reference.

7.Our factory:

We produces the Ball pressure machine, Roller press, AAC Aerated concrete equipment, mine ore Ball mill, industrial dryer, drier machine, etc.

 Series of equipment, all by senior engineer operating computer precise design. The company area is located in zhengzhou horse village economic development zone, covering sixty thousand square meters, with standard workshop more than thirty-five thousand square meters, the main processing equipment more than 180 sets, online more than 1000 employees, with bachelor degree or above of more than 200 employees, middle, high technician of more than 120 people..

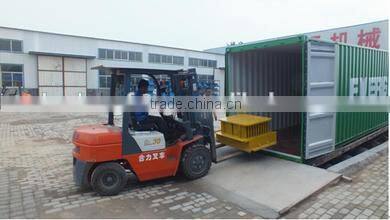

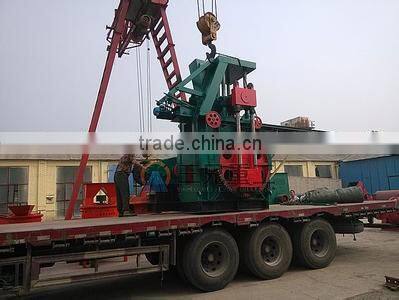

8. Brick making Machine ready to go overseas:

9.Our service:

Dong fang Delivery time: within 20 days after received your 30% TT down payment.

Payment: TT or LC

Warranty: One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).

We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.

 If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
