Help CenterHeavy Duty Semi-automatic Vertical Milling Machine With Swivel Head
Related Products
-
Vertical Knee-Type Milling Machine X5025/X5028US$ 5,400 - 5,800MOQ: 1 Set -
XQ6432C Universal Swivel Head Milling Machine With Digital Readout Quality ChoiceUS$ 5,000 - 8,000MOQ: 1 Set
-
X5032 Metal Vertical Small Milling MachinesUS$ 3,000 - 6,000MOQ: 1 Set
-
XL5030 Solid Quality Vertical Knee Style MillingmachineUS$ 1,000 - 10,000MOQ: 1 Set
-
XQ5032 Superior Performance Light Mills MachinesUS$ 1,000 - 5,000MOQ: 1 Set
Specifications
1. Get the ISO9001:2008 Certification2. High rigidity, capable of heavy load cutting
3. Large amount of cutting

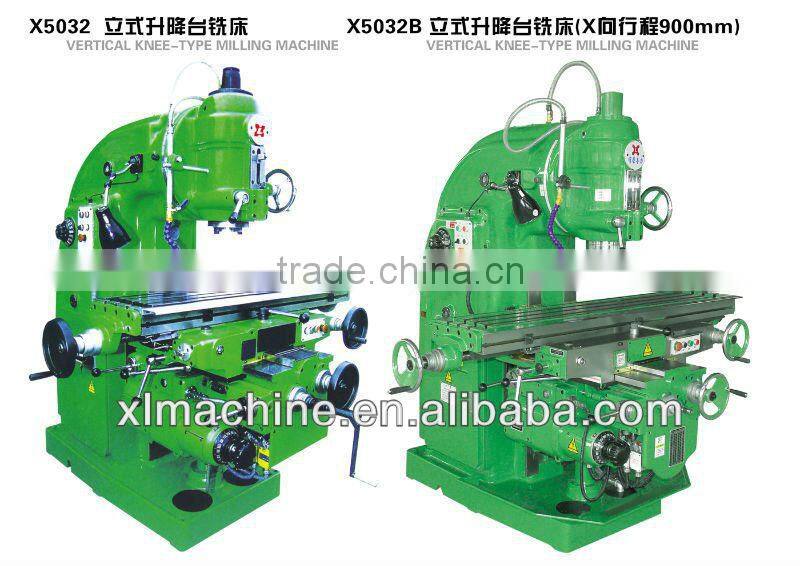

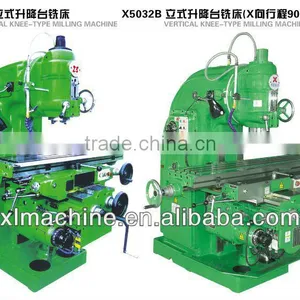

vertical knee type heavy duty milling machine
Specification |
Unit |
X5032 |
X5032B |
Distance between spindle nose and table |
mm |
60-410 |
60-410 |
Distance between spindle and column |
|
350 |
350 |
Spindle taper |
|
7:24, ISO50 |
7:24, ISO50 |
Spindle bore |
mm |
29 |
29 |
Spindle speed |
r/min |
18 steps, 30-1500 |
18 steps, 30-1500 |
Swivel angle of vertical milling head |
|
±45 |
±45 |
Spindle travel |
mm |
70 |
70 |
Table size |
mm |
320*1325 |
320*1600 |
Table travel(X/Y/Z) |
mm |
700/255/370 |
900/255/370/ |
Table feed (X/Y/Z) |
mm/min |
23.5-1180/23.5-1180/8-394 |
23.5-1180/23.5-1180/8-394 |
Rapid speed of table (X/Y/Z) |
mm |
2300/1540/770 |
2300/1540/770 |
T-slots(N/W/D) |
|
3/18/70 |
3/18/70 |
Maim motor power |
kw |
7.5 |
7.5 |
Rapid motor power |
kw |
1.5 |
1.5 |
Overall size |
mm |
2294*1770*1904 |
2294*2050*1904 |
Net weight(N.W/G.W) |
kg |
2900/3200 |
3000/3300 |
Product Description:
All our machines have passed the ISO9001 and CE Certificate.
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing.
Vertical milling machine is suitable for milling various metals. It can mill plane, inclined plane, groove, keyway and also can drill and bore with special equipment. The machine introduces ball screw drive and higher spindle speed. Every kind of vertical milling machine can be equipped with digital display.
Standard accessories:
1. ISO50 Milling chuck
2. ISO50 Cutter arbor
3. Inner hexagon spanner
4. Double head wrench
5. Single head spanner
6. Oil gun
7. Drawbar
