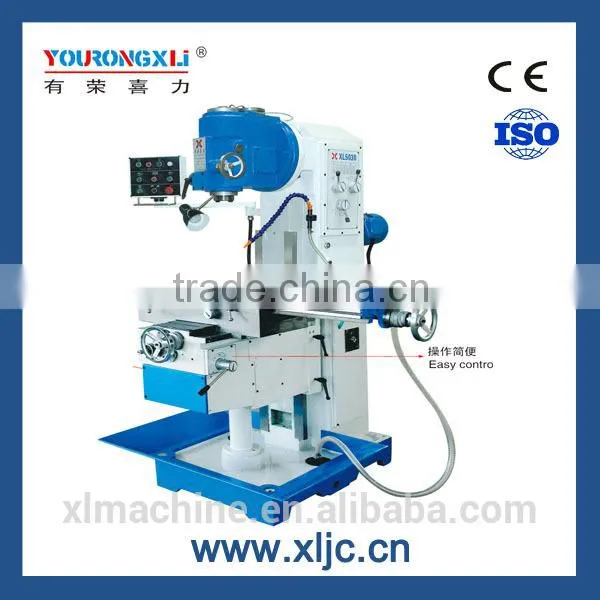

XL5030 Solid Quality Vertical Knee Style Millingmachine

Name: XL5030 Solid Quality Vertical Knee Style Millingmachine
Brand: YOURONGXILI
SKU: 106422083

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XL5030

Type Vertical

CNC or Not Normal

Voltage 380V

Power(W) 3000

Dimension(L*W*H) 1720*1680*1810

Weight 1500KG

Certification ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Driven by servo motor
2. Table automatic feed on X,Y,Z
3. Automatic rapid feed X,Y,Z

XL5030 solid quality vertical knee style millingmachine

Specification	Unit	XL5030	XL5030A
Table size	mm	1270X300	1370X300
Table Travel (X/Y/Z)	mm	720/300/400	820/300/400
Distance from spindle nose to work surface	mm	35-435
Spindle hole taper	---	7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12 steps 35-1500
Stroke of spindle quill	mm	70
Distance between spindle axis and column guideway	mm	285
Swivel angle of Vertical milling head	---	±30°
Main motor power	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720X1680X1810	1820X1680X1810
Net weight	kg	1500	1550
