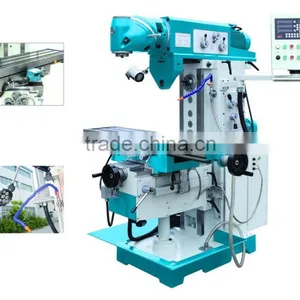

XQ6432C Universal Swivel Head Milling Machine with digital readout
1. This machine comes with multifunctional use, including a fully adjustable mill head allowing the use of all angles and positions as well as a X axis travel of 1000mm
2. Rapid feed and 8 feeds in all axis, driven by servomotor
3. Horizontal spindle widens the range of applications significantly, gear unit allows for speed adjustment
4. Universal mill head features 2 rotating axis, adjustable to various angles
5. Tiltable milling table -45° to +45° increases range of applications significantly
6. The large rectangular guides at the Y and Z axis guarantees an increase in stability
Specifications |
Unit |
XQ6432 |
XQ6432A |
XQ6432B |
XQ6432C |
||
Table size |
mm |
1270*320 |
1370*320 |
1270*320 |
1370*320 |
||
T-slots(NO./width/pitch) |
mm |
3*14*80 |
|||||
Max table travel - X/Y/Z |
mm |
720/300/400 |
820/300/400 |
900/380/400 |
1000/380/400 |
||
Spindle taper |
- |
7:24 ISO40 |
|||||
Max rotary angle of table |
|
- |
|||||
Distance between spindle center line and table surface |
mm |
75-475 |
|||||
Distance between spindle nose and table surface |
mm |
260-660 |
|||||
Distance from horizontal spindle center line to arm surface |
mm |
180 |
|||||
Spindle speed range |
r.p.m |
(V)11 steps 45-1660; (H)12 steps 35-1500 |
|||||
Arm travel |
mm |
400 |
|||||
Table feed(X/Y/Z) |
mm/min |
No finite |
|||||
Table rapid speed |
|
1000/1000/750 |
|||||
Main motor power |
Kw |
3 |
|||||
Torque of X/Y/Z axis AC servo motor |
Nm |
10 |
|||||
Cooling pump motor power |
W |
40 |
|||||
Flow of cooling pump |
L/m |
12 |
|||||
Overall size |
mm |
1720*1680*1860 |
1820*1680*1860 |
1720*1680*1860 |
1820*1680*1860 |
||
Net weight |
Kg |
1875 |
1925 |
1925 |
1975 |
||

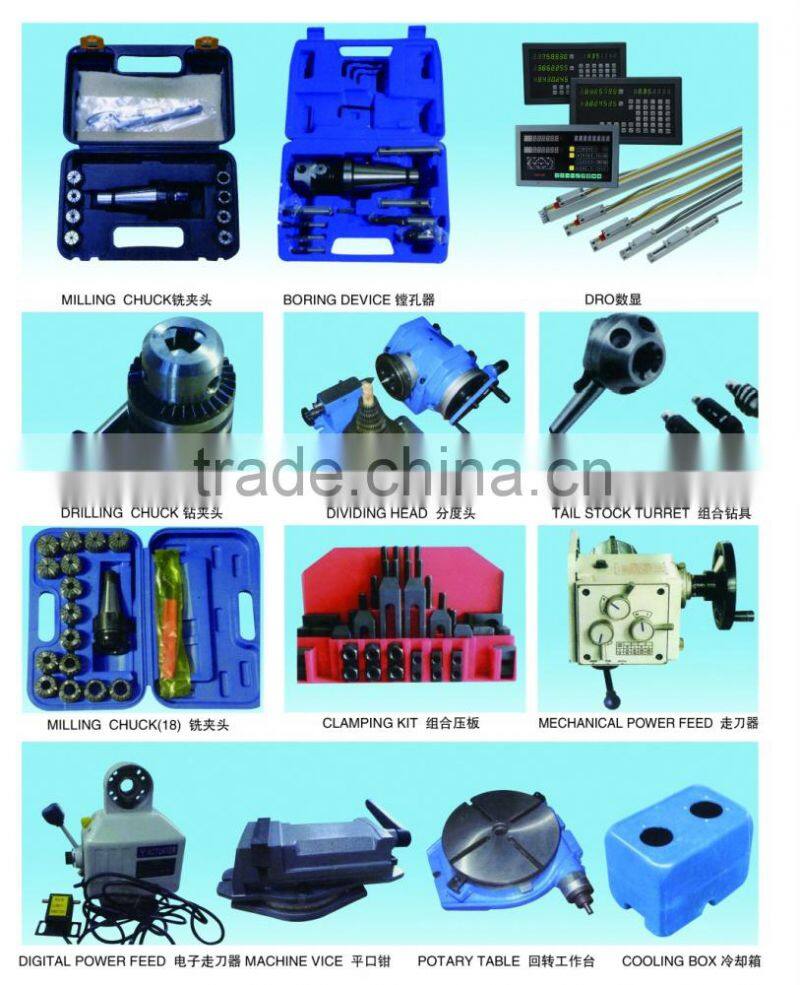

Rotary table can be ordered at special request
Model |
Table size |
Max table travel - X/Y/Z |
Max rotary angle of table |
Distance between spindle center line and table surface |
Distance between spindle nose and table surface |
XQ6432W |
1270*320 |
720/300/400 |
±45° |
35-435 |
220-620 |
XQ6432AW |
1370*320 |
820/300/400 |
|||
XQ6432BW |
1270*320 |
900/380/400 |
|||
XQ6432CW |
1370*320 |
1000/380/400 |
Plywood Case and Steel Pallet
