Help CenterX5032 Metal Vertical Small Milling Machines
Related Products
-
XL5030 Solid Quality Vertical Knee Style MillingmachineUS$ 1,000 - 10,000MOQ: 1 Set -
XQ5032 Superior Performance Light Mills MachinesUS$ 1,000 - 5,000MOQ: 1 Set
-
XL5032 Creative Servo Motor Driven Machine MillingUS$ 1,000 - 10,000MOQ: 1 Set
-
XL5030 AC Servo Motor Milling Machine With Lift TableUS$ 1,000 - 10,000MOQ: 1 Set
-
XL5032CL Hot Sale High Precision Milling Machine With Automatic Feed TableUS$ 1,000 - 10,000MOQ: 1 Set
Specifications
metal vertical milling machine1. Pass the ISO9001:2008 Certificate
2. High rigidity, capable of heavy load cutting

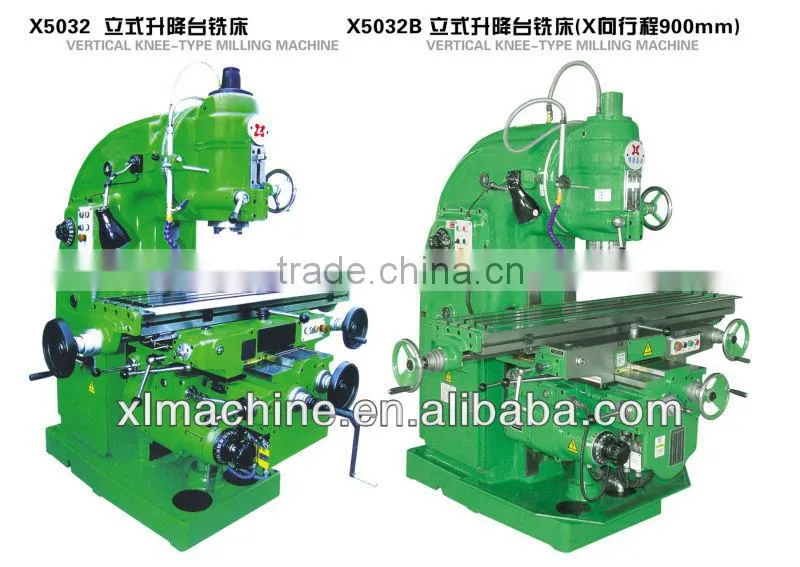

X5032 metal vertical small milling machines
Specification |
Unit |
X5032 |
X5032B |
X5032H |
X5032BH |
Table size |
mm |
320X1325 |
320X1600 |
320X1325 |
320X1600 |
T-slots(NO./Width/Pitch) |
|
3/18/70 |
|||
Longitudinal travel (manual/auto) |
mm |
700/680 |
900/880 |
700/680 |
900/880 |
Cross travel (manual/auto) |
mm |
255/240 |
|||
Vertical travel (manual/auto) |
mm |
370/350 |
460/440 |
||
Rapid feed speed X/Y/Z |
mm/min |
2300/1540/770 |
|||
Spindle bore diameter |
mm |
29 |
|||
Spindle taper |
|
7:24 ISO50 |
|||
Spindle speed range |
r/min |
30-1500 |
|||
Spindle speed step |
steps |
18steps |
|||
Stroke of spindle quill |
mm |
70 |
|||
Max.swivel angle of vertical milling head |
|
±45° |
|||
Distance between spindle nose and table surface |
mm |
30-400 |
30-490 |
||
Distance between spindle axis and column guideway |
mm |
350 |
|||
Feed motor power |
kw |
1.5 |
|||
Main motor Power |
kw |
7.5 |
|||
Overall size(L×W×H) |
mm |
2294×1770×1904 |
2294×2050×1904 |
2294×1770×2084 |
2294×2050×2084 |
Net weight |
kg |
2900/3200 |
3000/3300 |
3100/3400 |
|
Product Description:
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing.
Vertical milling machine is suitable for milling various metals. It can mill plane, inclined plane, groove, keyway and also can drill and bore with special equipment. The machine introduces ball screw drive and higher spindle speed. Every kind of vertical milling machine can be equipped with digital display.
Standard accessories:
1. ISO50 Milling chuck
2. ISO50 Cutter arbor
3. Inner hexagon spanner
4. Double head wrench
5. Single head spanner
6. Oil gun
7. Drawbar
