Xl6332 Milling Machinery Equipment

Name: Xl6332 Milling Machinery Equipment
Brand: YOURONGXILI
SKU: 106420577
Availability: InStock

US$ 5,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number xl6332

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 5.5kw

Dimension(L*W*H) 1800x2100x2500

Weight 2660kg

Certification CE ISO

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

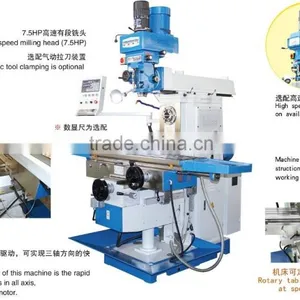

XL6332 Milling Machinery Equipment

Product Description

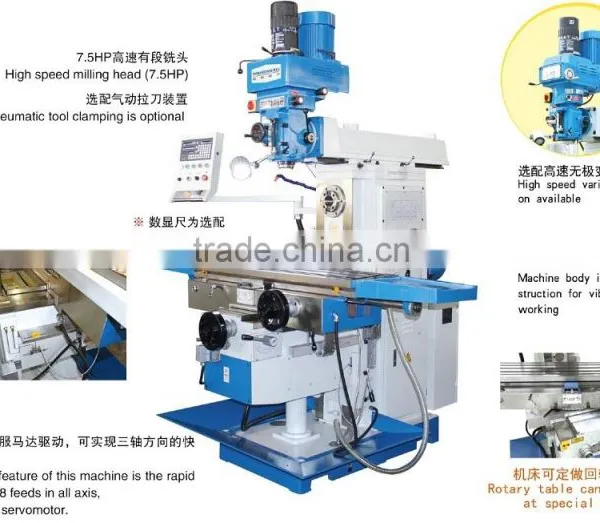

1. Universal milling machine featuring a moveable arm and big clamping area

2. Big dimensioned guidings in all axis guarantees absolute precision and stability.

3. Rapid feed and 8 feeds in all axis, driven by servomotor

4. Mill table tilts from -45° to +45°, table adjustment in X axis via handwheel on the front side

5. Tiltable spindle head from -90° to +90° allows for various operations

6. The machine is serially equipped with an automatic spindle feed

Specifications	Unit	XL6332	XL6332C	XL6332CL
Table size	mm	1325×320		1600×320
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed. (X/Y/Z)	mm/min	30-750/20-500/15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
Spindle taper		7:24 ISO50 (H) 7:24 ISO40 (V)
Stroke of spindle quill	mm	127 (V)
Distance between spindle nose and table surface	mm	200-660	200-650
Distance between horizontal spindle center line and table surface	mm	20-480	20-470
Distance between horizontal spindle center line and arm surface	mm	245
Spindle speed range	r.p.m	16steps 60-1800 (H) 16steps 65~4660 (V)
T-slots(NO./width/pitch)	mm	3/18/70
Arm travel	mm	550
Main motor power	Kw	5.5 (H) 3.7 (V)
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1800×2100×2500	2245×2100×2500	2520×2100×2500
Net weight	kg	2660	2730	2800

Rotary table can be ordered at special request

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance between spindle center line and table surface
XL6332W	1325×360	750/320/400	±45°	20-420
XL6332CW	1325×360	1100/320/400
XL6332CLW	1600×360	1300/320/400
