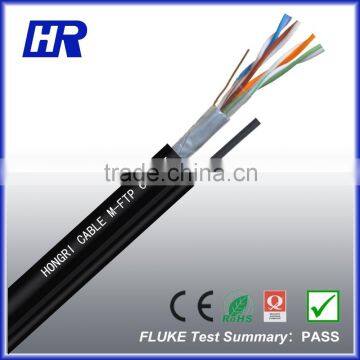

cat.5e ftp cable 100%cu messenger

FOB Price

USD $50 - $65 / Box

100 Boxes(Min.Order)

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Hongri/OEM	Model Number:	Cat5e
Number of Conductors:	8

Item	M-DC5005EF04	Description	M-FTP CAT5E 4×2×0.50CU 305M/Drum
Standard	EIA/TIA568B,ISO/IEC11801,YD/T1019
Application	ISDN,10Base-T,1000Base-T4,100Base-TX
Marking	M-FTP CAT.5E 4P 24AWG EIA/TIA568B ISO/IEC11801 ***M

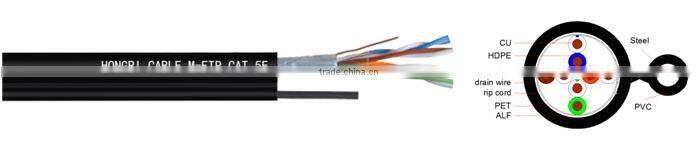

Construction
Conductor	Solid Bare Copper	Insulation Colors	Blue-White/Blue	Messenger Dia.	2.5±0.2mm
Conductor Dia.	0.50±0.01mm		Orange-White/Orange	Jacket	PVC
Insulation	HDPE		Green-White/Green	Jacket Dia.	5.7±0.3mm
Insulation Dia.	1.00±0.02mm		Brown-White/Brown	Jacket Color	Black
Polyester	Yes	Shield	ALF	Jacket Thickness	0.55±0.2mm
Drain wire	0.40 CU or CCA	Steel Dia.	1.15mm	Packing	Drum,pallet
Electrical Characteristics
Frequency(MHz)	ATT (≤dB/100m)	NEXT (≥dB)	ELFEXT (≥dB)	RL (≥dB)	PS NEXT (≥dB)
1	2.0	65.3	63.8	20.0	62.3
4	4.1	56.3	51.7	23.0	53.3
8	5.8	51.8	45.7	24.5	48.8
10	6.5	50.3	43.8	25.0	47.3
16	8.2	47.3	39.7	25.0	44.3
20	9.3	45.8	37.7	25.0	42.8
25	10.4	44.3	35.8	24.3	41.3
31.25	11.7	42.9	33.9	23.6	39.9
62.5	17.0	38.4	27.8	21.5	35.4
100	22.0	35.3	23.8	20.1	32.3
Impedance (1to100MHz)	100±15 Ohm	Conductor DC Resistance 20℃	≤94(ohms/km)	Prop. Delay	≤555ns
Capacitance 1kHz	56pF/km	Resistance Unbalance	≤3%	Delay shew	≤45ns
Capacitance unbalance	100pF/100m	Insulation Resistance	5000MΩ.KM	NVP	69%
