Help CenterCAT7 S/FTP CABLE
US$ 200 - 300
MOQ: 100 Boxes
Key Specifications
Get Latest Price
Brand Name:
Hongri/OEM
Model Number:
CAT7
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Hongri/OEM
Model Number
CAT7
Place of Origin
Zhejiang, China
Product Description

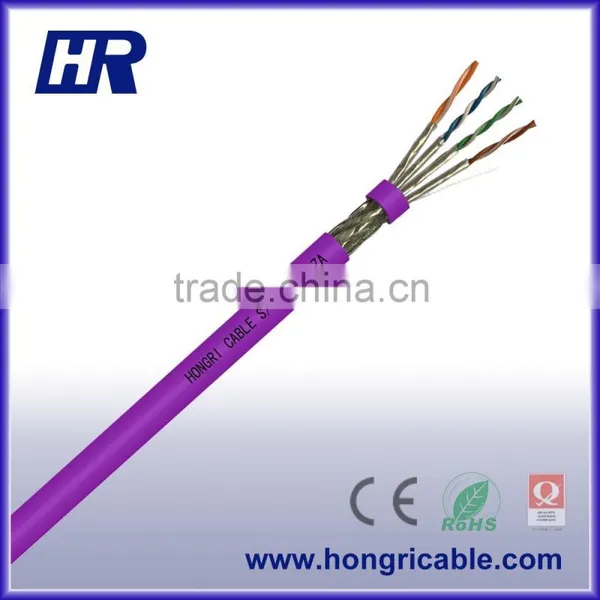

| Item | DC5707S/F04 | Description | S/FTP CAT7 4×2×0.57CU 305M/DRUM | ||
| Standard | IEC61156-5,ISO/IEC11801,ANSI/TIA568-C.2,YD/T1019 | ||||
| Application | structured premises cabling,VoIP,Token,ISDN,10Base-T,100Base-T,1000Base-T,10G Base-t(IEEE 802.3), TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s,(IEEE 802.5),TR-16 ACTIVE and Passive | ||||
| Marking | S/FTP CAT.7 4P 23AWG IEC61156-5 ISO/IEC11801 ***M | ||||
| Construction | |||||
| Conductor | Solid Bare Copper | Insulation Colors | White/Blue,Blue | Rip Cord | Yes |
| Conductor Dia. | 0.57±0.01mm | White/Orange,Orange | Jacket | LSZH or PVC | |
| Insulation | FPE | White/Green,Green | Jacket Dia. | 8.2±0.3mm | |
| Insulation Dia. | 1.35±0.05mm | White/Brown,Brown | Jacket Color | Purple | |
| Shield | Individual pair | Braid Dia. | 0.12mm | Jacket Thickness | 0.55±0.1mm |
| Braid | Tinned Copper | Coverage | ≥40% | Packing | Drum |
| Electrical Characteristics | |||||
| Frequency(MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | RL (≥dB) | PS NEXT (≥dB) |
| 1 | 2.0 | 78.0 | 78 | 20.0 | 75.0 |
| 4 | 3.7 | 78.0 | 78 | 23.0 | 75.0 |
| 8 | 5.2 | 78.0 | 77.2 | 24.5 | 75.0 |
| 10 | 5.9 | 78.0 | 75.3 | 25.0 | 75.0 |
| 16 | 7.4 | 78.0 | 71.2 | 25.0 | 75.0 |
| 20 | 8.3 | 78.0 | 69.3 | 25.0 | 75.0 |
| 25 | 9.3 | 78.0 | 67.3 | 24.3 | 75.0 |
| 31.25 | 10.4 | 78.0 | 65.4 | 23.6 | 75.0 |
| 62.5 | 14.9 | 75.5 | 59.4 | 21.5 | 72.5 |
| 100 | 19.0 | 72.4 | 55.3 | 20.1 | 69.4 |
| 200 | 27.5 | 67.9 | 49.3 | 18.0 | 64.9 |
| 250 | 31.0 | 66.4 | 47.3 | 17.3 | 63.4 |
| 300 | 34.2 | 65.2 | 45.8 | 17.3 | 62.2 |
| 400 | 40.0 | 63.4 | 43.3 | 17.3 | 60.4 |
| 500 | 45.3 | 61.9 | 41.3 | 17.3 | 58.9 |
| 600 | 50.1 | 60.7 | 39.7 | 17.3 | 57.7 |
| Impedance (4-100MHz) (100-600MHz) (600-1000MHz) | 100±15 Ohm 100±32 Ohm 100±43 Ohm | Conductor DC Resistance 20℃ | ≤95(ohms/km) | Capacitance unbalance | ≤160pF/100m |
| Resistance Unbalance | ≤2% | Prop. Delay | ≤555ns | Delay shew | ≤25ns |
Product Process
Packaging & Shipping
Certification
Company Information
Our Services
1. Professional Cable Manufacturer: Specializing in the production Lan cable, Alarm, cable, etc.
2. We provide good products, the factory price, good service.
3. Fast response: All the requirements we will reply within 24 hours.
4. Fast delivery.
5. We provide OEM,ODM service.
