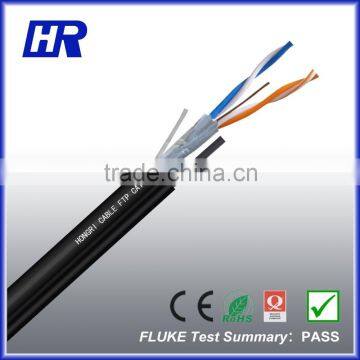

Cat.5e Ftp Cable cu Outdoor 2pairs Messenger
US$ 35 - 40
MOQ: 100 Boxes
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hongri/OEM
Model Number:
Cat5e
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cat.5e Ftp Cable CU 2pairsUS$ 25 - 30MOQ: 100 Boxes -
Cat.5e Ftp Cable cu Double Sheath MessengerUS$ 56 - 70MOQ: 100 Boxes
-
Cat.5e Ftp Cable cu Double SheathUS$ 48 - 63MOQ: 100 Boxes
-
Cat.5e Ftp cu Messenger OutdoorUS$ 51 - 66MOQ: 100 Boxes
-
Cat.5e Ftp Cable 100%cu MessengerUS$ 50 - 65MOQ: 100 Boxes
Place of Origin
Zhejiang, China
Brand Name
Hongri/OEM
Model Number
Cat5e
Number of Conductors
4
Product Description
| Item | M-ODC5005EF02 | Description | M-FTP CAT5E 2×2×0.50CU OUTDOOR 305M/BOX | ||
| Standard | EIA/TIA568B,ISO/IEC11801,YD/T1019 | ||||
| Application | ISDN,10Base-T,1000Base-T4,100Base-TX | ||||
| Marking | M-FTP CAT.5E 2P 24AWG OUTDOOR EIA/TIA568B ISO/IEC11801 ***M | ||||

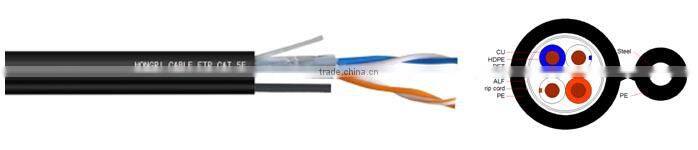

| Construction | |||||
| Conductor | Solid Bare Copper | Insulation Colors | Blue-White/Blue | Twisting Lay Length | ≤23mm |
| Conductor Dia. | 0.50±0.01mm | Orange-White/Orange | Jacket | PE | |
| Insulation | HDPE | Shield | ALF | Jacket Dia. | 5.0±0.3mm |
| Insulation Dia. | 1.00±0.02mm | Coverage | 100% | Jacket Color | Black |
| Polyester | Yes | Steel Dia. | 1.15mm | Jacket Thickness | 0.55±0.2mm |
| Drain wire | 0.40 CU or CCA | Messenger Dia. | 2.5±0.2mm | Packing | Carton,pallet |
| Electrical Characteristics | |||||
| Frequency(MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | RL (≥dB) | PS NEXT (≥dB) |
| 1 | 2.0 | 65.3 | 63.8 | 20.0 | 62.3 |
| 4 | 4.1 | 56.3 | 51.7 | 23.0 | 53.3 |
| 8 | 5.8 | 51.8 | 45.7 | 24.5 | 48.8 |
| 10 | 6.5 | 50.3 | 43.8 | 25.0 | 47.3 |
| 16 | 8.2 | 47.3 | 39.7 | 25.0 | 44.3 |
| 20 | 9.3 | 45.8 | 37.7 | 25.0 | 42.8 |
| 25 | 10.4 | 44.3 | 35.8 | 24.3 | 41.3 |
| 31.25 | 11.7 | 42.9 | 33.9 | 23.6 | 39.9 |
| 62.5 | 17.0 | 38.4 | 27.8 | 21.5 | 35.4 |
| 100 | 22.0 | 35.3 | 23.8 | 20.1 | 32.3 |
| Impedance (1to100MHz) | 100±15 Ohm | Conductor DC Resistance 20℃ | ≤94(ohms/km) | Prop. Delay | ≤555ns |
| Capacitance 1kHz | 56pF/km | Resistance Unbalance | ≤3% | Delay shew | ≤45ns |
| Capacitance unbalance | 100pF/100m | Insulation Resistance | 5000MΩ.KM | NVP | 69% |

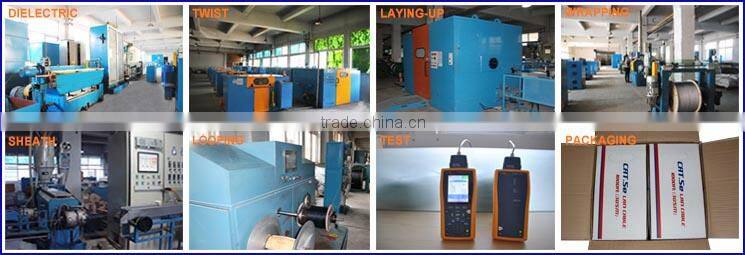

Product Process
Packaging & Shipping

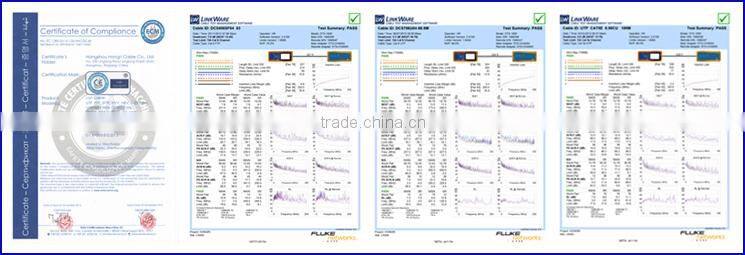

Certification
