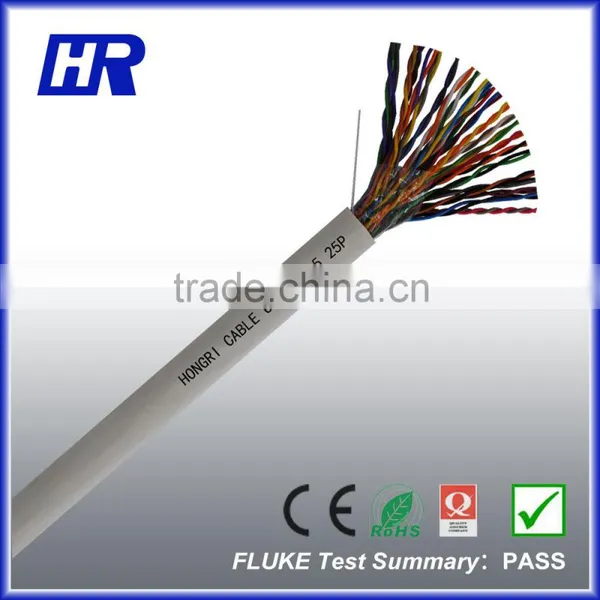

Cat.5 Utp Lan Cable bc 25pairs
US$ 235 - 300
MOQ: 100 Boxes
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hongri/OEM
Model Number:
Cat5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cat.5e Ftp Lan Cable cu 5+5pairsUS$ 130 - 200MOQ: 100 Boxes -
Cat.6 Sftp Lan Cable UCCA PVCUS$ 41 - 50MOQ: 100 Boxes
-
Cat.6 Sftp Lan Cable UCCA LSZH JacketUS$ 40 - 50MOQ: 100 Boxes
-
Cat.6 Ftp Lan Cable Ucca PvcUS$ 28 - 37MOQ: 100 Boxes
-
Cat.6 Ftp Lan Cable CCA Double SheathUS$ 40 - 50MOQ: 100 Boxes
Place of Origin
Zhejiang, China
Brand Name
Hongri/OEM
Model Number
Cat5
Product Description
| Item | DC5005U25 | Description | UTP CAT.5 25×2×0.50CU 305M/Drum | ||
| Standard | EIA/TIA568B,ISO/IEC11801,YD/T1019 | ||||
| Application | 10Base-T,100Base-T4,Telephone,Voice Wiring | ||||
| Marking | UTP CAT.5 25P 24AWG EIA/TIA568B ISO/IEC11801 ***M | ||||
| Construction | |||||
| Conductor | Solid Bare Copper | Insulation Dia. | 0.89±0.02mm | Jacket Color | Grey |
| Conductor Dia. | 0.50±0.01mm | Jacket | PVC | Jacket Thickness | 1.0±0.2mm |
| Insulation | HDPE | Jacket Dia. | 12.0±0.3mm | Packing | Wooden drum |
| Insulation Colors | White/Blue,Blue White/Orange,Orange White/Green,Green White/Brown,Brown White/Grey,Grey | ||||
| Red/Blue,Blue Red/Orange,Orange Red/Green,Green Red/Brown,Brown Red/Grey,Grey | |||||
| Black/Blue,Blue Black/Orange,Orange Black/Green,Green Black/Brown,Brown Black/Grey,Grey | |||||
| Yellow/Blue,Blue Yellow/Orange,Orange Yellow/Green,Green Yellow/Brown,Brown Yellow/Grey,Grey | |||||
| Purple/Blue,Blue Purple/Orange,Orange Purple/Green,Green Purple/Brown,Brown Purple/Grey,Grey | |||||
| Electrical Characteristics | |||||
| Frequency(MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | RL (≥dB) | PS NEXT (≥dB) |
| 1 | 2.0 | 62.3 | 60.8 | 17.0 | 62.3 |
| 4 | 4.1 | 53.3 | 48.7 | 18.8 | 53.3 |
| 8 | 5.8 | 48.8 | 42.7 | 19.7 | 48.8 |
| 10 | 6.5 | 47.3 | 40.8 | 20.0 | 47.3 |
| 16 | 8.2 | 44.2 | 36.7 | 20.0 | 44.3 |
| 20 | 9.3 | 42.8 | 34.7 | 20.0 | 42.8 |
| 25 | 10.4 | 41.3 | 32.8 | 19.3 | 41.3 |
| 31.25 | 11.7 | 39.9 | 30.9 | 18.6 | 39.9 |
| 62.5 | 17.0 | 35.4 | 24.8 | 16.5 | 35.4 |
| 100 | 22.0 | 32.3 | 20.8 | 15.1 | 32.3 |
| Impedance (1to100MHz) | 100±15 Ohm | Conductor DC Resistance 20℃ | ≤94(ohms/km) | Prop. Delay | ≤555ns |
| Capacitance 1kHz | 56pF/km | Resistance Unbalance | ≤3% | Delay shew | ≤45ns |
| Capacitance unbalance | 100pF/100m | Insulation Resistance | 5000MΩ.KM | NVP | 69% |
