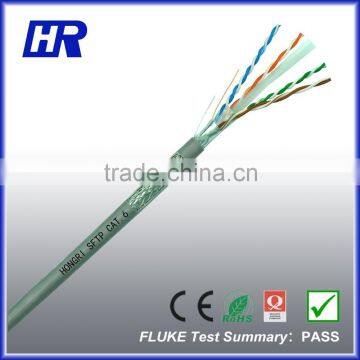

cat.6 sftp lan cable UCCA PVC

Name: cat.6 sftp lan cable UCCA PVC
Brand: Hongri/OEM
Price: USD $41 - 50 / Box

FOB Price

USD $41 - $50 / Box

100 Boxes(Min.Order)

Product Details

Brand Name:

Hongri/OEM

Model Number:

cat.6

Place of Origin:

Zhejiang, China

Order information
HR part number	Conductor Dia.	Conductor	Jacket Dia.	Conductor DC Resistance 20℃	Packaging
UA5706SF04-V	0.570±0.01	UCCA	7.2±0.2	≤118(ohms/km)	Plastic trayt+carton Drum+carton Drum+pallet
UA5406SF04-V	0.540±0.01	UCCA	7.2±0.2	≤131(ohms/km)
UA5106SF04-V	0.510±0.01	UCCA	6.6±0.2	≤147(ohms/km)

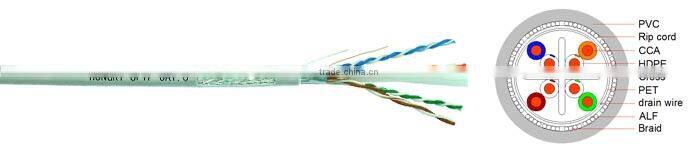

Construction
Conductor	UCCA	Cross	Yes	Braid number	96,80,64 or 48
Insulation	HDPE	Polyester	Yes	Rip Cord	Yes
Insulation Colors	White/Blue,Blue	Drain wire	0.40CU,TC,CCA	Jacket	PVC
	White/Orange,Orange	Shield	ALF	Jacket Color	Grey,blue…
	White/Green,Green	Braid	Almg,TC or CCA	Jacket Thickness	0.55±0.2mm
	White/Brown,Brown	Braid Dia.	0.12mm	Packaging	as required
Marking	SFTP CAT.6 4P 23AWG EIA/TIA568B ISO/IEC11801 ***M
Standard:EIA/TIA568B,ISO/IEC11801,YD/T1019			Application:ISDN,10Base-T,1000Base-T4,100Base-TX
Electrical Characteristics
Impedance 1to250MHz	100±15 Ohm	Resistance Unbalance	≤3%	Insulation Resistance	5000MΩ.KM
Capacitance 1kHz	56pF/km	Prop. Delay	≤555ns	Delay shew	≤45ns
Frequency(MHz)	ATT (≤dB/100m)	NEXT (≥dB)	ELFEXT (≥dB)	RL (≥dB)	PS NEXT (≥dB)
1	2.0	74.3	67.8	20.0	72.3
4	3.8	65.3	55.8	23.0	63.3
8	5.3	60.8	49.7	24.5	58.8
10	6.0	59.3	47.8	25.0	57.3
16	7.6	56.2	43.7	25.0	54.2
20	8.5	54.8	41.8	25.0	52.8
25	9.5	53.3	39.8	24.3	51.3
31.25	10.7	51.9	37.9	23.6	49.9
62.5	15.4	47.4	31.9	21.5	45.4
100	19.8	44.3	27.8	20.1	42.3
200	29.0	39.8	21.8	18.0	37.8
250	32.8	38.3	19.8	17.3	36.3

Product Process

Packaging & Shipping

Certificates & Test

Hangzhou Hongri Cable Co., Ltd.: Contact nameHenry Song; Phone0086-571-61102828; AddressNo. 250, Linglong Street, Linglong Subdistrict, Lin'an
