Home > Products > briquette machine > Coal ball press machine for charcoal making plant

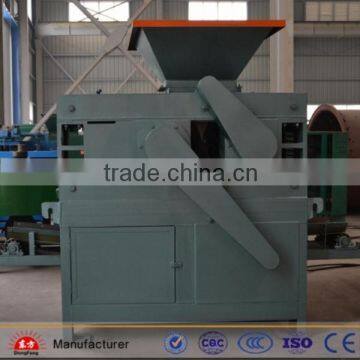

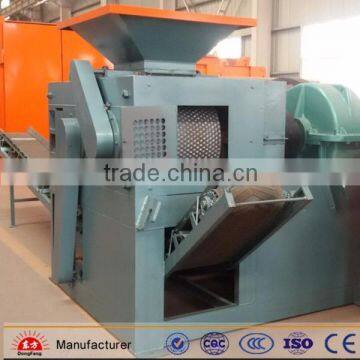

Coal ball press machine for charcoal making plant
- 100 Set / Sets per Month
- Qingdao port Shanghai port or othe China main ports
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, ball press machine | Motor Type: | AC Motor |
Power(W): | Based on different models | Capacity(t/h): | 1-30 | Place of Origin: | Henan, China |
Brand Name: | Dongfang coal ball press machine | Model Number: | WLBM Series | Dimension(L*W*H): | Based on different model |
Weight: | Based on different model | Certification: | ISO9001CE | Warranty: | 1 Year, 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Coal ball press machine for charcoal making plant
Introduction of coal ball press machine:
Briquette making machine can be used to press various powders such as coal powder, iron powder, coking coal, slag, oxidation iron sheet, carbon dust, gypsum, tailings, sludge, kaolin, active carbon and burnt powder, etc.
Pillow shape coal briquette machine applies to the industries such as refractory material, electric powder plant, metallurgy, chemical industry, energy, transportation, heating and other industries.
Raw materials of coal ball press machine:
Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.
High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
Features of coal ball press machine:
1. Small occupation;
2. High briquetting ratio and energy saving;
3. Simple installation and operation;
4. Easy maintenance;
Working Principle of coal ball press machine:
Pressure ball machine is powered by electromagnetic spped motor, then via V-belt pulley, reducer and coupling transmit to main shaft. There is also a pair of open gear ensure two roller shaft synchronous movement, in which the wedges withstand the passive bearings. The material is sent into the hopper uniformly by quantitative feeding equipment, and then evenly into the middle of the roller. Then the roller does reverse constant velocity and make the ball into off running state. When the ball material go through the roller center line, the ball drops down.
Technical Parameters of coal ball press machine:
Type | Capability(t/h) | Roll Diameter(mm) | Roller Surface Pressure (t/cm) | Roll Speed(r/min) | Power(Kw) | Reducer |
WLXM-290 | 1.5-2 | 290 | 1 | 15-17 | 5.5 | ZQ300 |
WLXM-360 | 2.5-3.5 | 360 | 1 | 15-17 | 7.5 | ZQ350 |
WLXM-400 | 4-5 | 400 | 1 | 15-17 | 11 | ZQ400 |
WLXM-430 | 5-7 | 430 | 1 | 15-17 | 11 | ZQ400 |
WLXM-500-1 | 6-8 | 500 | 1-2 | 15 | 15 | ZQ500 |
WLXM-500-2 | 8-10 | 500 | 1-2.5 | 15 | 22 | ZQ500 |
WLXM-650 | 10-15 | 650 | 1-2.5 | 15 | 30 | ZQ650 |
WLXM-750 | 15-20 | 750 | 1-2.5 | 13 | 30 | ZQ750 |
WLXM-850 | 25-30 | 850 | 1-2.5 | 13 | 37-45 | ZQ850 |
WLXM1000-1 | 35-40 | 1000 | 1-2.5 | 12 | 45-75 | ZSY-355 |
WLXM1000-2 | 35-45 | 1000 | 2-2.5 | 10 | 75-90 | ZSY-400 |
WLXM1200 | 45-50 | 1200 | 2-3 | 10 | 132 | ZSY-500 |
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable. |
Operation of coal ball press machine:
1. If your raw material is big block, you should choose a crusher.
2. If your raw material is with high moisture (higher than 12%), you should choose
a dryer. If you prefer to use dry powder type briquette machine, the moisture should
be less than 5%, also based on materials’ performance.
3. Generally, it is better to add some binder/adhesive into the raw material. If you pre
-fer to use dry powder type briquette machines, generally, no need binder.
4. About belt conveyor, you can buy from us, also can make by yourself. We would
like to supply the detail drawing of conveyor for you.
5. The final briquettes can be dried under the sun or through mesh belt dryer and chain
plate dryer.
Delivery Pictures :
About Our Company:
Henan Dongfang Group is a manufacturing factory with rich experiences more than 20 years. It covers more than 60,000 square meters,180 sets of main processing equipments,more than 1,000 employees. Our factory is specialized in many kinds of machines, such as briquetting machine, crusher machine, Ball mill, pellet machine,dryer machine equipments, heating sources and so on.
Our products are selling to many countires like Amercia, Colombia, Sri Lanka, Russia, Pakistan, Nigeria, Saudi ect. and get a very good reputation.
Choosing us is your best choice!
In order to saving your time, please send us the informations as bellow:
1. What's the raw material?
2. The moisture and size of raw material?
3. Capacity you need?
4. The shape and size of the final product you prefer?
Contract Us:
If you want to know more about us and our products,please contract us,and we'll
be very glad to serve you!
HENAN DONGFANG HEAVY MACHINERY CO.,LTD.
Skype: dfmachine01
Tel: +86-18317887657
website: http://hndongfang.en.china.cn/
Welcome to visit our factory~
