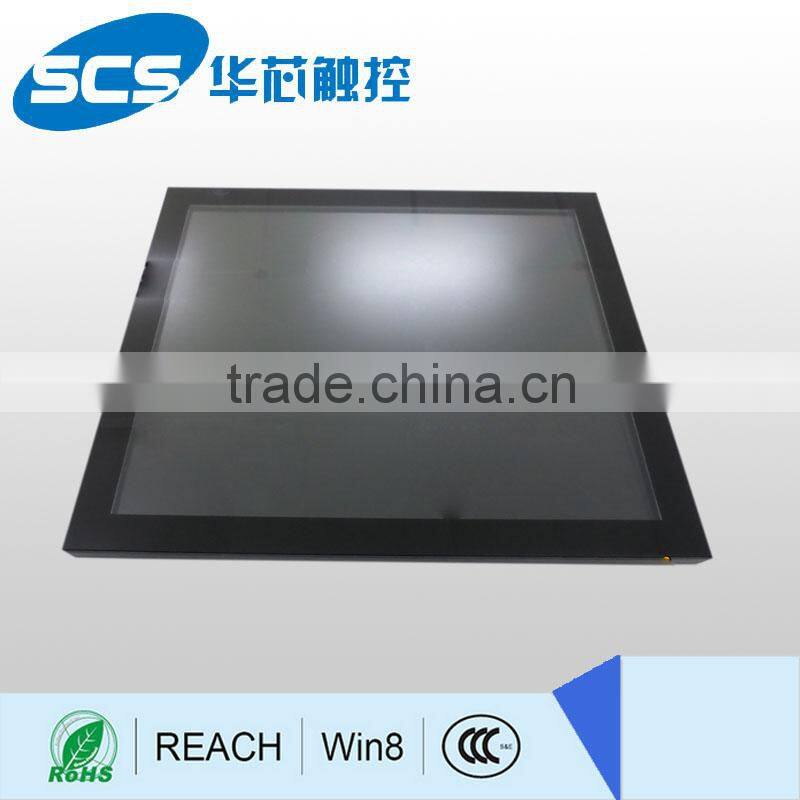

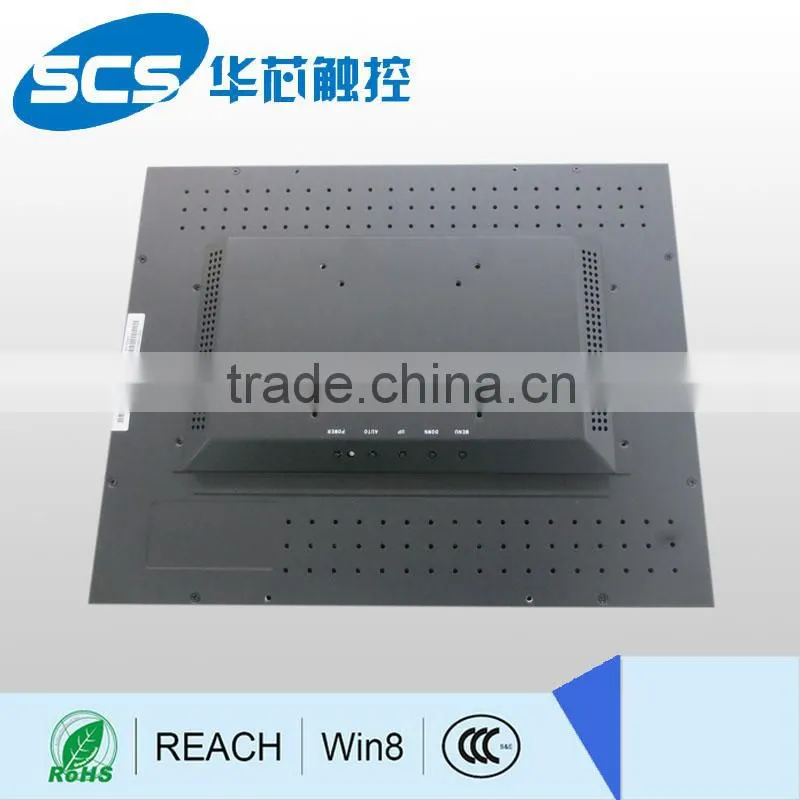

Help Center17 Inch Flatness Design Interactive Display With Wide Viewing Angles
Related Products
-
Wall Mounted Multi Touch Screen Kiosk With Highly Integrated Structure, Easy to AssembleUS$ 179 - 192MOQ: 1 Piece -
Outdoor Touch Screen Kiosk for Bank Atm With Waterproof and Anti-glare TreatmentUS$ 169 - 182MOQ: 1 Piece
-
PCAP Touch Monitor for Bank ATMUS$ 169 - 182MOQ: 1 Piece
-
19 Inch Touch Screen Monitor for Bank ATMUS$ 182 - 195MOQ: 1 Piece
-
17 Inch Touch Screen Display With Water-proof TreatmentUS$ 169 - 182MOQ: 1 Piece
Item |
Standard |
||
Content |
Remark |
||

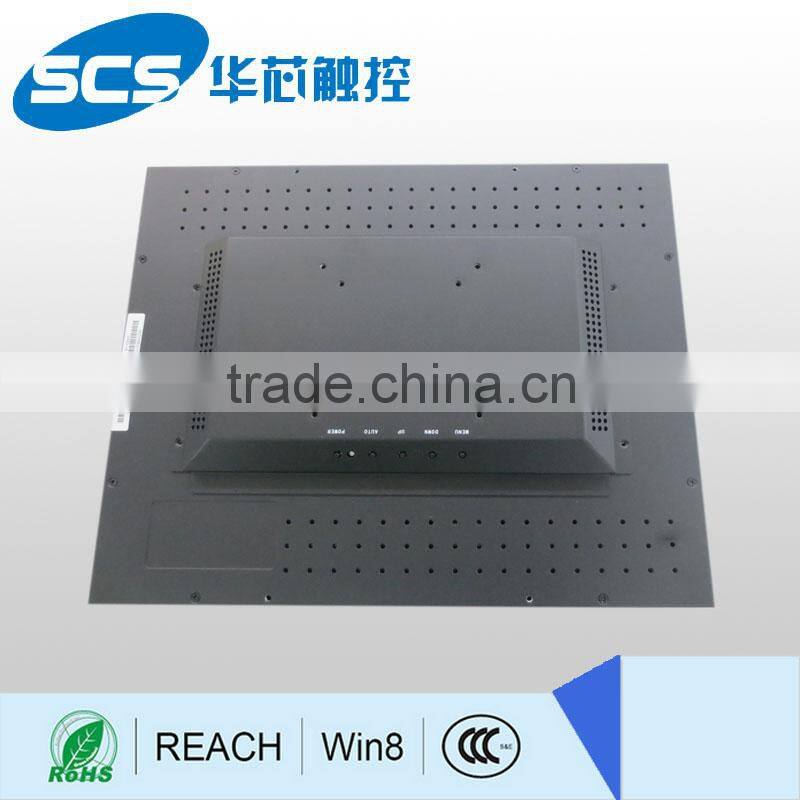

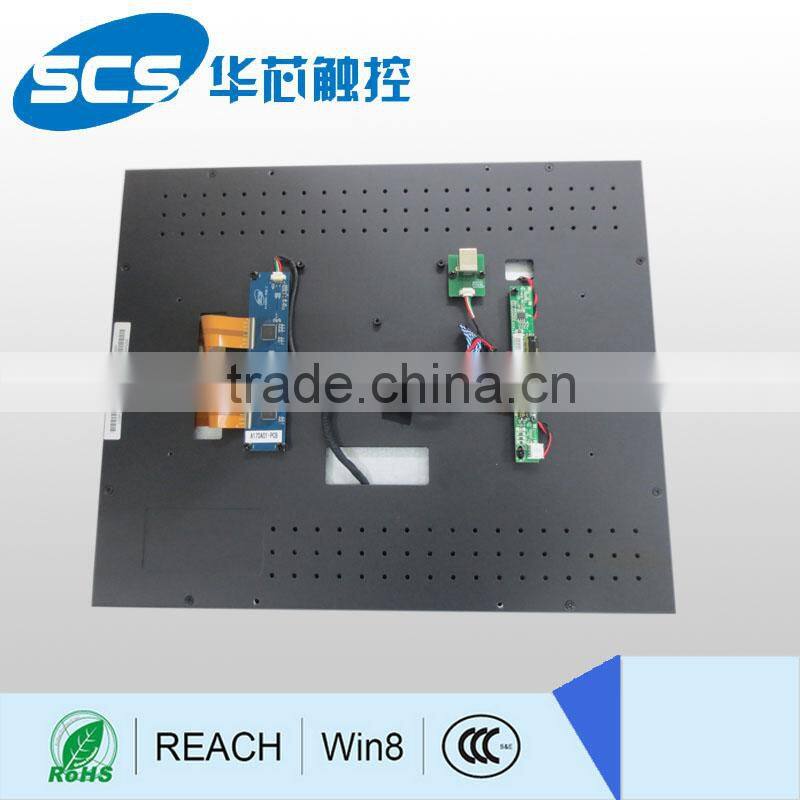

Open frame |
Size |
387.50mm x 356.30mm x 45.70mm |
Note1 |
Type |
Open frame with touch |
||
VA |
338.50mm x270.50mm |
Note1 |
|
Data interface |
USB (Type B) |
||
Video |
VGA& DVI (24+5) |
||
Power jack |
DC φ5.5/2.1mm |
||
Power Spec |
DC 12V/2A |
||
Power consume |
≤20W |
||
Supported OS |
Android / Windows XP/7/8/8.1 |
Note2 |
|
LCM |
LED size |
17'' |
|
View angle |
V:85/85 H:88/88 |
||
Resolution |
1280xR.G.Bx1024@60Hz |
||
Color |
16.7M |
||
AA |
338.50mm x270.50mm |
Note1 |
|
Luminance |
250Cd/m2 (Type) |
||
CR |
41.66736111 |
||
LCD Type |
TN |
||
Backlight type |
LED |
||
Touch panel |
TP size |
17'' |
|
TP type |
projective capacitance |
||
TP thickness |
1.8±0.3mm |
||
Frame color |
Black |
||
AA |
338.50mm x270.50mm |
Note1 |
|
Hardness |
7H |
||
Strength |
509g steel ball, 100cm |
Note3 |
|
Data interface |
USB |
Note2 |
|
Response time |
≤10ms |
||
Operation mode |
touch(finger/ passive stylus) |
||
Touch panel life time |
>1,000,000,000times |
||
Touch point |
10 points |
||
Report rate |
>100 points/sec |
||
Touch Panel BU, a subsidiary of Sinochip Semiconductors Co., Ltd. (SCS), a leading IC solution provider in China, was founded in Jinan Comprehensive Free Trade Zone by Jinan High-tech Zone administrative committee and SCS in 2013. SCS dedicates to R&D, manufacture and sales of TP and also provides integrated touch panel solution.

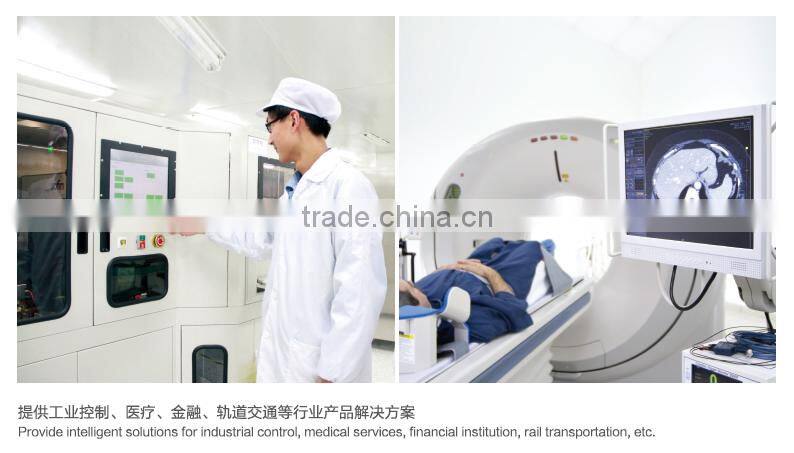

SCS owns the first large-size OGS TP production line in China and products sizes are from 10” to 28”. We have developed own innovative OGS hi-technologies and our products have been applied into financial self-service equipment, industrial computer, military products, medical terminal, vehicle electronics, information inquiry systems, panel controller and consumer electronics.
SCS has an outstanding team in the TP R&D, process, manufacture, quality control and customer service. We are committed to introduce high quality OGS TP products with cost advantage and also offer a whole TP turn-key solution for ODM and OEM. SCS has passed the certifications of ISO 9001, ISO 14001, IECQ QC 080000, and our products meet the standard of ROHS, REACH, Microsoft Windows and CCC.
SCS devotes to becoming the leading company of OGS TP solution supplier in China. We welcome all TP’s customers, solution deliverers, monitor suppliers, equipment vendors, open-frame suppliers and material suppliers to discuss cooperation. We sincerely look forward to developing Chinese TP industry together with all our partners.
