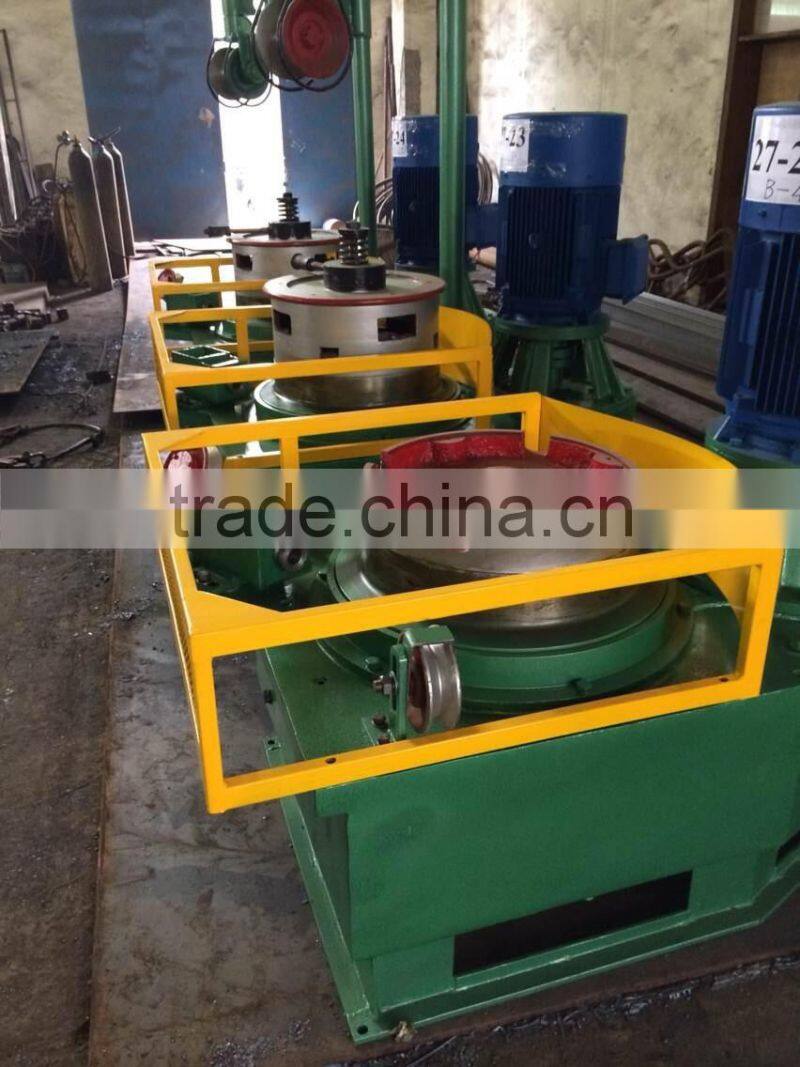

Machine Wire Drawing in Algeria Market
- shanghai
- T/T L/C Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | wandeshun | |
| Model Number | LW-1-560 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Inlet Diameter: 6.5mmOutlet Diameter: 2.0mm
Dimension(L*W*H): 1800*1260*1700
Model Number: LW-1-6/560
About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia,Uzbekistan.Iran Kenya, South Africa and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Main products:
Straight line drawing machine
Water tank wire drawing machine
Aluminium wire drawing machines
Vertical wire drawing machine

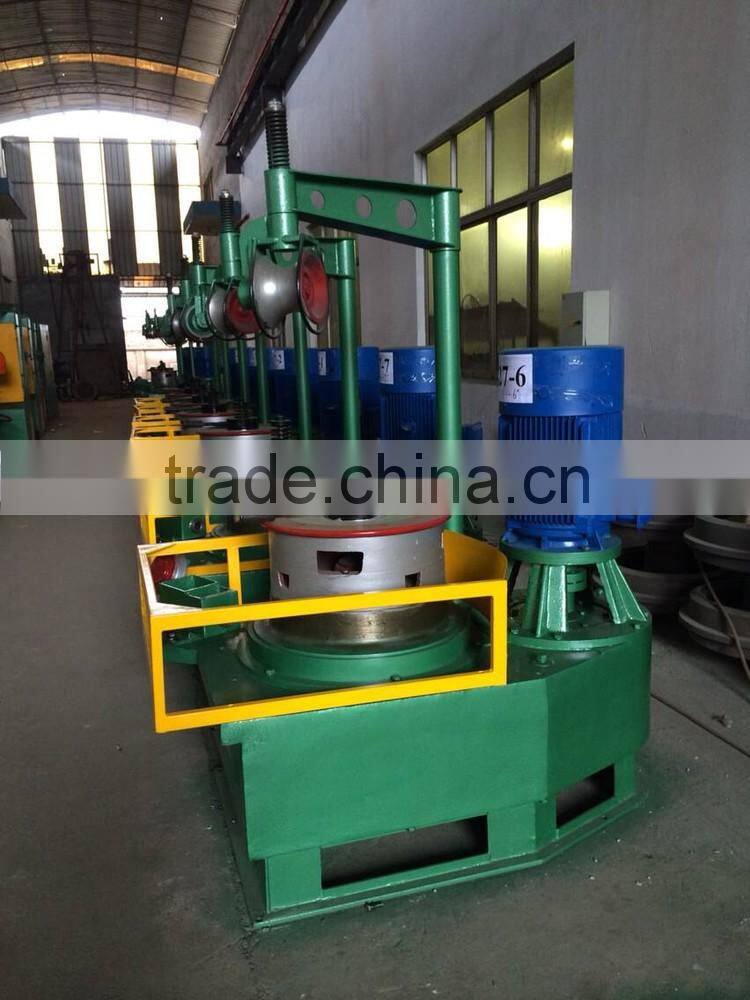

Pulley wire drawing machine
Pulley wire drawing machine is our star products
Specifications
WIRE DRAWING MACHNE FACTORY
FEEDING WIRE DIA.6.5MM
OUTLET WIRE DIA.2.0MM
WIRE DRAWING MACHNE FACTORY
OUR FACTORY MAKE WIRE DRAWING MACHINE WHICH CAN ONLY DRAW
LOW CARBON STEEL WIRE FROM 6.5MM TO 2.0MM.
IE. THE MAX. INLET WIRE DIA. 6.5MM
THE MIN. OUTLET WIRE DIA. 2.0MM
THE WHOLE PROCESS FROM FEEDING WIRE TO OUTLET WIRE CAN BE FINISHED
IN ONE TIME AND ONLY ONE PERSON CAN OPERATE.
SO IT IS HIGH EFFICIENCY AND VERY EASY OPERATION.
YOU CAN COME TO OUR FACORY WHICH IS LOCATED IN WUXI JIANGSU CHINA
TO CHECK THE MACHINE.

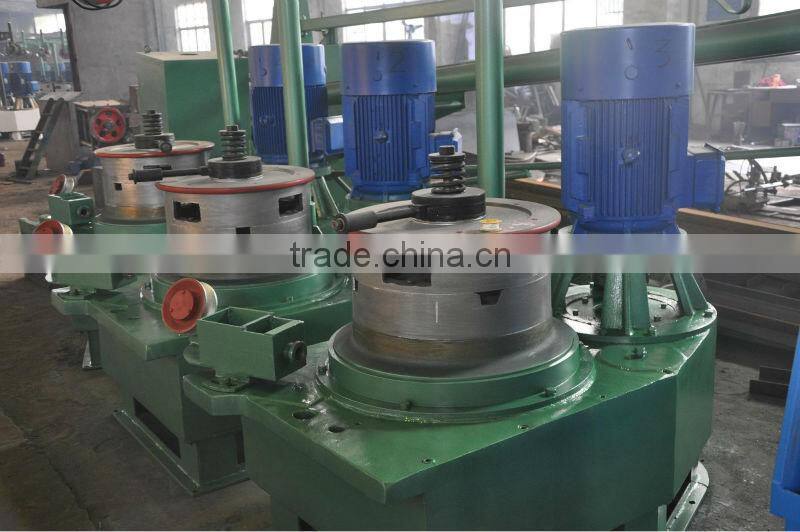

Structure:

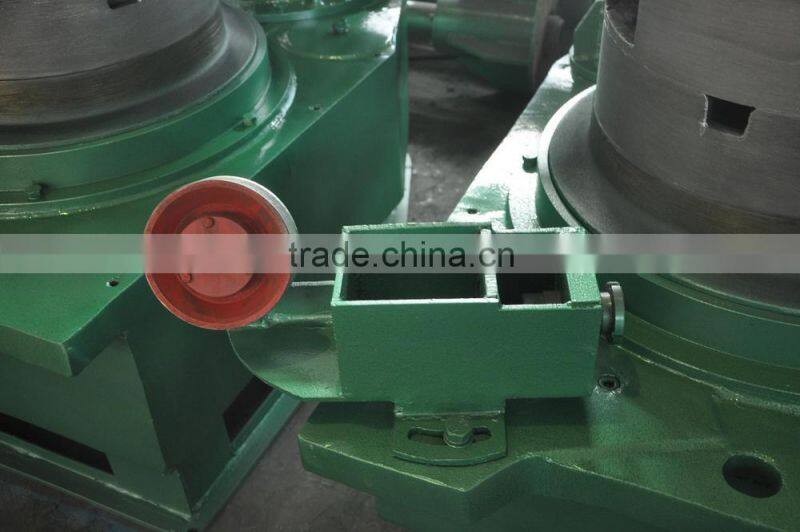

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

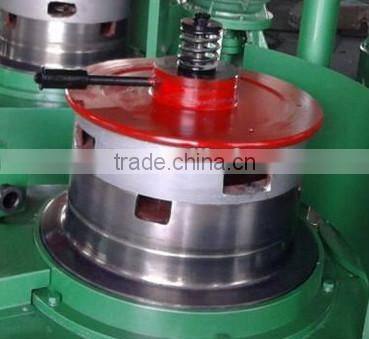

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.
| Type | LW-1-6/560 |
| Material intensity | δb≥110kg/mm2 |
| Max diam of material | 6.5mm |
| Min diam of material | 2mm |
| Diam of block | 1-6/560 |
| Max average condensation | 30% |
| Total condensation | 78-88.5% |
| Max.speed of block | 245m/min |
| Total power | 18.5-30kw |
| Weight | 2000kg |
| Overal size | 1700x1150x1750mm |

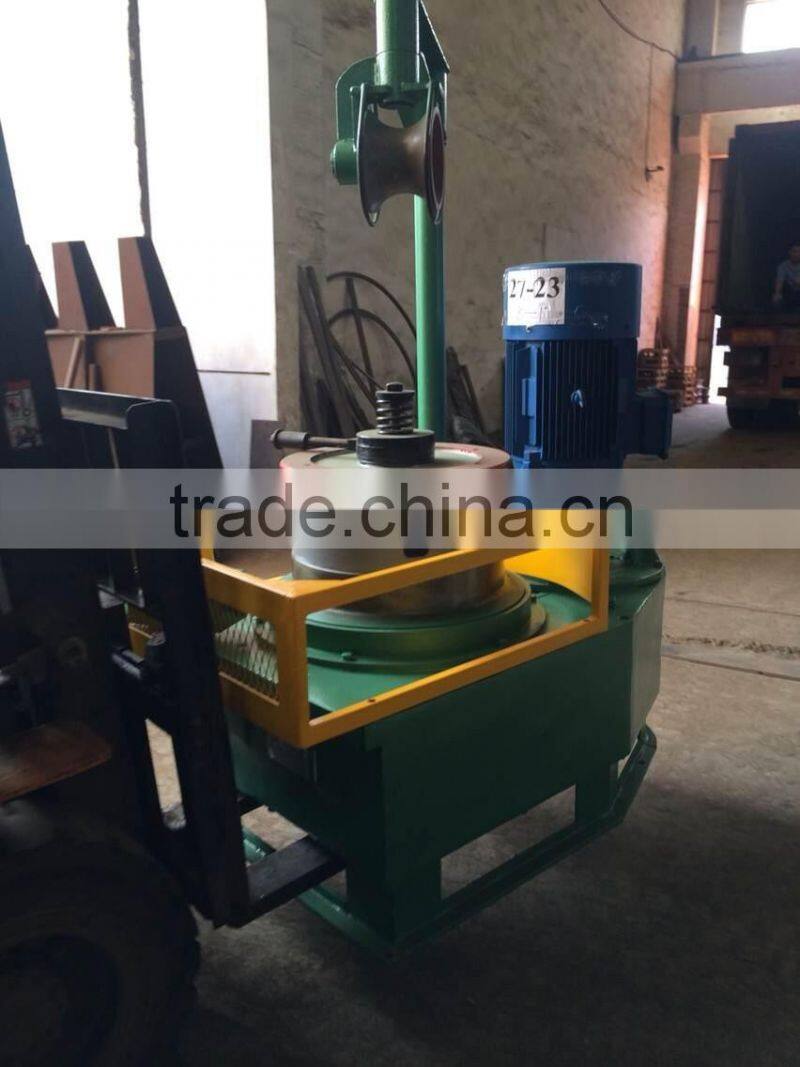

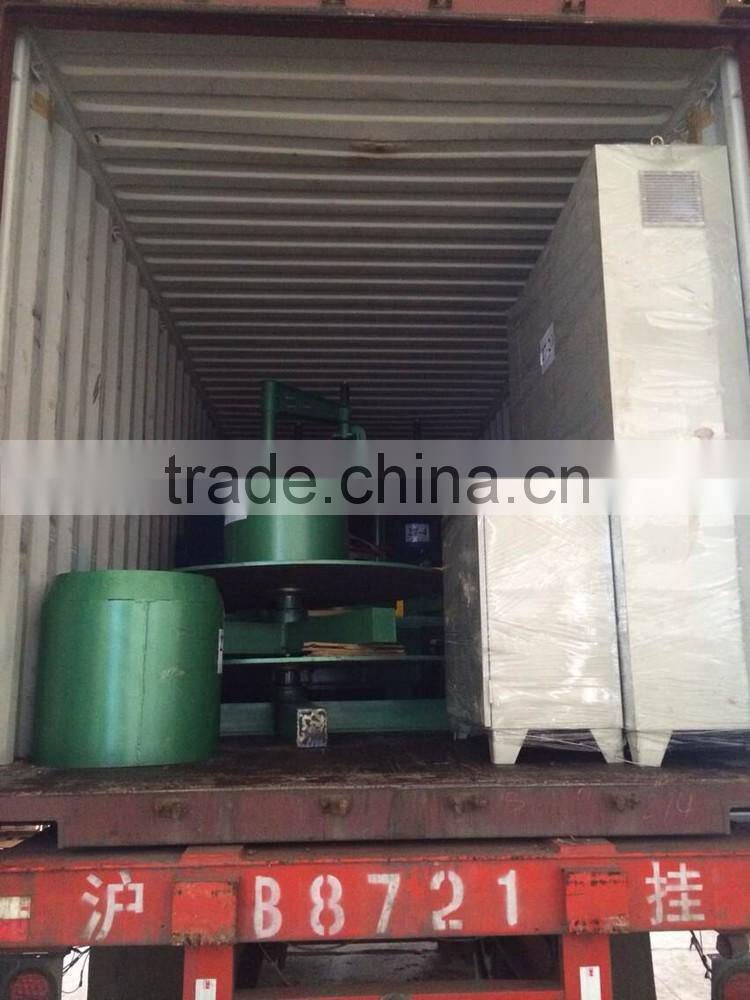

what this whole production line we ship to Algeria market

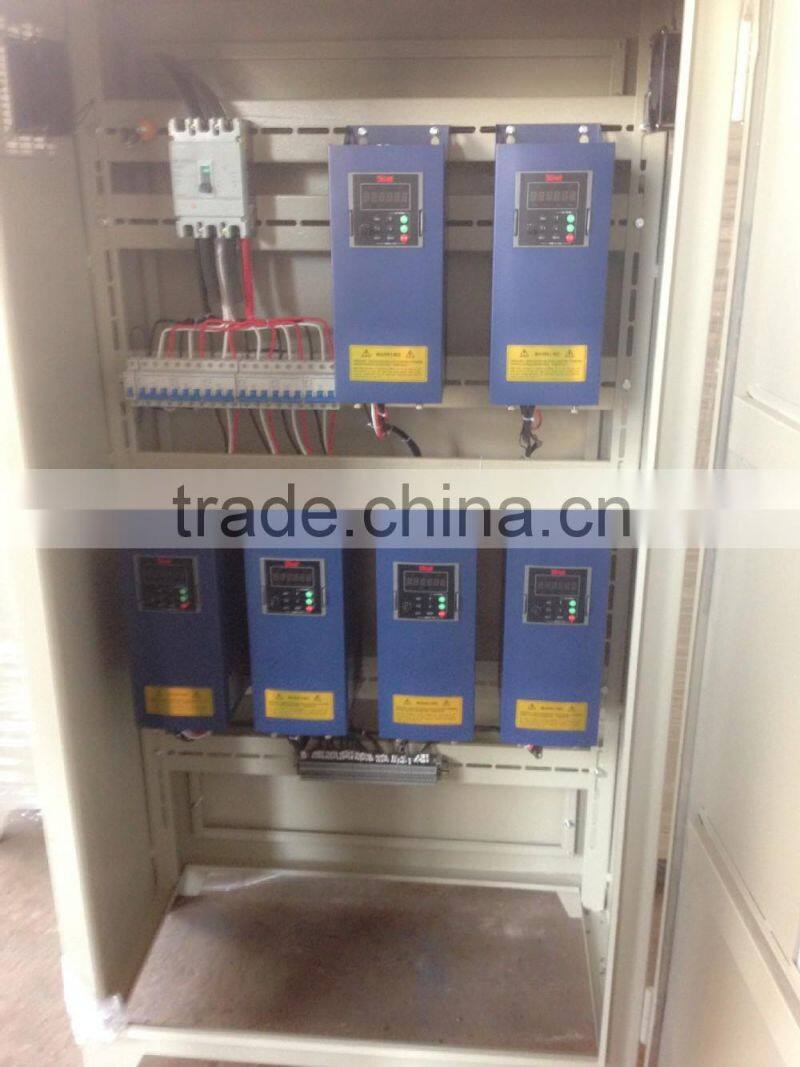

frequency control
