Home > Products > Pulley/OTO Type/Dry Wire Drawing Machine > Good quality OTO type/pulley Wire drawing machine (manufacturer)/wire coiler machine/nail wire making machine

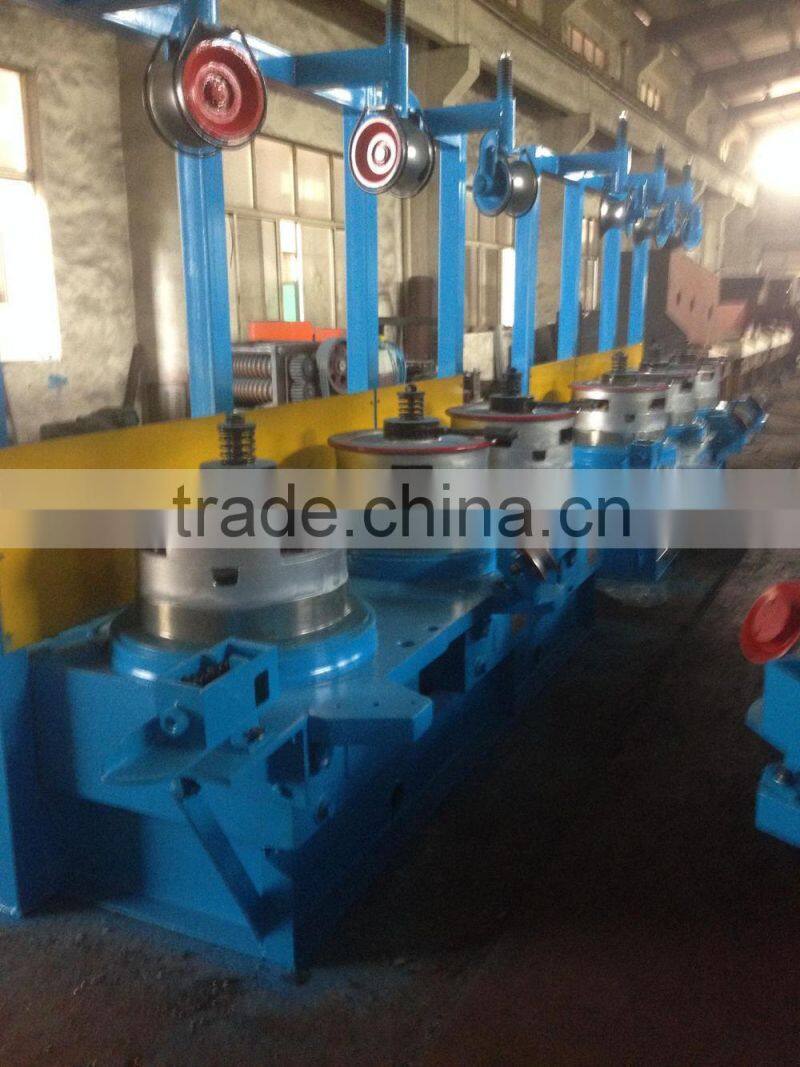

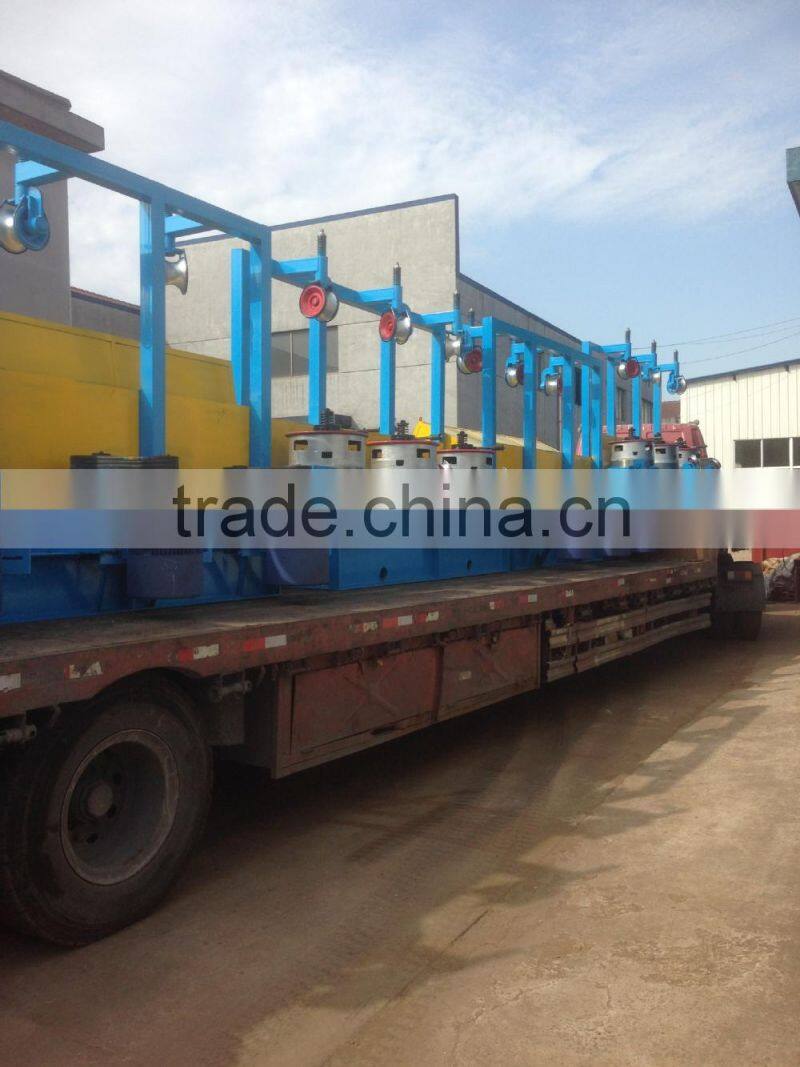

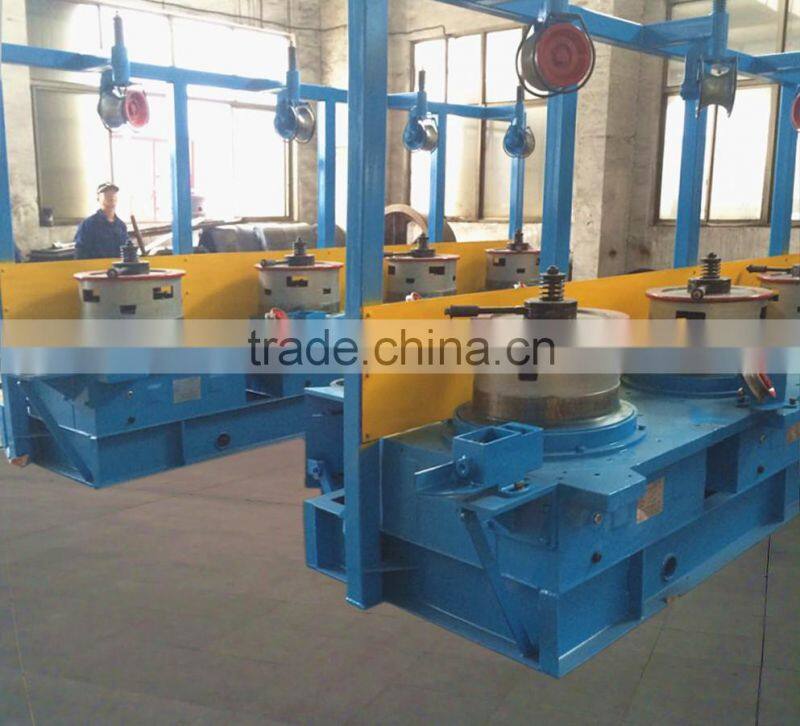

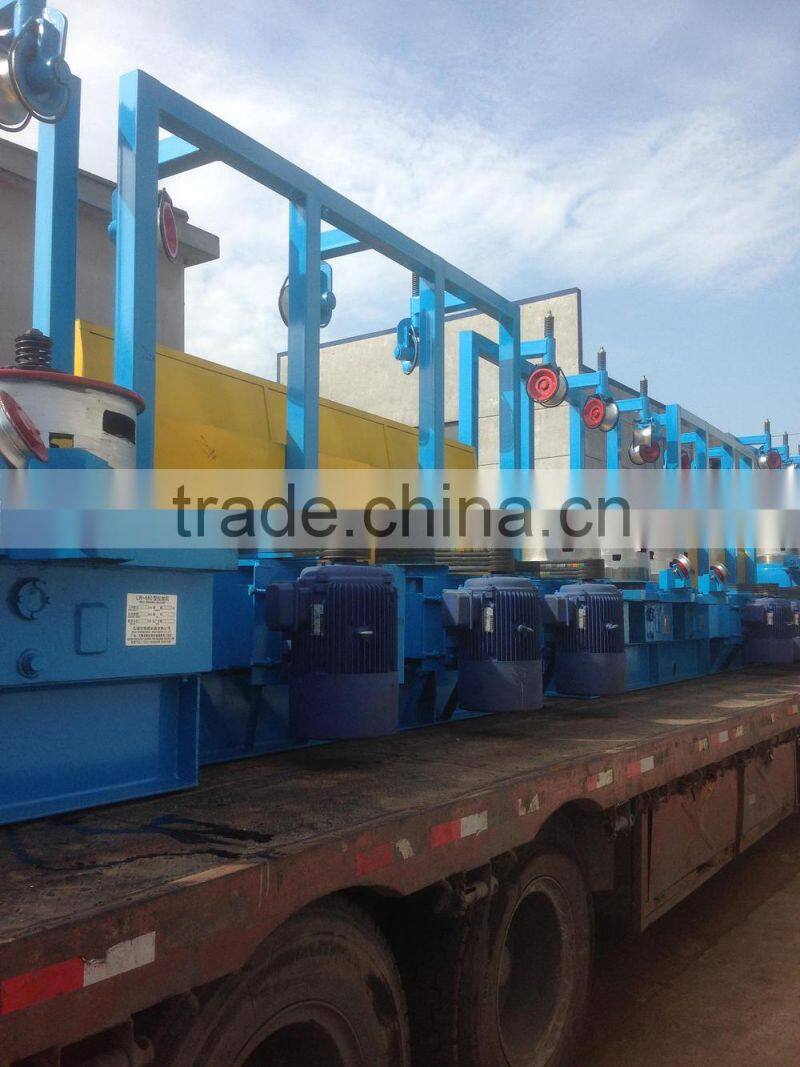

Good quality OTO type/pulley Wire drawing machine (manufacturer)/wire coiler machine/nail wire making machine
- 100 Set / Sets per Month
- shanghai
- T/T L/C Credit Card
You May Like
-
OTO Type/pulley Steel Wire Drawing Machine LW9/560 Controlled by PLC/nail wire making machine
-
pulley Wire Drawing machine Controlled by PLC/nail wire making machine/wire coiler machine/descaling machine
-
OTO type/pulley wire drawing machine/nail wire making machine/wire coiler machine
-
pulley type wire drawing machine
-
Steel Pulley Wire Drawing Machine, Pulley Continues Drawing Wire Machine, Factory Best Sale!
-
pully type wire drawing machine
Product Details
Place of Origin | Jiangsu, China | Brand Name | wandeshun | |
Model Number | LW-1-560,450,350 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia,Uzbekistan.Iran Kenya, South Africa and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Pulley wire drawing machine is our star products
Welcome to chat with me and the price is cheapeat!!!
Our company is a big private enterprise manufacturing various wire drawing machines with more than 25 years professional experience. We supply advanced wire drawing machine and excellent after-sales service for Chinese and overseas metallic industry.
Pulley/OTO Type Wire Drawing Machine
Features:
1.Controlled by PLC
2.Easy operation
3.High speed
4.High efficient
5.Low noise
6.Excellent after-sale services
7.Low operation cost
Application:
Main products include steel wire rod pre-treatment production line, rough wire drawing line, fine drawing line, gas welding wire, arc welding wire production line of high speed winding machine,etc.
contactor: Miss helen
Structure:
The equipment consists of main reduction box,die casing,wheel frame,sash brace and
electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.
Specification
Diameter of capstan | 360-400 | 560 | mm |
Drawing dies | 9 | 9 | Time |
Maximum diamter of inlet wire | 2.5-3.0 | 6.5 | mm |
Minimum diameter of outlet wire | 0.8 | 2.0 | mm |
Total compression rate | 91 | 90.53 | % |
Average compression rate | 23.5 | 23.04 | % |
Maximum linear speed | 12 | 6 | m/s |
Unit motor power | 7.5-11 | 18.5-30 | kw |
Unit dimension | 9000×1650×2250 | 12000×1850×2250 | mm |
Unit weight | 2 | 2 | t |
Inlet variable-frequency | Controlled by PLC | Controlled by PLC |
|
Note: We can produce according to customers' requirements.
