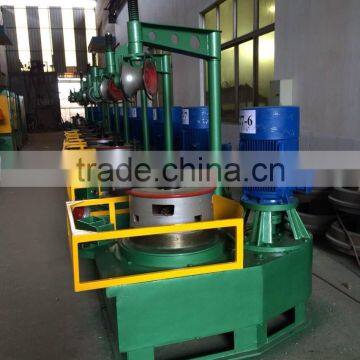

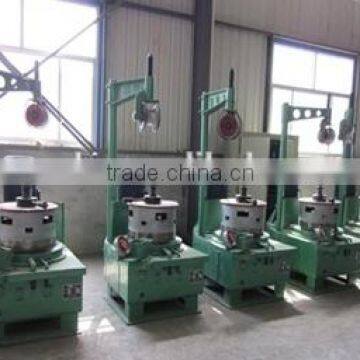

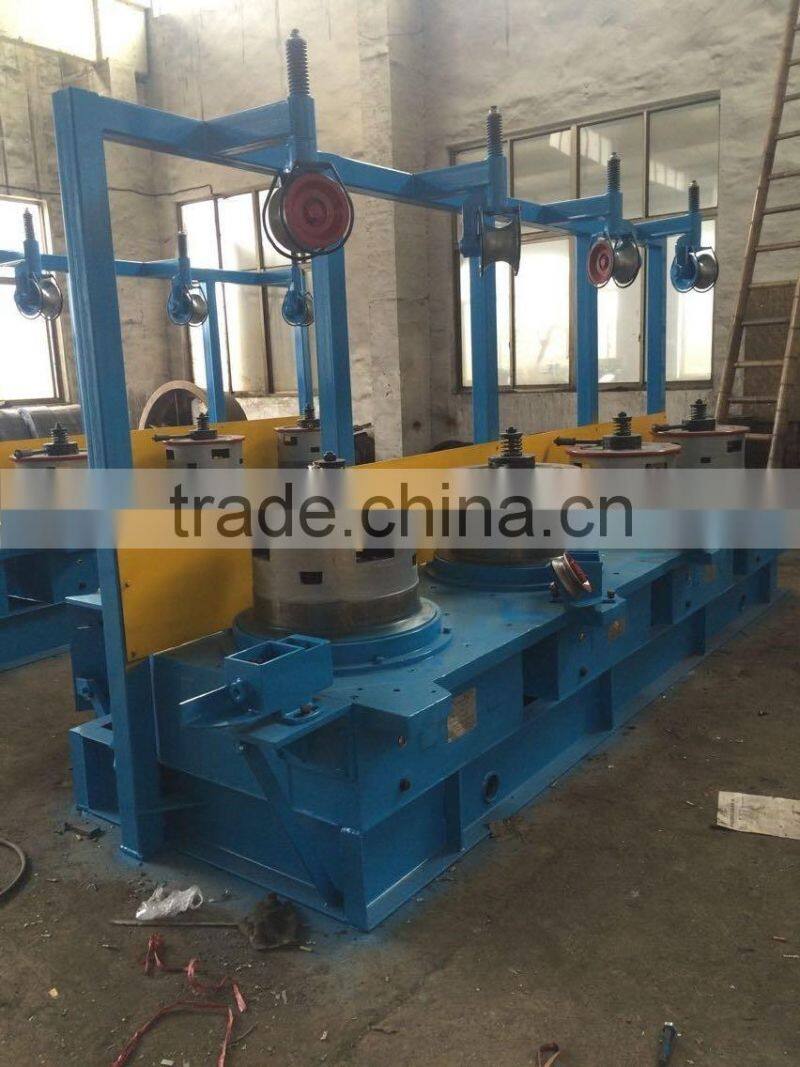

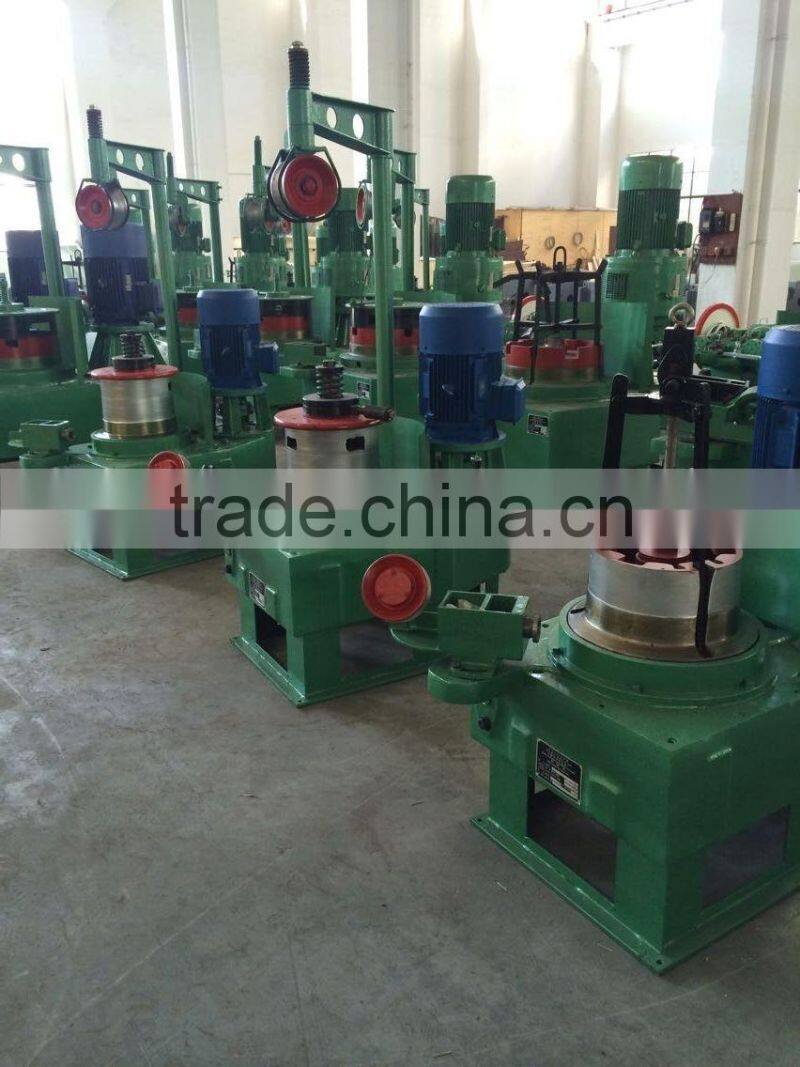

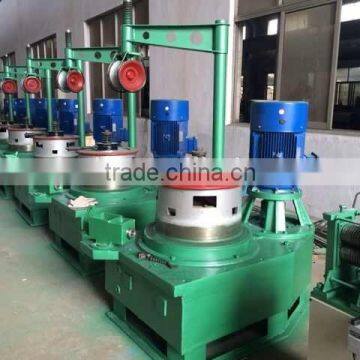

Help CenterSteel Pulley Wire Drawing Machine, Pulley Continues Drawing Wire Machine, Factory Best Sale!
Related Products
-
Pully Type Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set -
Steel Wire Drawing MachineUS$ 1 - 10,000MOQ: 1 Set
-
Nail Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Full Automatic And Much Economic Pulley Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
-
Bull Block Wire Drawing MachineUS$ 1,000 - 4,500MOQ: 1 Set
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
My contact way
My mobile: 86-13921534531
Whatsapp: 86-13921534531
Skype: jeaqueline998
trademanager: wxwds
Email:sales(at)
QQ:349791577
Product Details
I. Composing of production line
Pay-off → Pulley type wire drawing machine → Horizontal take-up
| Type | LW-1-6/560 |
| Material intensity | δb≥110kg/mm2 |
| Max diam of material | 6.5mm |
| Min diam of material | 2mm |
| Diam of block | 1-6/560 |
| Max average condensation | 30% |
| Total condensation | 78-88.5% |
| Max.speed of block | 245m/min |
| Total power | 18.5-30kw |
| Weight | 2000kg |
| Overal size | 1700x1150x1750mm |
II . Instruction of wire drawing machine
1. Drive System
The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.

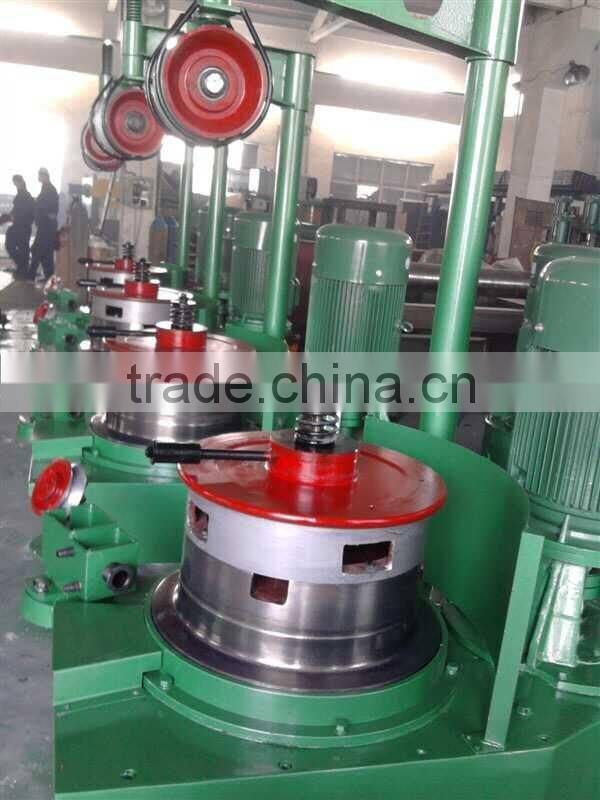

2. Block
Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.
Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.
3. Die box
All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.
Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.
4. Gearbox
The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.
5. Safety cover
On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.
6. Lubricating
Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.
7. Take-up
The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).

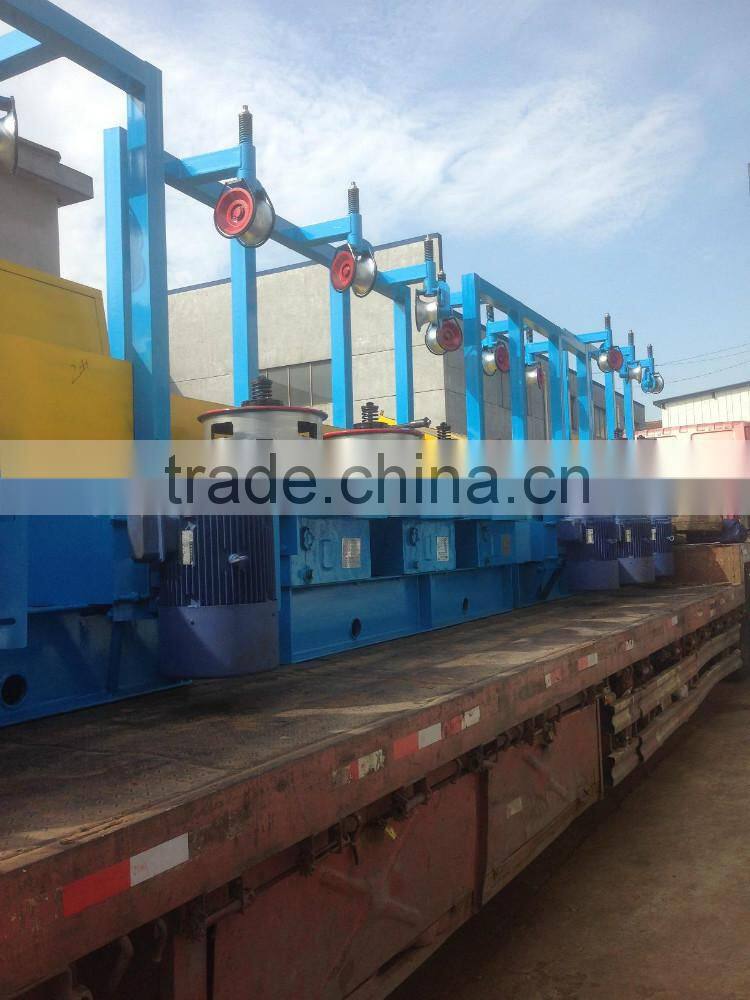

our loading and shipment photos
our clients and our machine
