Help CenterQC12K-10*2500 Swing Beam Hydraulic Shearing MachineCNC Hydraulic Shearing Machine for Sale With a Good Quality
Related Products
-
China Factory Price QC12Y Steel Plate Shearing Machine Metal Sheet Shearing MachineNegotiableMOQ: 1 Set -
Guillotine Metal Plate Shearing Machine With CNC Feeding SystemUS$ 11,000 - 21,000MOQ: 1 Set
-
QC11Y Cutting Angle Adjustable Hydraulic Shearing Machine, CNC Plate Cutting MachineUS$ 11,600 - 16,800MOQ: 1 Set
-
QC11Y-8*3200 mm China Supplier Hydraulic Guillotine Shearing Machine, Matel Sheet Cutting MachineUS$ 13,400 - 15,500MOQ: 1 Set
-
QC12Y-6*3200 Hydraulic Shearing Machine for Sheet MetalUS$ 4,900 - 29,000MOQ: 1 Set
1.Products description
QC12K series CNC hydraulic guillotine shears adopts welded steel structures.After
welding,it will go through annealing treatment.The frame uses whole welded steel structures
which has good strength,stiffness and vibration resistance.Using German technology to
eliminate internal stress,then optimization design with the assistant of computer.The framework
uses sanding for rust removal,and spray antirust coating.
2.Features
1.Bottom blade is rectangle,which can use four edges to shearing and extend working life of blade.
2.Work table equiped with auxiliary cutter holde,which convenient to microadjustable.
3.It is easy to operate with bowl feed at work table .
4.Blade gap adjustment by the infinite institutions to meet defferent thickness and materials
shearing demands.
5.Adjusting the shearing stroke can improve the machining efficiency and realize nibbling shear.
6.Shearing times can count automatic,which reduce clear pixel work.
7.Precise positioning,worm drive,the same heart of polished and screw,no noise.
8.The machine use welded steel structure,hydrauclic transmission,energy storage return,which
making the machine operate convenient,performance reliable and a beautiful shape.

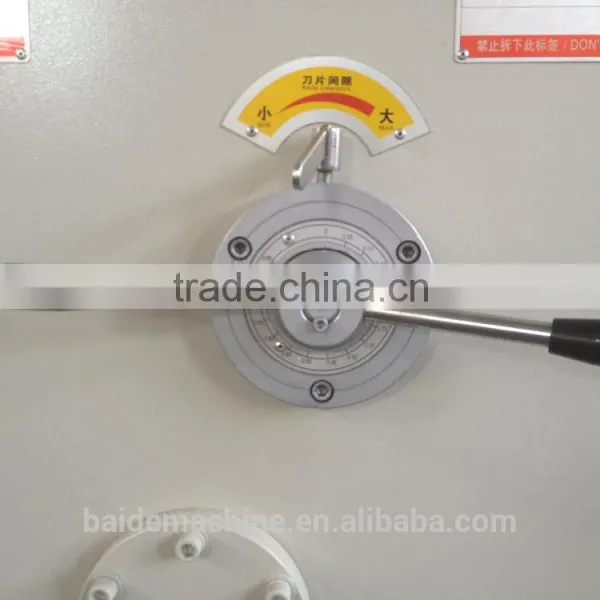

9.Indicator based adjustment of gap of blade is convenient and fast.Aligning by light,the stroke
of blade beam can be adjusted in stepless mode. (Optional configuration) The machine uses protection fence for safe operation and size of
rear blok stop and shearing numbers has digital display apparatus.
10.The framework uses welded steel structures which is sturdy and durable.And it uses
accumulator oil cyliner return which is stable and fast.
11.With stepless adjustment itinerery features upper and lower blade edge of space
with handle conditioning,blade gap evenness difficult to adjust.
12.Guard and electric interlock to ensure safe operation .CNC numerical control
systemand position emcoder closed-loop control system have fast speed,high precise,good
stable and ensure back-gauge displacement size precisely.Also, numerical control system has
a variety of additional function ,for example, compensation function and automatic detection.
3.Hydraulic press system
1.Advanced integrated hydraulic system reduce the pipeline installation and ensure the high
reliability and safety in the operation of the machine tool.
2.Metarial-press system:It install in front of the rack on the supporting plate after severial
material cyliner inlet pressure.Pressure is expected to head down after overcome the
torsion spring tension and then pressure plate.After shearing ,with the help of the torsion
spring tension it will be reseted.The size of the pressure-plate-
force will be increased with shear plate thickness.By servo motor driving to adjust back-
gauge.After gear reducing speed,then driving by ball screw.
4.Configuration
5.Technical parameters:
Item |
Shearing Specification |
Shearing angle |
Stroke times |
Backgauge Range(mm) |
Main motor power(kW) |
Weight |
Dimension |
QC12K-4×2000 |
4×2000 |
1°30' |
≥21 |
20-600 |
7.5 |
4,650 |
2540×1610×1650 |
QC12K-4×2500 |
4×2500 |
1°30' |
≥18 |
20-600 |
7.5 |
5,500 |
3140×1610×1650 |
QC12K-4×3200 |
4×3200 |
1°30' |
≥14 |
20-600 |
7.5 |
6,600 |
3840×1610×1650 |
QC12K-4×4000 |
4×4000 |
1°30' |
≥10 |
20-600 |
7.5 |
7,550 |
4680×1705×1700 |
QC12K-6×2500 |
6×2500 |
1°30' |
≥18 |
20-600 |
7.5 |
5,500 |
3140×1610×1650 |
QC12K-6×3200 |
6×3200 |
1°30' |
≥14 |
20-600 |
7.5 |
6,600 |
3840×1610×1650 |
QC12K-6×4000 |
6×4000 |
1°30' |
≥10 |
20-600 |
11 |
8,500 |
4640×1705×1700 |
QC12K-6×5000 |
6×5000 |
1°30' |
≥10 |
20-750 |
11 |
19,700 |
5786×2200×2160 |
QC12K-6×6000 |
6×6000 |
1°30' |
≥7 |
20-800 |
15 |
25,000 |
6900×2570×2280 |
QC12K-8×2500 |
8×2500 |
1°30' |
≥14 |
20-600 |
11 |
5,500 |
3140×1610×1650 |
QC12K-8×3200 |
4×2000 |
1°30' |
≥12 |
20-600 |
11 |
6,600 |
3840×1610×1650 |
QC12K-8×4000 |
8×4000 |
1°30' |
≥8 |
20-600 |
11 |
8,500 |
4680×1705×1700 |
QC12K-8×5000 |
8×5000 |
1°30' |
≥7 |
20-750 |
15 |
21,000 |
5786×2252×2310 |
QC12K-8×6000 |
8×6000 |
1°30' |
≥5 |
20-750 |
15 |
28,000 |
6900×2570×2280 |
QC12K-10×2500 |
10×2500 |
2° |
≥10 |
20-600 |
15 |
7,500 |
3350×1750×1950 |
QC12K-10×3200 |
10×3200 |
1°48' |
≥10 |
20-600 |
15 |
9,500 |
3975×1750×1950 |
QC12K-10×4000 |
10×4000 |
2° |
≥12 |
20-800 |
18.5 |
15,000 |
4800×2280×2100 |
QC12K-12×2500 |
12×2500 |
2° |
≥11 |
20-600 |
15 |
7,500 |
3350×1750×1950 |
QC12K-12×3200 |
12×3200 |
1°30' |
≥10 |
20-800 |
18.5 |
12,500 |
4020×2050×2230 |
QC12K-12×4000 |
12×4000 |
2° |
≥7 |
20-800 |
18.5 |
18,000 |
4820×2300×2300 |
QC12K-16×2500 |
16×2500 |
2° |
≥8 |
20-800 |
18.5 |
15,000 |
3400×2060×2350 |
QC12K-16×3200 |
16×3200 |
2° |
≥7 |
20-800 |
18.5 |
16,300 |
4062×2300×2350 |
QC12K-16×4000 |
16×4000 |
2° |
≥5.7 |
25-800 |
30 |
20,000 |
4850×2300×2300 |
QC12K-20×2500 |
20×2500 |
2°30' |
≥6 |
20-800 |
37 |
14,000 |
3440×2088×2570 |
QC12K-20×3200 |
20×3200 |
2°30' |
≥5 |
35-800 |
37 |
20,000 |
4150×2310×2730 |
QC12K-20×4000 |
20×4000 |
2°30' |
≥5 |
30-1000 |
37 |
25,000 |
4920×2400×2770 |
QC12K-25×2500 |
25×2500 |
3° |
≥5 |
40-800 |
37 |
16,500 |
3450×2300×2730 |
QC12K-25×3200 |
25×3200 |
3° |
≥4 |
40-1000 |
37 |
26,000 |
4100×2400×2770 |

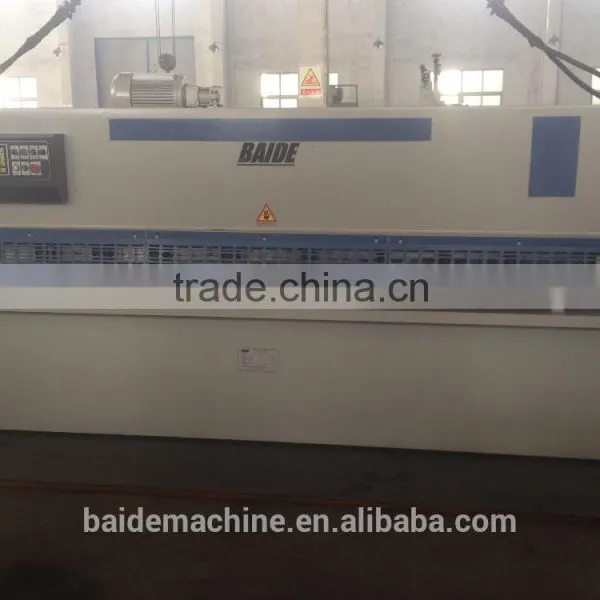

6.Real shot photo:
product photos:
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
Pre-Sale Services
- Recommond suitable pattern of equipment based on customer's requirements
- Provide detailed specifications and photos of the machines
- Develop practical solutions according to actual production status
- Facotry visiting is welcomed and arranged carefully
In-Sale Services
- Strict quality control to ensure the machines get high-quality and high-accuracily
- Provide all set of necessary documents
- Inform the production schedule, shipping time, arrival date on time
- Assist client for other issues
After-Sale Services
- Technical engineers are available for installation debugging and training
- Provide life-long services for any technical questions
- 12-month quality warranty frees you from worries
- Sound tracking service system gives you happy shopping and users experience
Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine, hole punching machine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length line, slitting line, duct manufacture machines, etc.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
Foreign visitor
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.
