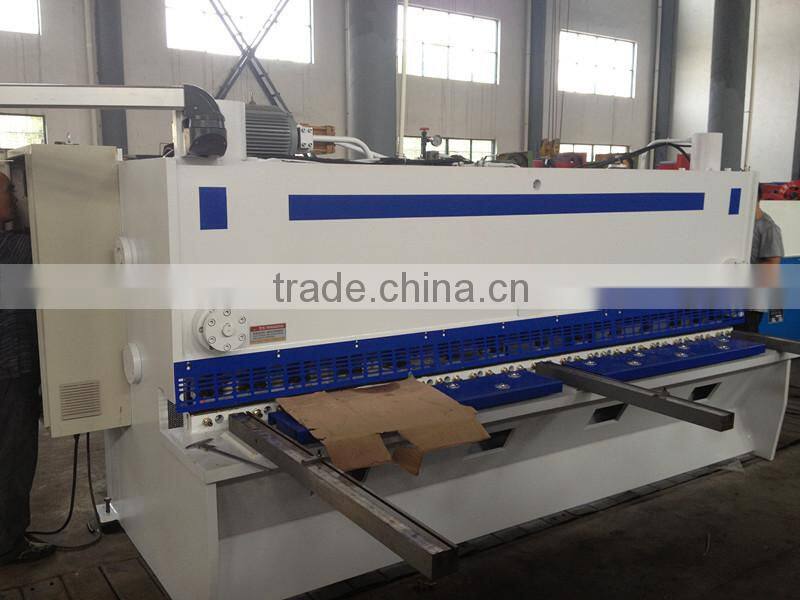

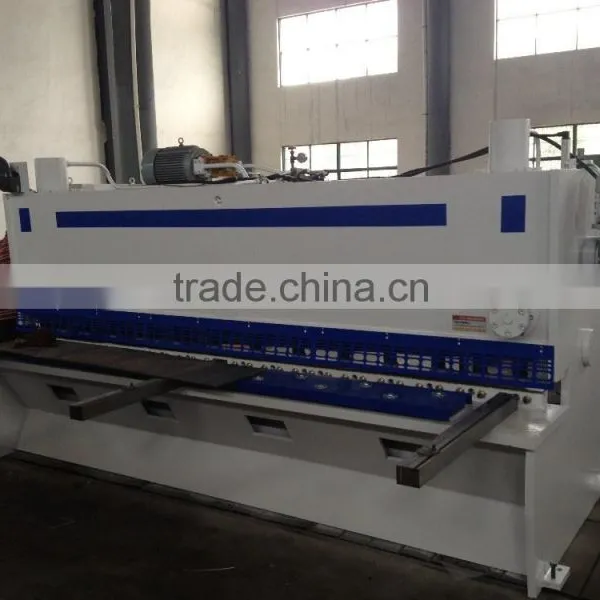

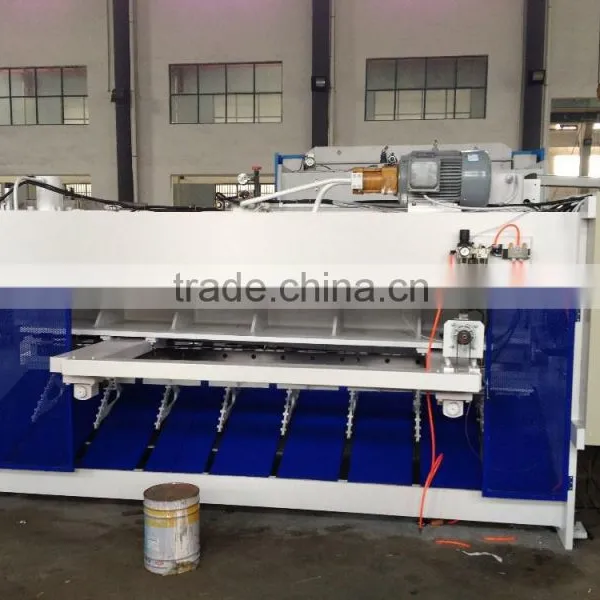

Hydraulic Guillotine Shearing Machine
1.General inroduction
This machine is mainly used for cutting thickness 10mm, width not more than 5000mm
steel plate, cutting strength of sheet metal to 450 n/was as the calculation basis, if you need
other is greater than the strength of the shear sheet should be the biggest thickness thinning
is cut sheet accordingly. The machine adopts steel welding structure, hydraulic transmission,
livestock can implement the return trip, work stable and reliable, small volume, light weight,
good rigidity, low noise.
2.The machine structure
2.1 Rack part
By the frame structure of steel plate welding, with good rigidity, two oil cylinder fixed on
the top two columns, the workbench to stud welding connection.Under the blade mounted
on the workbench, and can make minor adjustments, make blade gap even.
2.2 Upper slide rest
For steel plate welded structure, with good rigidity, after its former roller for the fulcrum,
in the driving of the oil cylinder reciprocating movement up and down around the complete
shear.Adopts three point rolling guide rail, eliminate the guide clearance, improve the quality
of shear.Rectangular blade, four parts all can use, long service life.Rest on the structure of
introversion, facilitate blanking, and can improve the precision of the work.Rest on the shearing
Angle is adjustable, reduce the deformation of sheet metal distortion, the handwheel adjustment
on the front panel, the left side of the blade gap instructions;Front and rear guide rail and the
roller adopt alloy steel forging.

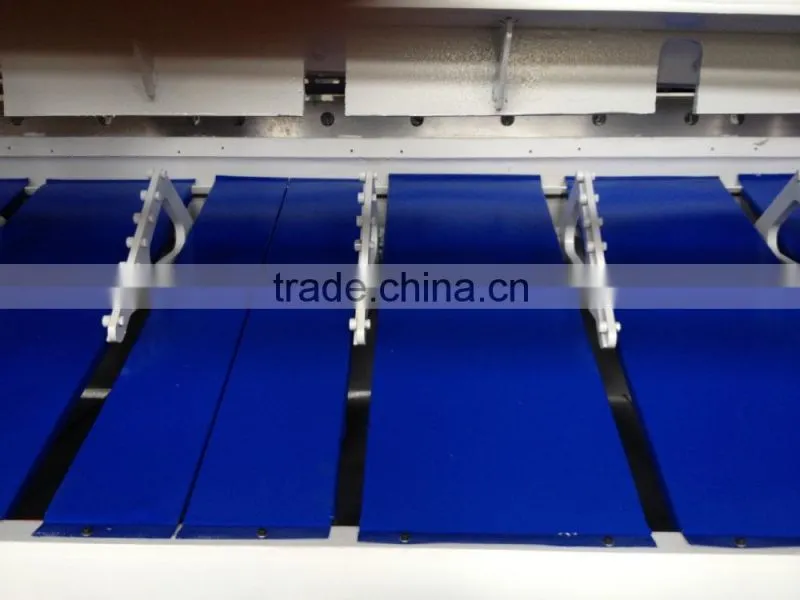

2.3 Press device
By installing more pressure on the supporting plate in front of the frame material of oil cylinder,
material cylinder inlet pressure, pressure is expected to head down after overcome the spring tension,
pressure plate, after completion of the shear, by means of the torsion spring tension and reset.
The size of the force that press a material increases with increasing by shear of the thickness of the
sheet metal.
2.4 Keep-off institutions
Before keep-off:By the before keep-off rack and Scale and left limit baffle, etc composition.

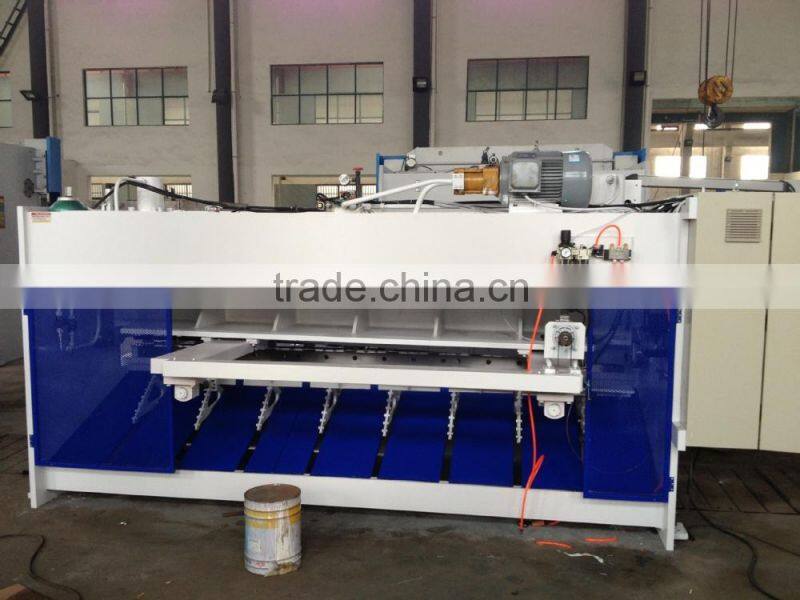

After keep-off(back gauge):In the upper slide rest under the rung, Along with the rest on the up
and down, back gauge regulation by screw driven by a motor drive. Control the movement distance,
and has a soft limit loading system.. The motor can not meet the need to size, manual and fine-tuning
to ensure that the required values to adjust. So the back gauge adjustment is convenient and reliable.

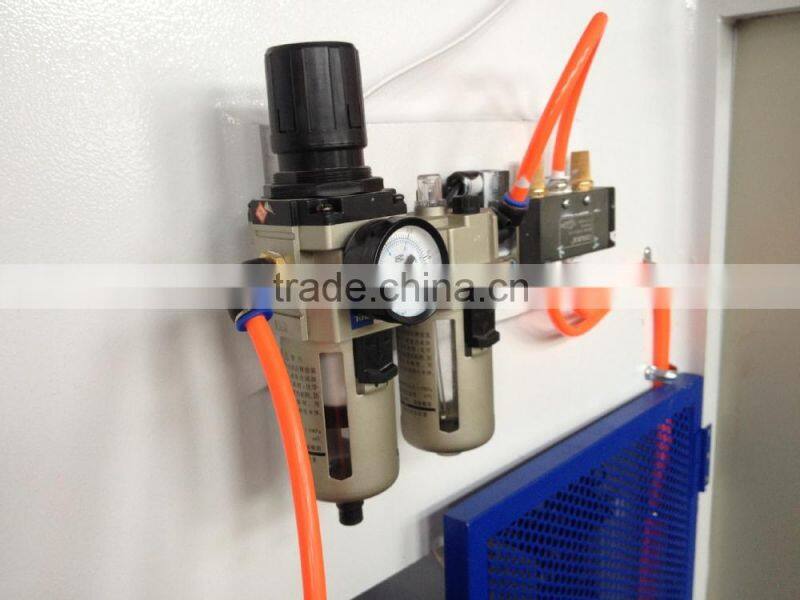

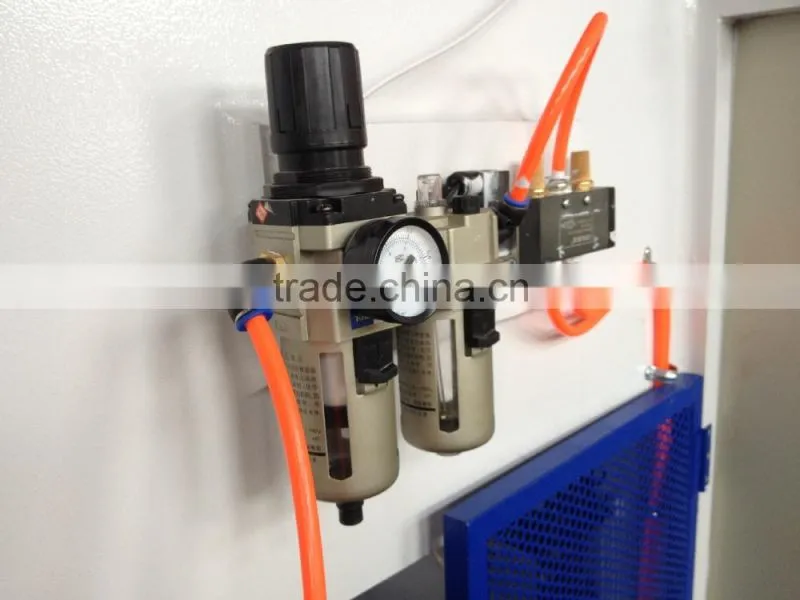

3.5 Machine hydraulic system
This machine adopts hydraulic transmission, the main gear pump, hydraulic system through one-way valve,
relief valve system, electromagnetic directional valve and livestock can opener, etc. The system is reasonable,
the movement is stable and reliable.
According to mark the direction of arrow rotation after motor startup, ( When the electromagnetic valve does
not work) Drive gear pump will be filtered oil through oil suction pipe into the valve plate and the
electromagnetic valve after back to the tank.Supply pressure by the gear pump used in the system,
the system maximum working pressure for 20 Mpa, set by the overflow valve, the hydraulic valve
have been setting before they go out, normally the user does not need any adjustment, Shanghai hydraulic
valve is used in the hydraulic valve, all seal wall card, choose Japan line decorate concise, less leakage,
easy maintenance and debugging.

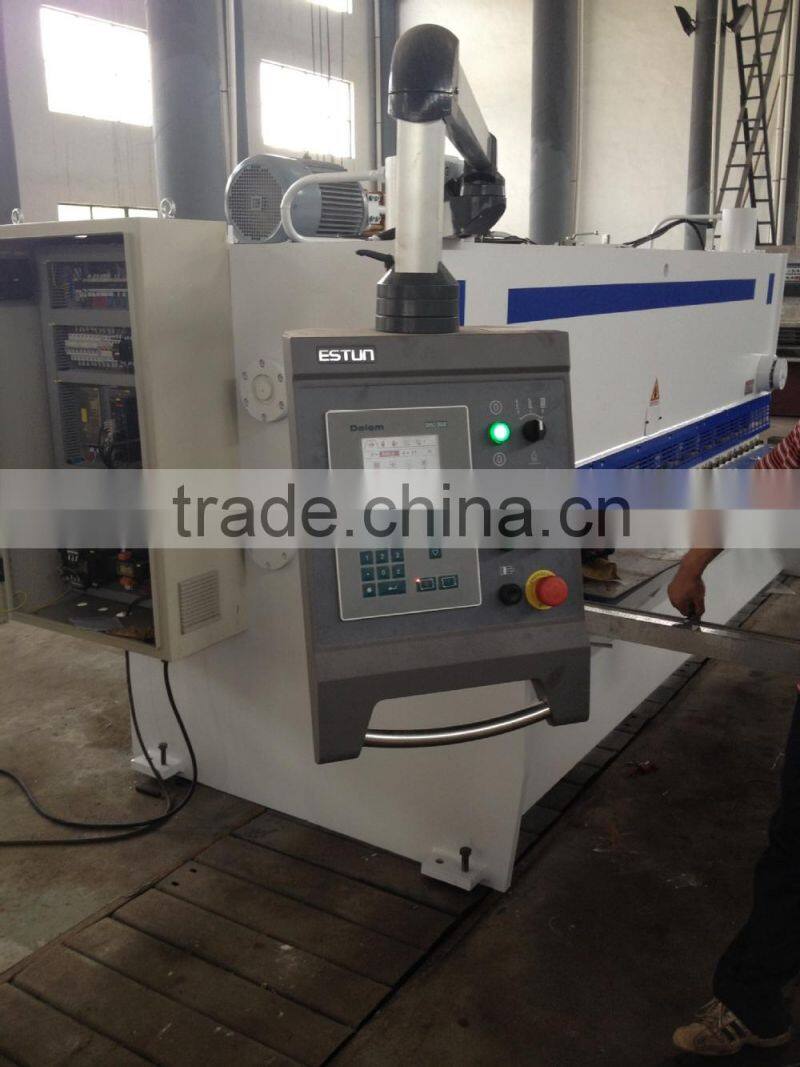

2.6 The machine electrical system
This machine adopts the 50 hz, 380 v ac power supply, by the main loop of the transformer output 220 v
voltage control, electromagnetic relief valve, indicator light and button.. Machine electrical box located on
the left side of the machine tool, control button in front of the machine installation, easy operation,
which leads to the pedal switch SA3 lead by the electric box. The machine through the knob switch
can be a single, continuous and dynamic capabilities. Machine also has the shear length adjustment,
turn knob, time relay external knob, can adjust length of shear, rotate the rotary switch SA2, rev. Bright
lights to the line, mobile cut sheet metal, make the row in the sheet metal processing line and machine
blade projection overlap, can shear required results. Electrical components by Siemens.Main circuit has
corresponding overload and short circuit protection function, safe and reliable, easy to maintain.
3.Technical parameter
No. |
Items |
Value |
Unit |
Remark |
|
1 |
Cutting thickness |
8 |
mm |
|
|
2 |
Cutting length |
3200 |
mm |
|
|
3 |
Plate tensile strength |
450 |
N/mm2 |
|
|
4 |
Cutting angle |
0.5°-2.5° |
|
|
|
5 |
Stroke times |
10-24 |
min-1 |
|
|
6 |
Distance of columns |
3340 |
mm |
|
|
7 |
Length of blade |
3300 |
mm |
|
|
8 |
Worktable height |
800 |
mm |
|
|
9 |
Back gauge |
500 |
mm |
|
|
10 |
Main motor |
Power |
7.5 |
KW |
|
11 |
Max pressure of hydraulic system |
25 |
MPa |
|
|
12 |
Dimension |
length |
3800 |
mm |
|
Width |
1800 |
mm |
|
||
Height |
2060 |
mm |
|||
4.Main parts supporting manufacturer
4.1 Rolling bearing ZWZ

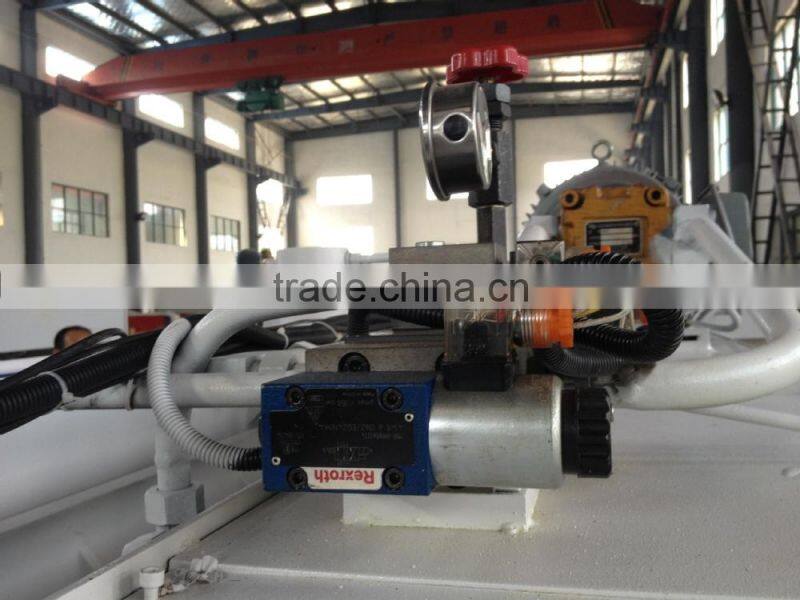

4.2 Hydraulic valve REXROTH
4.3 Main motor SIEMENS
4.4 Sealing Element VALQUA(JAPAN)
4.5 Electrical appliance SIEMENS
4.6 Oil pump SHANGHAI CHENGJIE
4.7 Oil cylinder JIANGSU HONGSHENG
4.8 Blade SHANGHAI MECHANICAL BLADE FACTORY
5. Accessories included
5.1 Provide instruction
5.2 Provide accessories included one set
6. Packing and shipment
