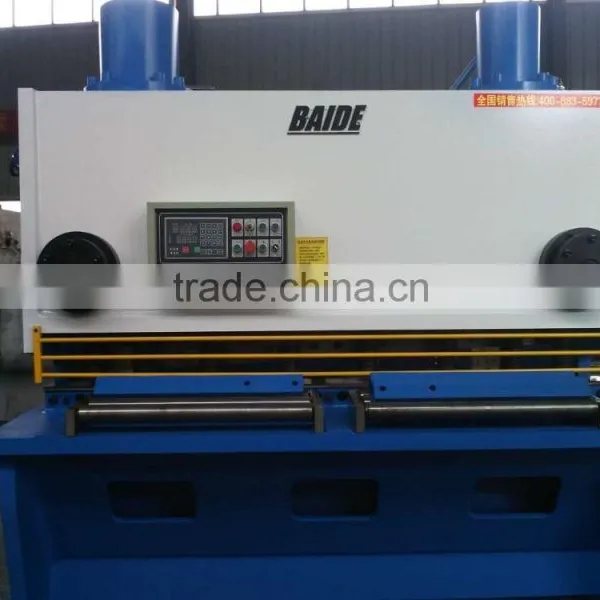

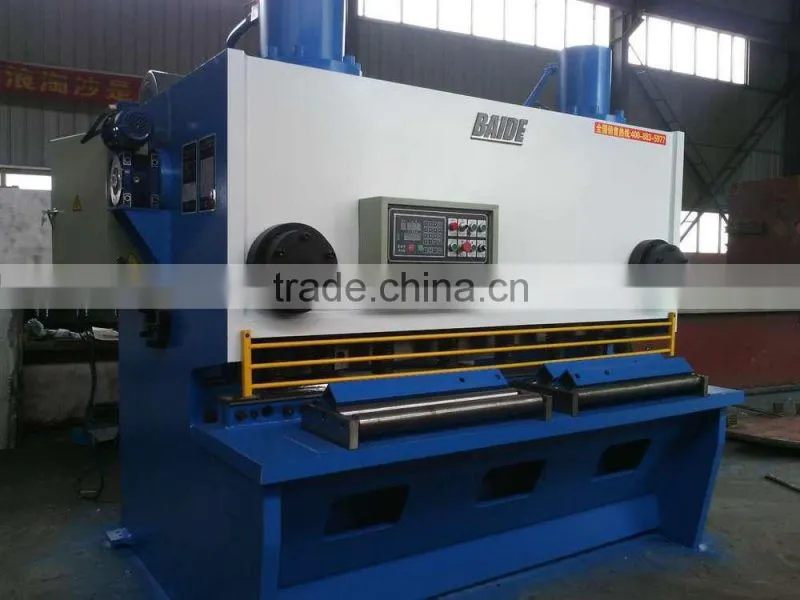

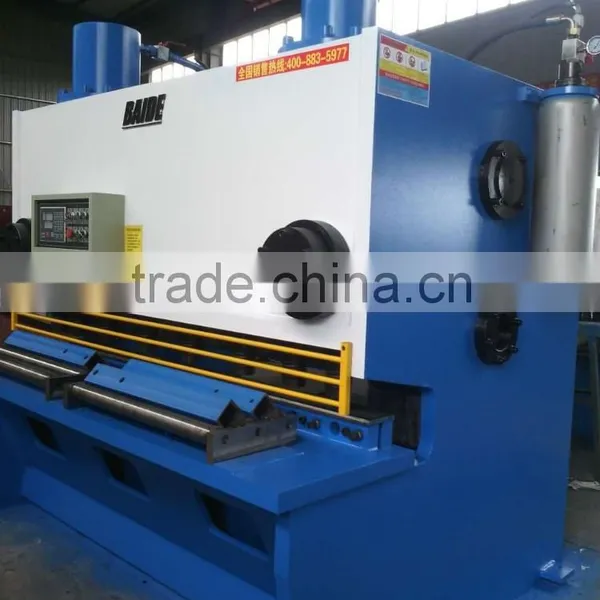

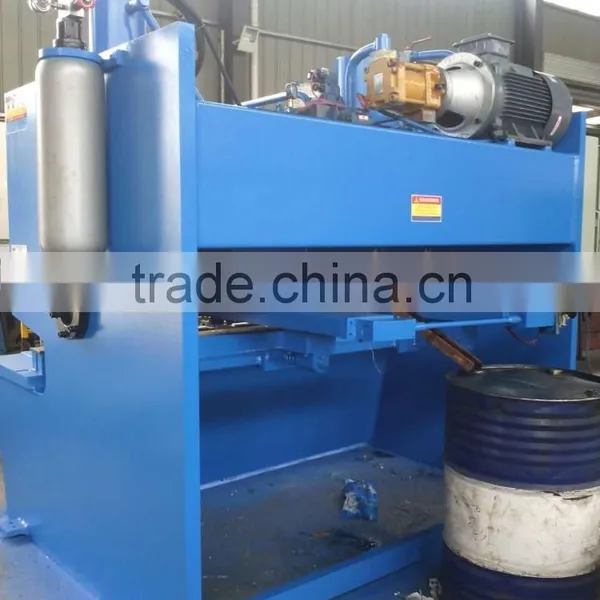

1>.General inroduction
This machine is mainly used for cutting thickness 40mm, width not more than 3200mm
steel plate, cutting strength of sheet metal to 450 n/was as the calculation basis, if you need
other is greater than the strength of the shear sheet should be the biggest thickness thinning
is cut sheet accordingly. The machine adopts steel welding structure, hydraulic transmission,
livestock can implement the return trip, work stable and reliable, small volume, light weight,
good rigidity, low noise.
2>.Technical parameter
No. |
Items |
Value |
Unit |
Remark |
|
1 |
Cutting thickness |
8 |
mm |
|
|
2 |
Cutting length |
3200 |
mm |
|
|
3 |
Plate tensile strength |
450 |
N/mm2 |
|
|
4 |
Cutting angle |
0.5°-2.5° |
|
|
|
5 |
Stroke times |
10-24 |
min-1 |
|
|
6 |
Distance of columns |
3340 |
mm |
|
|
7 |
Length of blade |
3300 |
mm |
|
|
8 |
Worktable height |
800 |
mm |
|
|
9 |

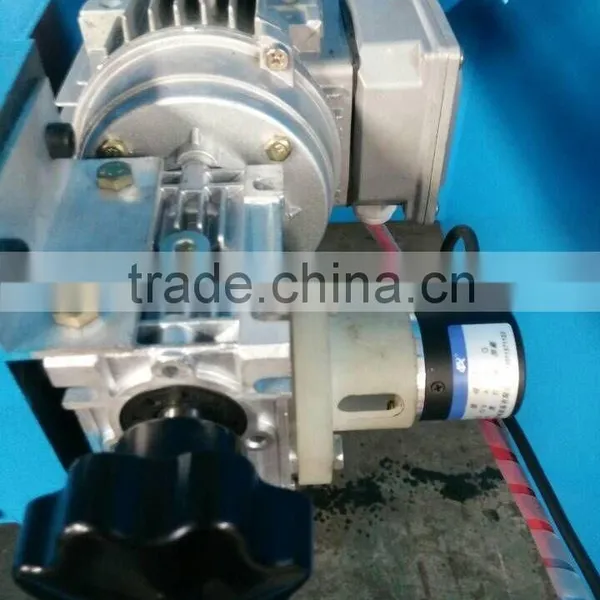

Back gauge |
500 |
mm |
|
|
10 |

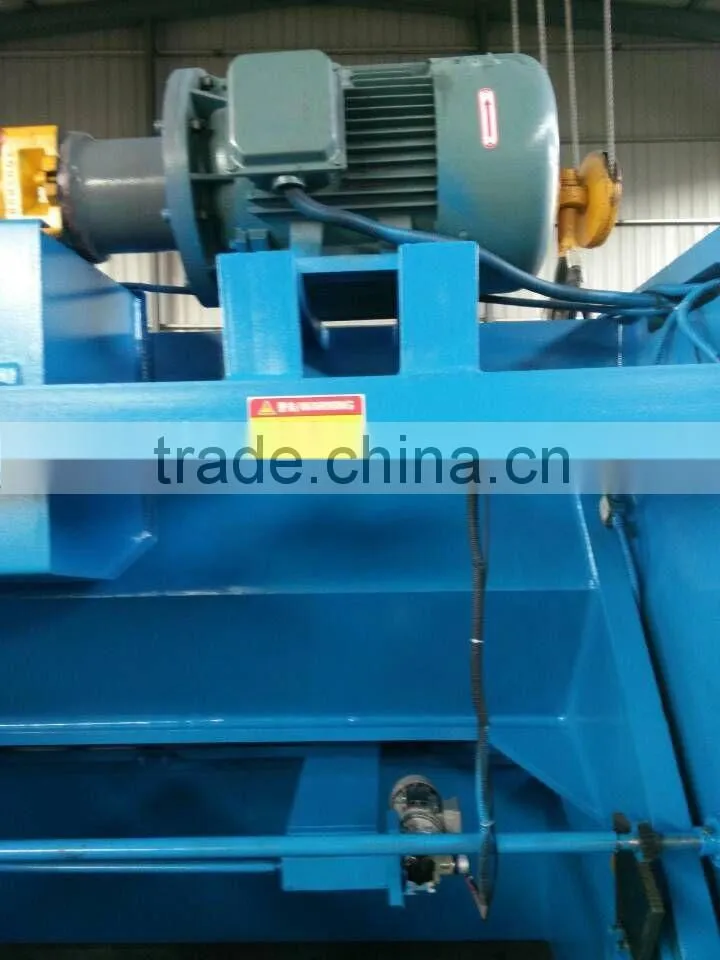

Main motor |
Power |
7.5 |
KW |
|
11 |
Max pressure of hydraulic system |
25 |
MPa |
|
|
12 |
Dimension |
length |
3800 |
mm |
|
Width |
1800 |
mm |
|
||
Height |
2060 |
mm |
|||
