Product Details

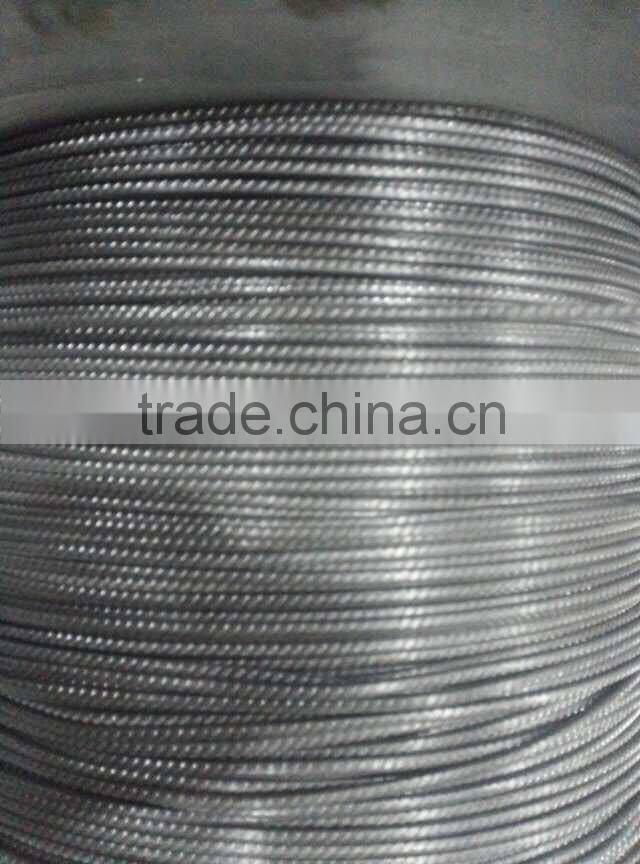

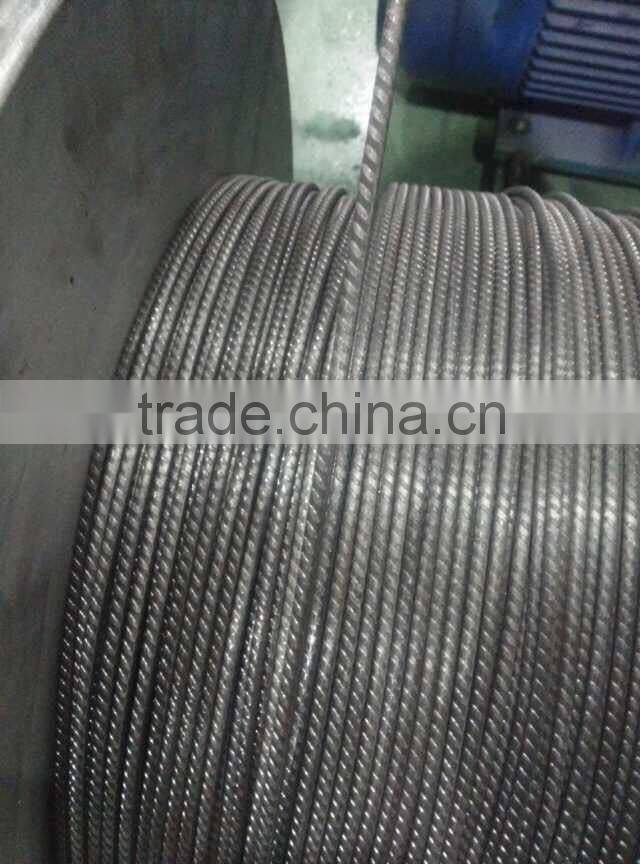

Cold-rolling Ribbed Wire (Bar)Production Line makes common low- carbon steel or low- alloyed steel into bar three faced with crescent rib through several processes of cold rolling and one of rib extruding. Compared with cold draw steel thread, the intensity of this kind of bar is higher, extensibility is better. It can be widely applied to the construction of highway,airport and many other architectural projects.
General description:

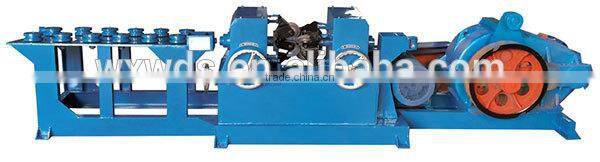

The rolling cassette plant equipped with carbide die (cassette) instead of fixed wire drawing die, it is installed upon the straight line wire drawing machine, the cassette matched with angular cutter gear and mump lubricate system, to produce the low carbon, middle carbon and high carbon steel wire, also can produce the copper, aluminum and titanium, it increased the drawing and rolling speed.
Technical parameter:
Capstan dia. : 600mm
Incoming wire dia.: 6.5mm, 6.0mm and 5.5mm
Outgoing wire dia.: 3.5-5mm
Total compressibility: 85%
Wire roller speed: 10m/s
Single motor power: 35 KW
Capstan number: according to the inlet wire diameter and outlet wire diameter
Gear description: Angular milling gear
Lubrication of gears and bearings: Oil pump compulsion lubrication

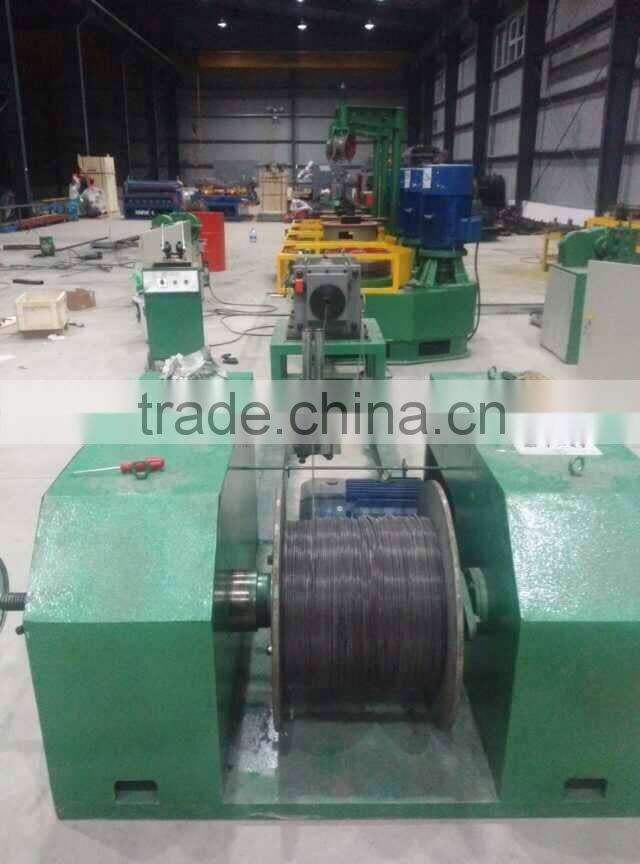

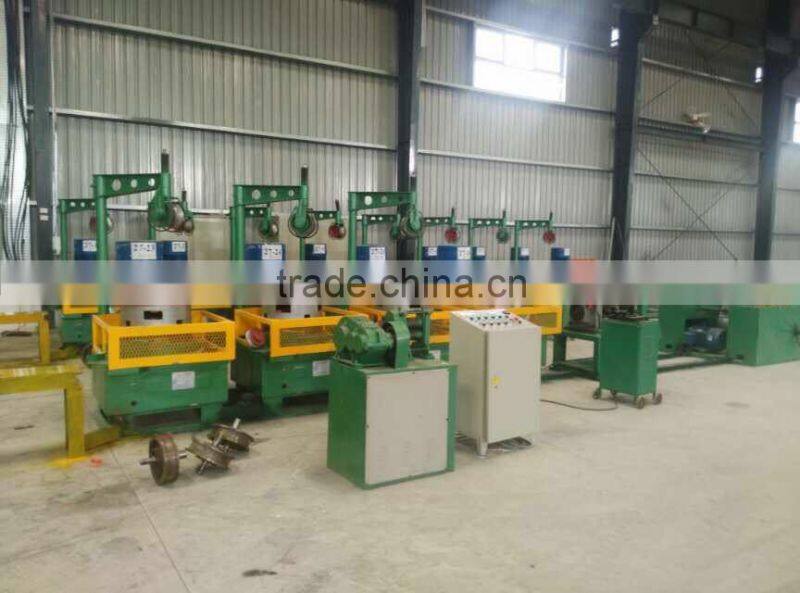

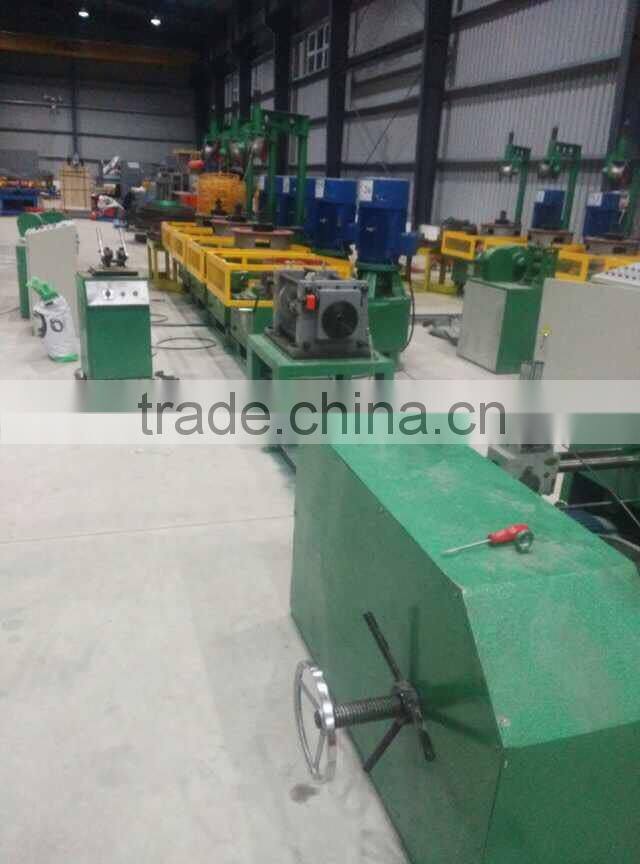

The whole production line which we ship to Turky last year for ribbed wire making
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area.
our clients and our machine
