Product Details
cold-rolled ribbed steel bars online straightening production line
This Cold-rolled ribbed steel bar production line equipment is rolled coiled steel by cold rolling,
cold rolling and then its surface to form three sides of a crescent reinforced by transverse ribs
straightening, processed into a cast or prefabricated construction directly cold-rolled ribbed
steel bars. This production line mainly rolls diameter of 4—12mm and ordinary low carbon
tray bar or low alloy tray bar with multiple cold rolling and a ribbing rolling, which finally forms
reinforcing steel with three-side crescent shape ribs. The raw material is hot-rolled low carbon
wire rod tray bar. It's widely applicable to highway, airport, irrigation works, city planning and
construction engineering.
cold-rolled ribbed steel bars online straightening production line
The details of our ribbed rolling machine
1 the max inlet diameter 9MM
Common size is 8MM-7MM, the output of 7MM is about 6 dun every 8 hours .
2 drawing speed: 40-50m/min adjustabe
3 Motor power: 30KW -4 level Y series motor 1476r/m
4 Drum diameter 700MM
5 Rolling pieces 6 pieces(flat 3 pieces and flower 3 piecs)
6 Outside size: 8000*1000*800mm
7. the brand of frequency converter : DELTA
8 electric cabinet brand: CHNT
9 drum type: horizontal type look like photos
Hydraulic type of wire straightening and cutting machine
1 wire straightening speed :50m/min
2 The range of wire straightening :ribbed wire 6-12MM.smooth wire rod:6-14MM
3 Hydraulic cutting longth: 500-12000mm adjustable
4 Motor power 18.5-4KW
5 outside machine size 6200*1150*1500mm

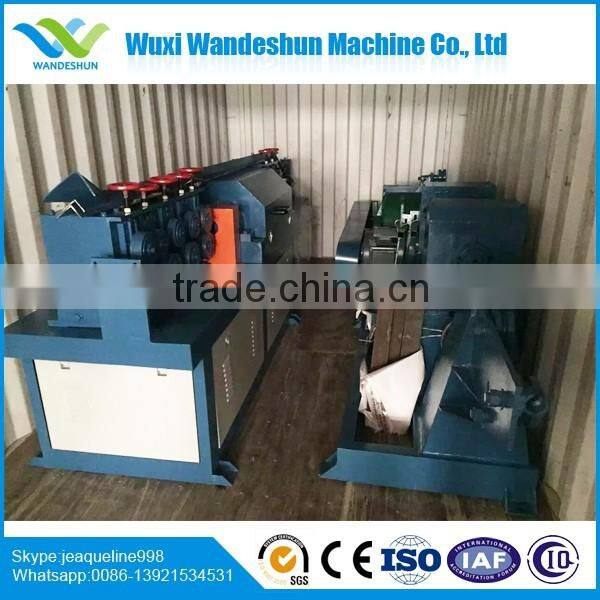

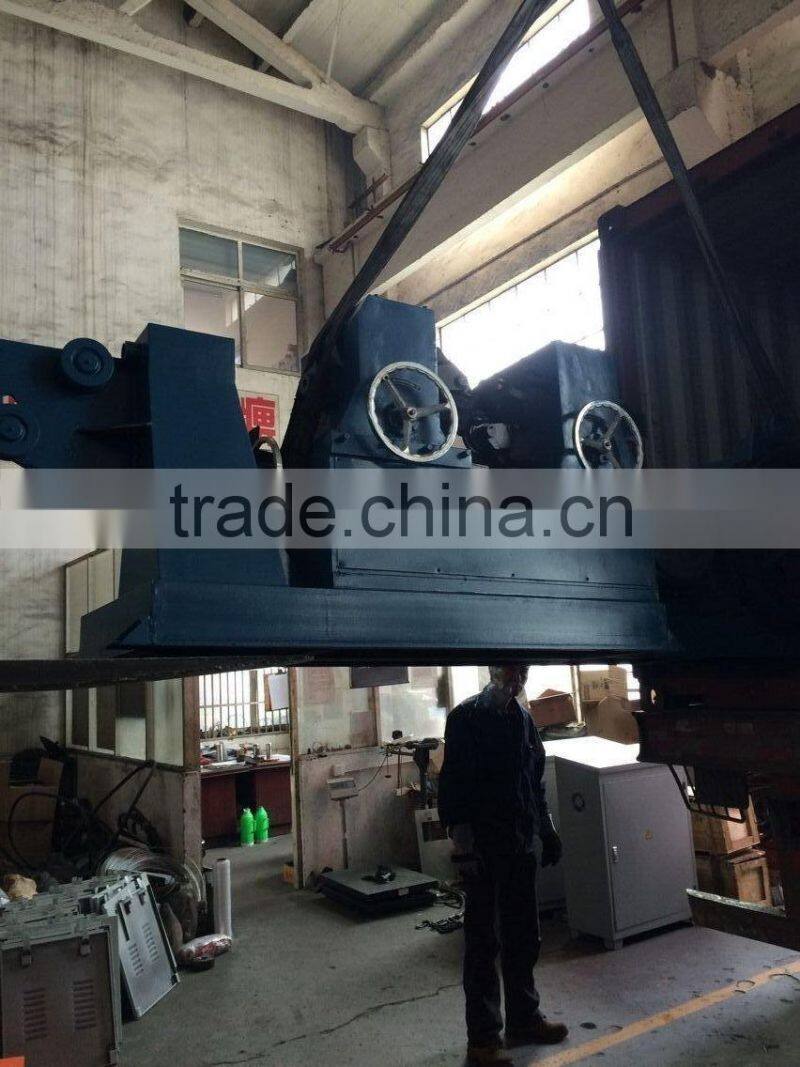

The whole production line which we ship to Nepal for ribbed wire making and cutting
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area.
