Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > High Precision Cnc Metal Cutting Machine

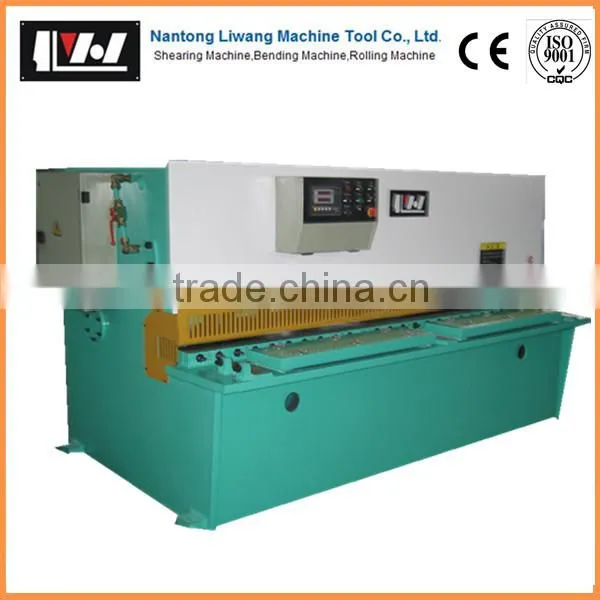

High Precision Cnc Metal Cutting Machine

Name: High Precision Cnc Metal Cutting Machine
Brand: liwanng
SKU: 106251841
Availability: InStock

High Precision Cnc Metal Cutting Machine thumbnail-1

High Precision Cnc Metal Cutting Machine photo-1

US$ 4,820 - 16,320 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

liwanng

Contact Supplier Request Quote Chat Now

Nantong Liwang Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name liwanng

Model Number QC12Y-6x3200

Voltage 380/220/415

Rated Power 7.5KW

Dimension(L*W*H) 3800X1700X1650MM

Weight 6400KGS

Certification CE ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

cnc metal cutting machine

Standard control system:E21, other control system optional

Features

1.This machine is of welded steel structure, hydraulic driving.The return stroke is completed by nitrogen return cylinder .

2.The machine is of good steadiness and safety while in use .

3. The blade clearance can be adjusted quickly and simply .

4. The back gauge adopts mechanical driving and equipped with counter display

5. The front gauge is counted with scale and positioned by block

6. The stroke of upper blade beam can be adjusted freely, which improves the efficiency when cutting narrow plates.

7. The machine is equipped with reliable protection barrier to ensure safety.

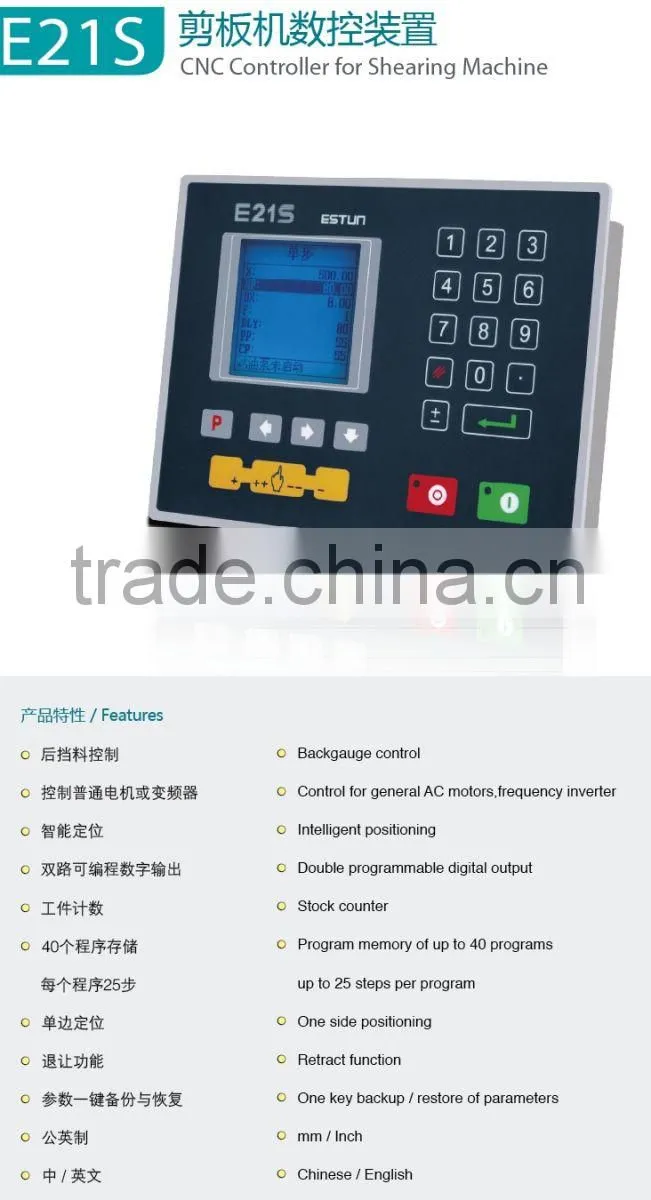

E21S CONTROLLER

Backgauge control

Control for AC motors,frequency inverter

Intelligent positioning

Double programmable digital output

Stock counter

Program memory of up to 40 programs,upto 25 programs per program

One side positioning

Retract function

One key backup/restore of parameters

mm/inch

Chinese/English

Main parameter

Model	Max. Shearing thickness (mm)	Max. Shearing width (mm)	Distance between uprights (mm)	Strokes (n/min)	Back gauge Stroke (mm)	Throat depth (mm)	Main power (kw)	Length (mm)	Width (mm)	Height (mm)	Weight (mm)
QC12Y-6X4000	6	4000	4220	10	20-600	150	7.5	4650	1850	1750	8000
QC12Y-6X6000	6	6000	6230	6	20-600	150	11	6650	2200	1950	17000
QC12Y-8X2500	8	2500	2720	14	20-600	150	11	3100	1750	1700	6800
QC12Y-8X3200	8	3200	3440	10	20-600	150	11	3800	1850	1750	7500
QC12Y-8X4000	8	4000	4230	8	20-600	150	11	4600	1900	1800	8500
QC12Y-8X6000	8	6000	6230	6	20-600	150	11	6700	2350	2050	19000
QC12Y-10X2500	10	2500	2720	10	20-600	150	11	3100	1750	1700	7500
QC12Y-10X3200	10	3200	3440	10	20-600	150	11	3800	1850	1750	8000
