cnc stainless steel shearing machine
Performance
1. Hydraulic drive, swing beam, and return of knife beam of hydraulic swing beam shearing machine are smoot
and prompted by nitrogen cylinder. It has steady and reliable performance.
2. The position of low blade of hydraulic pendulum shearing machine can be adjusted to ensure the equilibrium
of the gap after regrinding.
3. The back gauge of hydraulic swing beam shearing machine is set by motor.
4. The hydraulic pendulum shearing machine is equipped with lighting-alignment so as to align when shearing.
Competitive Advantages
1. The hydraulic swing beam shearing machine has integrated hydraulic system and its delivery time can be insured.
2. The hydraulic pendulum shearing machine has adjustable rake angle and mechanical stop. It is of steel welded structure and has good quality blade.

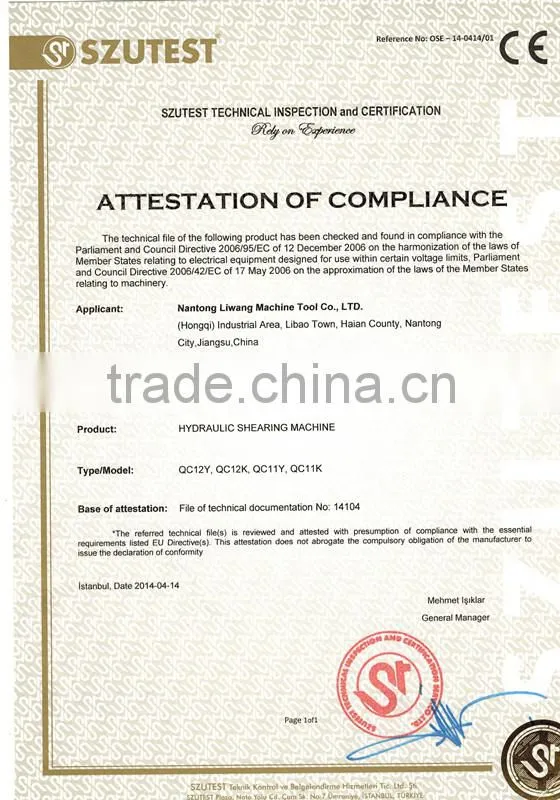

3. The hydraulic swing beam shearing machine is justified by ISO9001:2008 quality system. From finish machining,assembly, paint, to factory, every step should be under strict inspection to ensure that the percent of pass is up to 98%.
4. Our company has complete testing equipment, such as insulation resistance meter, hardness tester, grounding resistance tester, compression tester, sound level meter, digital temperature meter, level meter, etc.
5. Our company guarantees permanent technical advisory services. The warranty period for hydraulic pendulum shearing machine is one year. We will respond within 24 hours.
models of the metal sheet cutting machine, if there is no your machine, contact me
Specification |
Max. shearing thickness |
Max. shearing width |
Shearing angle |
Ram strokes |
Back gauge range |
Motor power |
mm |
mm |
° |
min |
mm |
kw |
|
QC12Y-4x2000 |
4 |
2000 |
1°30 |
20 |
20-600 |
4.0 |
QC12Y-4×2500 |
4 |
2500 |
1°30 |
18 |
20-600 |
4.0 |
QC12Y-4×3200 |
4 |
3200 |
1°30 |
14 |
20-600 |
5.5 |
QC12Y-4×4000 |
4 |
4000 |
1°30 |
10 |
20-600 |
5.5 |
QC12Y-6×2500 |
6 |
2500 |
1°30 |
17 |
20-600 |
7.5 |
QC12Y-6×3200 |
6 |
3200 |
1°30 |
14 |
20-600 |
7.5 |
QC12Y-6×4000 |
6 |
4000 |
1°30 |
10 |
20-600 |
7.5 |
QC12Y-6×5000 |
6 |
5000 |
1°30 |
7 |
20-600 |
7.5 |
QC12Y-6×6000 |
6 |
6000 |
1°30 |
6 |
20-600 |
11 |
QC12Y-8×2500 |
8 |
2500 |
1°30 |
14 |
20-600 |
11 |
QC12Y-8×3200 |
8 |
3200 |
1°30 |
10 |
20-600 |
11 |
QC12Y-8×4000 |
8 |
4000 |
1°30 |
8 |
20-600 |
11 |
QC12Y-8×5000 |
8 |
5000 |
1°30 |
7 |
20-600 |
15 |
QC12Y-8×6000 |
8 |
6000 |
1°30 |
6 |
20-600 |
15 |
QC12Y-10×2500 |
10 |
2500 |
1°30 |
10 |
20-600 |
11 |
QC12Y-10×3200 |
10 |
3200 |
1°30 |
10 |
20-600 |
11 |
QC12Y-10×4000 |
10 |
4000 |
1°30 |
8 |
20-600 |
11 |

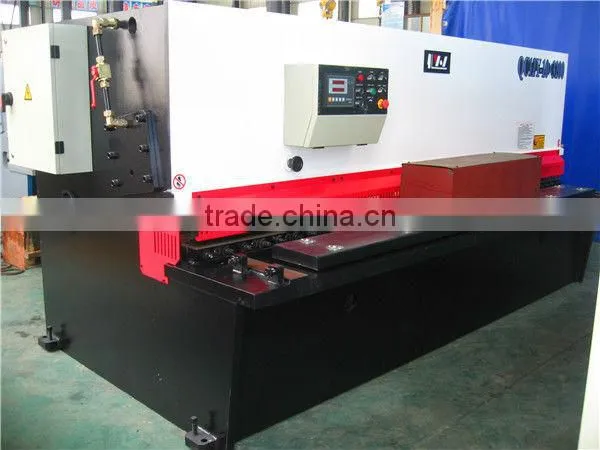

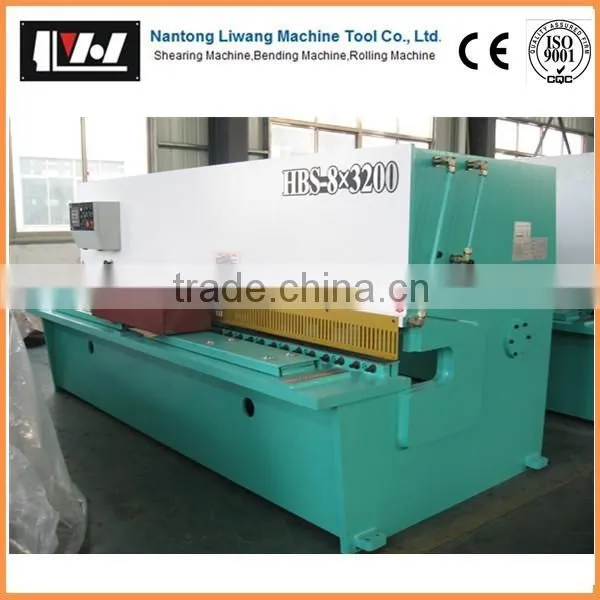

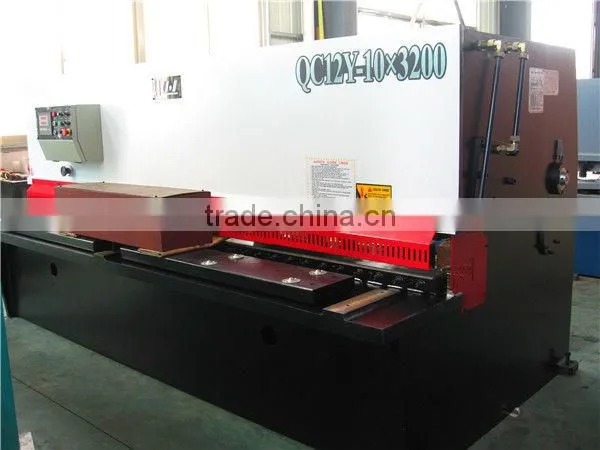

pictures of the hydraulic cutting machine
