1.Color:according to consumers’ request
2.Working voltage: 220/380/415V optional
3.Shearing blade material :6CrSi,9CrSi,6CrW2Si as optional
4.Electrical control system: Germany Siemens
5.Hydraulic control system: Germany Rexroth-valve or USA Omega valve
6.Control system: STUN E21 NC control
7.Shearing thickness range:0.1mm-40mm
8.Shearing width range:1 m-16 m
9.Shearing plate material available: Mild steel, stainless steel, aluminum steel .

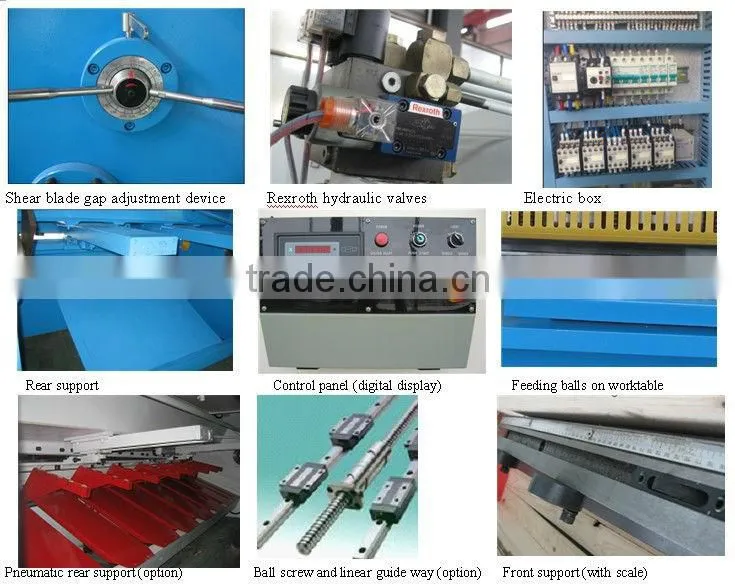

Features
1.holistic welding structure
2.back gauge fulfill forward and backward movement under the control of motor
3.E21 system is used to indicate the value of back gauge
4.all major electrical and hydraulic elements are assembled with high grade international brands.
5.pneumatic back support is optional
6.linear guide way and ball screw optional
7.can be produced according to your special needs
We have all types of shearing machine, tell us the material, thickness, width of the metal plate,we will recommend you the suitable type
Main parameters
Model |
Max. Shearing thickness (mm) |
Max. Shearing width (mm) |
Distance between uprights (mm) |
Strokes (n/min) |
Back gauge Stroke (mm) |
Shearing angle (º) |
Working table height (mm) |
Throat depth (mm) |
Main power (kw) |
QC12Y-6X4000 |
6 |
4000 |
4220 |
10 |
20-600 |
1.5 |
800 |
150 |
7.5 |
QC12Y-6X6000 |
6 |
6000 |
6230 |
6 |
20-600 |
1.5 |
850 |
150 |
11 |
QC12Y-8X2500 |
8 |
2500 |
2720 |
14 |
20-600 |
1.5 |
800 |
150 |
11 |
QC12Y-8X3200 |
8 |
3200 |
3440 |
10 |
20-600 |
1.5 |
800 |
150 |
11 |
QC12Y-8X4000 |
8 |
4000 |
4230 |
8 |
20-600 |
1.5 |
800 |
150 |
11 |
QC12Y-8X6000 |
8 |
6000 |
6230 |
6 |
20-600 |
1.5 |
850 |
150 |
11 |
QC12Y-10X2500 |
10 |
2500 |
2720 |
10 |
20-600 |
1.5 |
800 |
150 |
11 |
QC12Y-10X3200 |
10 |
3200 |
3440 |
10 |
20-600 |
1.5 |
800 |
150 |
11 |
Usage
Our warranty and contact information
1. The warranty period for equipment supplied by the Seller is 12 months
2.In the warranty period, all costs connected with warranty repairs and replacement of
warranty parts (Non-artificial factors) shall be carried, on behalf of the Seller.
3.our Engineers can provide overseas services
Scanning to get more information
CE certificate
