Help CenterSwaging Machine
Related Products
Specifications
Swagng machine1. Apply field: Bicycle, furniture, exercise equipment manufacturer
2. Pipe size: O.D.15.88mm~ O.D.72x1.2Tmm

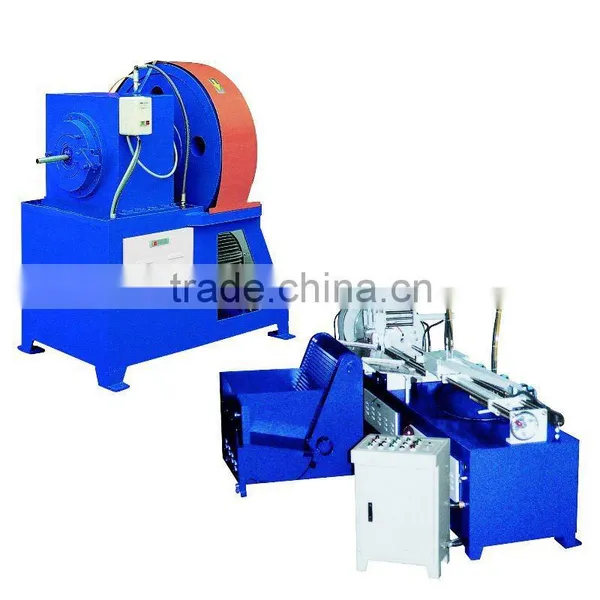

Swaging machine
1. Apply field: Bicycle, furniture and exercise equipment manufacturer
2. Roller configuration.
3. Specificaton:
|
Model |
2PCS Mold Type |
4PCS Mold Type |
Max. Pipe Length (MM) |
Max. Swaging Length (MM) |
HP(KW) |
Outlook (CM) |
Weight (KG) |
||
Auto/ Semi-Auto |
|
Suitable O.D. (mm) |
Cycle Time |
Suitable O.D. (mm) |
Cycle Time |
|||||
330A/S |
15.88-32x1.2T |
8 sec/pc |
X |
X |
760 |
300 |
10.13 |
327x95x158 |
2,424 |
|
400A/S |
15.88-32x1.2T |
16 sec/pc |
25-50x1.2T |
12sec/pc |
760 |
360 |
10.13 |
415x121x159 |
3,840 |
|
600A/S |
15.88-32x1.2T |
24 sec/pc |
25-50x1.2T |
20sec/pc |
800 |
560 |
10.13 |
470x120x159 |
4,200 |
|
800A/S |
15.88-32x1.2T |
34 sec/pc |
25-50x1.2T |
30sec/pc |
100 |
760 |
10.13 |
518x108x160 |
4,458 |
|
400LA/S |
15.88-32x1.2T |
18 sec/pc |
40-72x1.2T |
14sec/pc |
760 |
360 |
13.88 |
415x143x163 |
4,200 |
|
600LA/S |
25-50x1.2T |
20 sec/pc |
40-72x1.2T |
16sec/pc |
800 |
560 |
17.6 |
470x143x163 |
4,800 |
|
Manual |
330M |
32x1.2T |
8 sec/pc |
X |
X |
X |
300 |
7.7 |
132x83x143 |
1,730 |
400M |
32x1.2T |
10 sec/pc |
50x1.2T |
13sec/pc |
X |
360 |
7.7 |
135x90x145 |
2,200 |
|
Remark: 1. Swaging job not able to execute up to close end (as solid end).
2. No fundation required
3. Lubrication required during tappering.
