AUTO ALUMINUM/COPPER CUTTING M/C (HYDRAULIC TYPE)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SHUZ TUNG
Model Number:
HT-10-01B
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
SHUZ TUNG
Model Number
HT-10-01B
Rated Power
5HP
Weight
1450KG

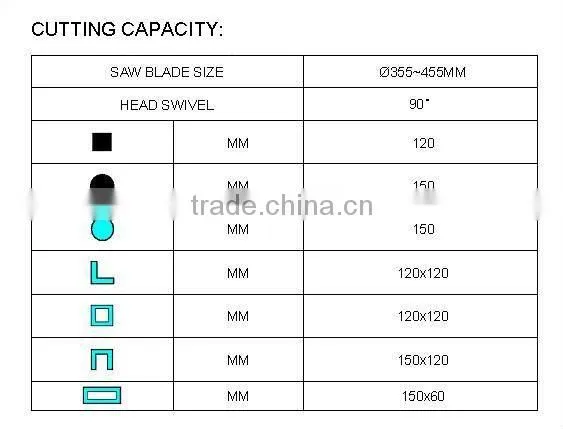

Specifications
1. EASY FRIENDLY OPERATION, WITH HIGH EFFICIENCY.
SPECIFICATION:
MAIN DRIVE MOTOR |
5HP OR 7-1/2HP (4 POLE) 50/60HZ |
|||
BLADE SPEEDS |
50HZ 3200 RPM/60HZ 3200 RPM |
|||
HEAD SWIVEL |
90º |
|||
CLAMPING VISE |
SINGLE |
|||
COOLANT PUMP MOTOR |
40 |
|||
MAX. CLAMPING CAPACITY |
150 |
|||
SAW BLADE SIZE |
DIAMETER |
MM |
TIP Ø355-Ø455 (STANDARDØ405) |
|
BORE |
MM |
Ø25.4 |
||
PIN HOLES |
MM |
-- |
||
BAR FEEDING LENGTH |
SINGLE STROKE |
MM |
5-610 |
|
DOUBLE STROKE |
MM |
5-1240 |
||
THREE STROKE |
MM |
5-1830 |
||
BAR FEEDING SERVO MOTOR |
-- |
|||
HYDRAULIC PUMP MOTOR |
3HP 4P |
|||
OPERATION PRESSURE |
20-30KG/CM² |
|||
MACHINE DIMENSIONS (LxWxH) |
MM |
1950x1300x2000 |
||
PACKING DIMENSIONS (LxWxH) |
MM |
2200X1300X2200 |
||
NET WEIGHT |
1450KG |
|||
GROSS WEIGHT |
1650KG |
|||
