NC Pipe Bending Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
NC Pipe Bender
Model Number:
NCB170
Payment & Shipping
Payment Methods:
Port of Shipment:
Taichung
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
NC Pipe Bender
Model Number
NCB170
Machine Type
Pipe and Tube Bending Machine
Raw Material
Pipe
Material / Metal Processed
Other, mild steel, stainless steel, alloy, aluminum
Power
Hydraulic
Automation
Manual
Certification
ISO 9001:2000
Specifications
Pipe Bending Machine1. Hydraulic control system
2. Max. bending capacity:Dia.170 x7.0MM
3. Max. bending angle:190 degree
Pipe Bending Machine
Specification:
1.) Designed with strong clamping and bending capacities for mass production requirements.
2.) PLC-BASED digital control for setting single or multiple degree bends.

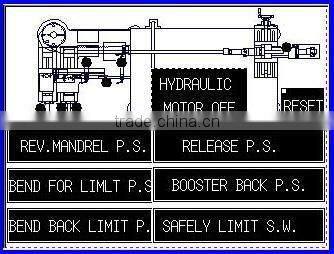

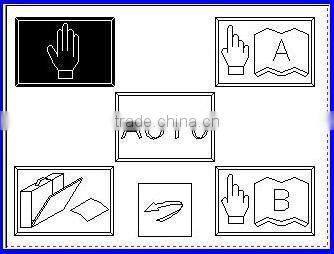

3.) Equipped with user-friendly touch screen for easy operation.
4.) Displayed alarm conditions on the screen for trouble-shooting.

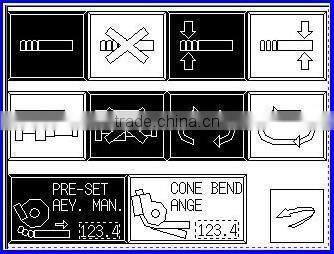

5.) Able to select parameter options for mandrel pre-reverse, booster (option) and spring back angles.
Capacity:
| MAX. BENDING CAPACITY | Ø170 x 7.0MM (ROUND) |
RANGE OF BENDING RADIUS (CLR) |
600MM |
RANGE OF BENDING |
190° |
LENGTH OF MANDREL |
5000MM |
BENDING SPEED |
5°/SEC. |
BENDING ACCURACY |
± 0.1mm |
NUMBER OF PROGRAM |
99 |
BENDING NUMBER |
20/PROGRAM |
POWER SOURCE |
40 HP |
DIMENSION (CM) |
830 x 285 x 200 |
WEIGHT (KG) |
20000 |
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
1983
Factory Size
Below 1,000 square meters
Total Employees
301 - 500 People
