Small Size Glass Printing Machine With Loading Table

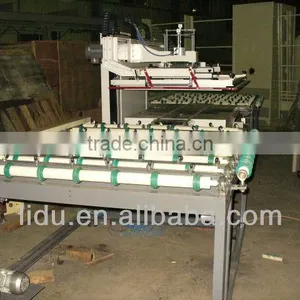

Small Size Glass Printing Machine With Loading Table thumbnail-1
Small Size Glass Printing Machine With Loading Table photo-1
US$ 30,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Glass Printing Machine
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Haining Lidu Glass Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Glass Printing Machine
Place of Origin Zhejiang, China
Brand Name LIDU
Model Number LDSMZ600
Voltage 380V
Power(W) 1.5Kw
Dimension(L*W*H) 1250*1020*1750mm
Weight 0.6t
Certification Other, CE, ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

glass printing machine
1.energy-saving
2.high production efficiency
3.strong stability
4.CE certificate

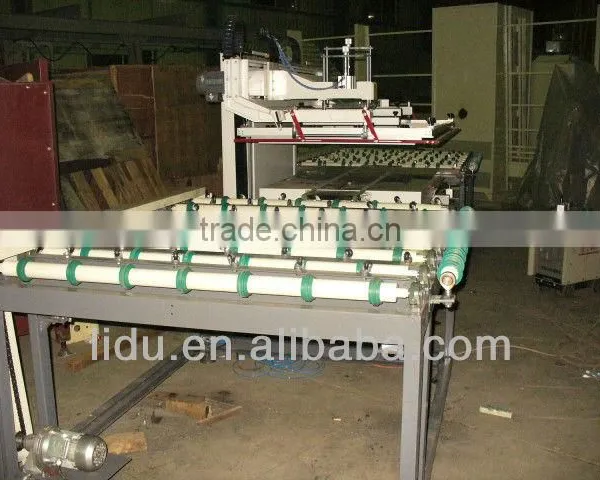

Small size Glass printing machine with loading table

 Small size Glass Printing Machine with loading table

General introduction of Glass Screen Printing Machine

Screen printing machine is a machine use printing technique to make colorful glass. It is widely used in decorative glass, architectural glass, furniture glass, appliance glass etc.

-------------------------------------------------------------------------------------------------------

Small size Glass Printing Machine with loading table

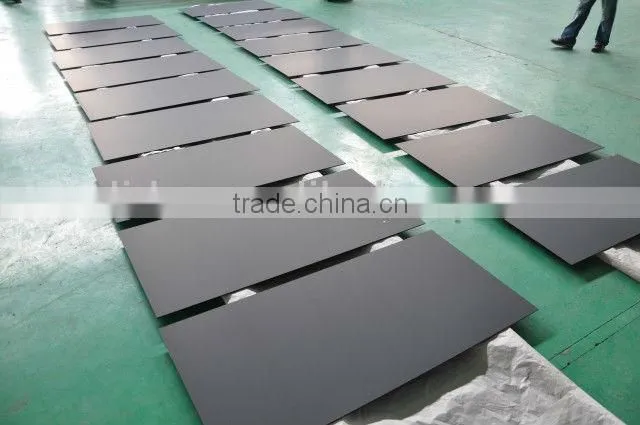

Final Production of small size glass printing machine

Working Principle of Glass Screen Printing Machine

Screen printing machine uses a woven mesh to support an ink-blocking stencil to receive a desired image. The attached stencil forms open areas of mesh that transfer ink or other printable materials which can be pressed through the mesh as a sharp-edged image onto a substrate. A fill blade or squeegee is moved across the screen stencil, forcing or pumping ink into the mesh openings for transfer by capillary action during the squeegee stroke. Basically, it is the process of using a stencil to apply ink onto another material such as glass, ceramics, paper etc that can keep the image onto its surface.

-------------------------------------------------------------------------------------------------------



Technical parameters of Glass Printing Machine:

Model

Max.Glass Size(mm)

Min.Glass Size(mm)

Max.Screen Size(mm)

Printing Table Size(mm)

Glass Thickness

(mm)

Power

(kw)

Weight

(T)

Machine Size(mm)

LDSZ2012

2000×1200

600×500

2800×1600

2450×1550

2.5-19

10

3.5

7200×2500×1300

LDSZ2519

2500×1900

700×500

3280×1800

3050×1600

2.5-19

12

4.3

8000×2500×1300

LDSZ2613

2600×1300

700×500

3380×1900

3050×1650

2.5-19

12.5

4.6

8220×2500×1300

LDSZ2617

2600×1700

700×500

3380×2300

3050×2050

2.5-19

12.5

5.1

9420×2500×1300

LDSZ3020

3000×2000

800×600

3780×2600

3450×2350

3-19

13.2

6.1

10620×2800×1300

LDSZ3725

3700×2500

1000×700

4380×3000

4050×2750

3-19

15.2

7.3

12420×3200×1300

LDSZ4525

4500×2500

1200×900

5280×3000

4950×2750

3-19

18.5

8.2

15120×3200×1300
The loading table:

Small size Glass Printing Machine with loading table

OUR SERVICE

 Your inquiry related to our product & price will be replied within 24hours.

 Well-trained & experienced staff are to answer all your inquiries in English of course.

 Working time: 9:00am - 6:00pm, Monday to Friday (UTC+8).

 OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

 Your business relationship with us will be confidential to any third party.

 Good after-sale service offered, please get back if you got question.

 For more details, please feel free to contact us. We will be more than happy to help in anyway we can.

Why choose us

1. We’re manufacturer, which have specialized in the line for many years.

2. We could pick you up to visit our factory,

3. Best after-sale service.

4. Competitive price, high quality and quick delivery for long business
