CNC Glass Cutting Machine

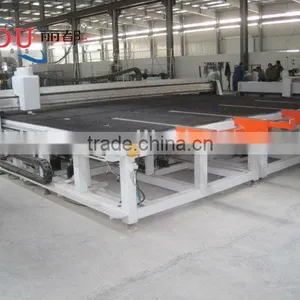

CNC Glass Cutting Machine thumbnail-1
CNC Glass Cutting Machine photo-1
US$ 1 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Glass Cutting Machine
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Haining Lidu Glass Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI or NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Glass Cutting Machine
Place of Origin Zhejiang, China
Brand Name LIDU
Model Number LDCJ3825
Voltage 380V
Power(W) 8Kw
Dimension(L*W*H) 4000*4000*1000mm
Weight 2.0t
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC glass cutting machine
1.easily operation
2.high processing precisionand low noise
nvenient maintenance
4.CE

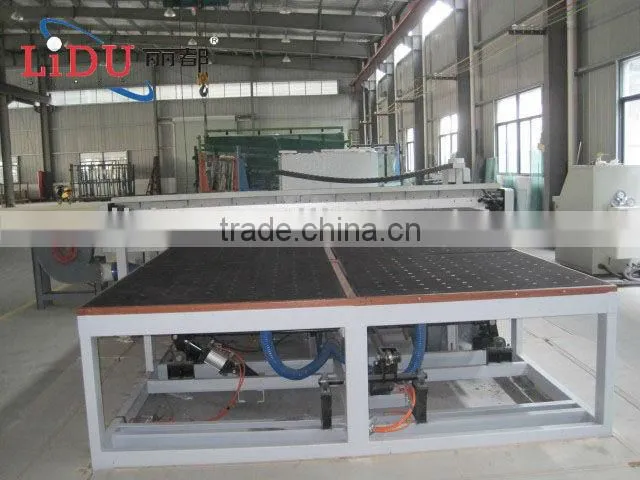

CNC glass cutting machine

CNC Glass Cutting Machine in the factory



Brief introduction of CNC Glass Cutting Machine:

This machine can do the beeline and shape cutting on flat glass. It adopts AC servo or stepping motor to synchronously drive axis X, Y and Z. The cutting precision can be guaranteed through the whole processing procedure. It is controlled by computer.Its features are: easy operation, moderate price and convenient maintenance.

-----------------------------------------------------------------------------------------------------

Main features of CNC Glass Cutting Machine:

1.The machine can carry out any kind of straight, diagonal or shape cutting precisely and fully automatically.

2. Sensor for glass presence verification to avoid damaging the cutting head should the glass sheet be absent, broken or badly positioned.

3. Structure optima: The equipment is made of welded steel pipes, body structure is designed and analyzed completely, which support to reach to the best situation. The sheet is made by 200mm space to ensure that the table sets never deformation.

4. High precise cutting shaft, plastic and metal cutting wheel are both used together, glass thickness from 3 mm to 19mm, taper shape is mechanical fuse the special design for protection the cutting head.

-------------------------------------------------------------------------------------------------------

Technical parameters of CNC Glass Cutting Machine:

Model

Max.Glass Size(mm)

Glass

Thickness

(mm)

Rotating Angle(°)

Max.Cutting Speed

(m/min)

Cutting Accuracy

(mm)

Air Pressure

(mpa)

Power

(kw)

Machine Size(mm)

Weight

(t)

LDCJP0808

800 x 800

3 ~ 19

0 ~ 360

30 ~ 60

±0.35

0.5

2

1300 x 1300

0.8

LDCJP1212

1200 x 1200

3 ~ 19

0 ~ 360

30 ~ 60

±0.35

0.5

2.5

1700 x 1700

1.1

LDCJP1512

1500 x 1200

3 ~ 19

0 ~ 360

30 ~ 60

±0.35

0.5

3

2000 x 1700

1.4

LDCJP2015

2000 x 1500

3 ~ 19

0 ~ 360

30 ~ 60

±0.35

0.5

3.5

2500 x 2000

1.7

LDCJP3020

3000 x 2000

3 ~ 19

0 ~ 360

30 ~ 60

±0.35

0.5

4

3500 x 2500

2





Why choose us

1. We’re manufacturer, which have specialized in the line for many years.

2. We could pick you up to visit our factory,

3. Best after-sale service.

4. Competitive price, high quality and quick delivery for long business.







Our service

 Your inquiry related to our product & price will be replied within 24hours.

 Well-trained & experienced staff are to answer all your inquiries in English of course.

 Working time: 8:30am - 5:30pm, Monday to Saturday (UTC+8).

 OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

 Your business relationship with us will be confidential to any third party.

 Good after-sale service offered, please get back if you got question.

 For more details, please feel free to contact us. We will be more than happy to help in anyway we can.
