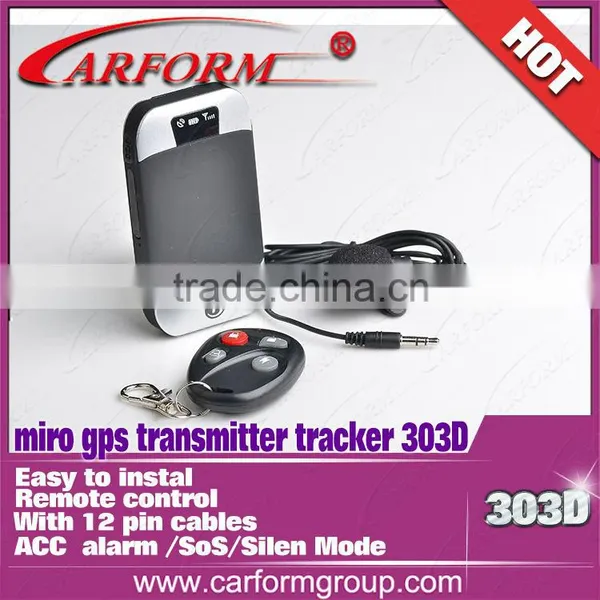

2014 large factory direct selling Mini Handheld and vehicle gps tracking device car/ Motorcycle gps tracker 303D

Specifications

1.Cut off the Oil &Power system
2.Handheld GPS Tracker TK303D
3.Locate at real time
4.Geo fence&SOS alarm,waterproof shell



Mini Handheld and vehicle gps tracking device

car/ Motorcycle gps tracker 303D











Summary

 Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.





Features

• Handheld and Vehicle purpose.
• Built-in GSM, GPS antenna, compact, elegant appearance.
• Support GPS and LBS (Location based service) double tracking solutions.
• Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
• Support configure the settings remotely
• Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.





Applications

Used widely for person, vehicle and other moving objects tracking.







Hardware Description









Specifications



Content	Specification
DIM	8.9×5.0×1.6cm
Weight	65g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS sensitivity	-159dBm
GPS accurancy	5m
GPS start time	Cold status  45s Warm status  35s  Hot status  1s
Car power supply	12 V -24V
Back up battery	Chargeable 3.7V 800mAh Li-ion battery
Storage Temp	-40°C to +85°C
Operation Temp.	-20°C to +65°C
Humidity	5%--95% non-condensing











Accessories( Different type at different prices)

This device is divided into the following four types according to the function parts:

Type A: Handheld, simple function, tracking, monitoring, with home charger, no external hardness.

Type B: Simple car solution with 3 PIN harness for 12/24V power supply & ACC detection, tracking and monitor.

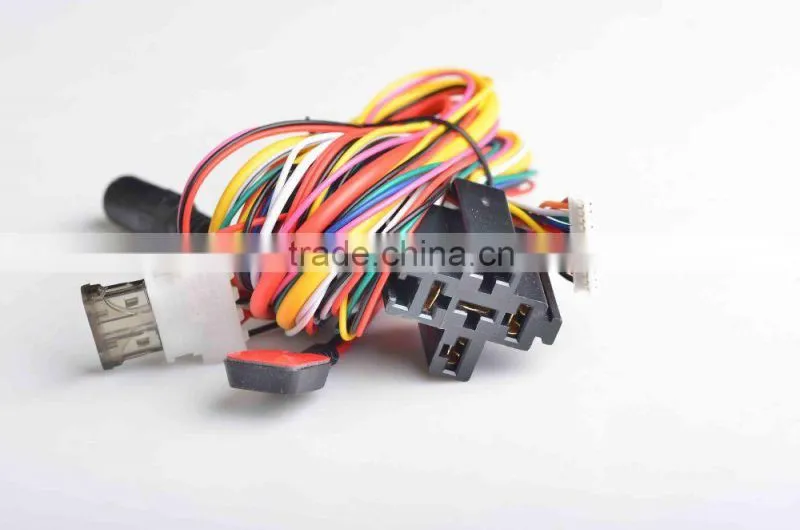

Type C: Fully functional vehicle with 12 PIN harness for ACC, door, cut off oil and power, Support fuel measurement

Type D: Add remote controller to ARM & DISARM on the basis of type C.



303A: http://carform.en.china.cn/product/1815518652-221941371/2014_Factory_Wholesale_Mini_Handheld_and_vehicle_gps_tracking_device_car_Motorcycle_gps_tracker_303A.html



303B: http://carform.en.china.cn/product/1815558441-221941371/2014_Factory_Wholesale_Mini_Handheld_and_vehicle_gps_tracking_device_car_Motorcycle_gps_tracker_303B.html



303C: http://carform.en.china.cn/product/1816975041-221941371/2014_Factory_Wholesale_Mini_Handheld_and_vehicle_gps_tracking_device_car_Motorcycle_gps_tracker_303C.html



303D: http://carform.en.china.cn/product/1814991610-213633651/2014_large_factory_direct_selling_Mini_Handheld_and_vehicle_gps_tracking_device_car_Motorcycle_gps_tracker_303D.html

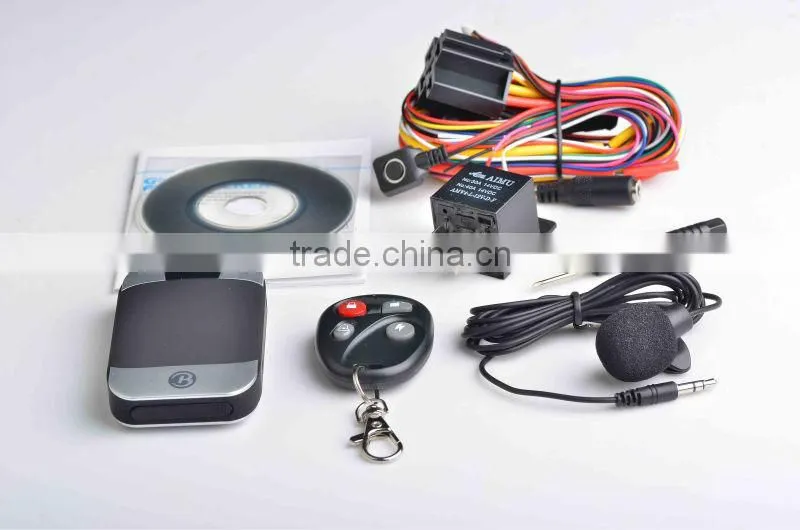

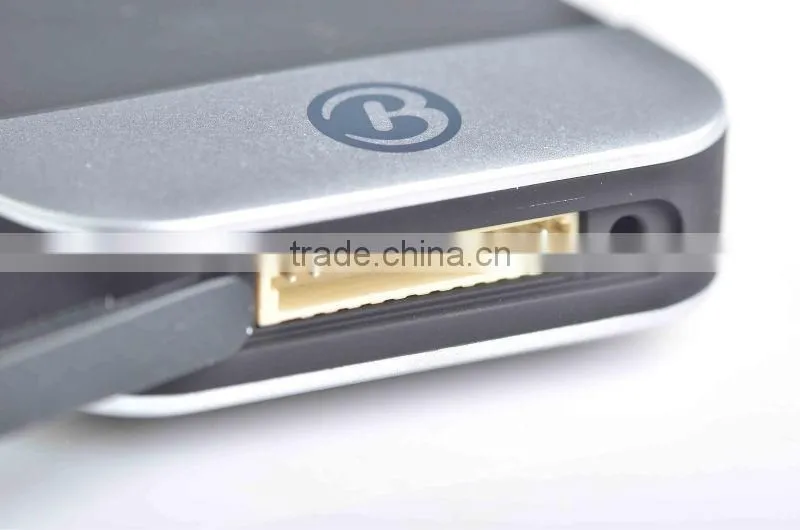

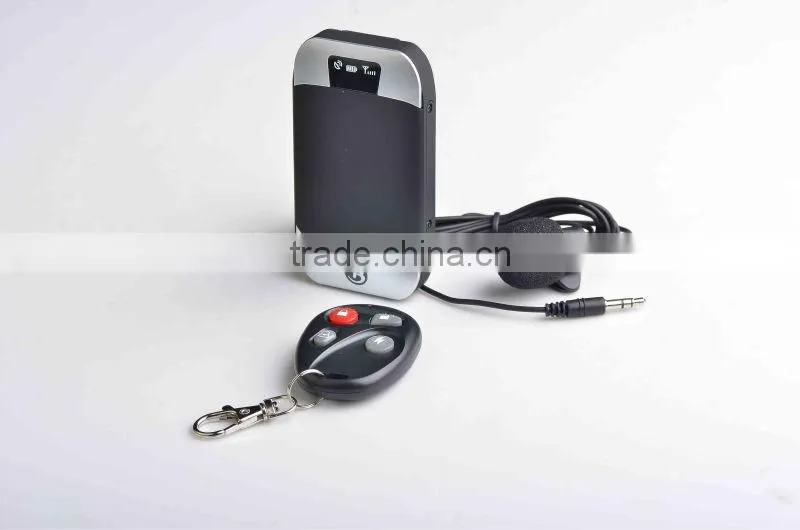

Detail photo





Advantages

1. Auto track continuously

2. Automatic update positions of vehicle turns

3. GPS drift suppression
4. Data logging
5. Forward the third parties’ message
6. Charges Inquiry
7. Alarm Function
8. Low battery alarm
9. External Power off alarm
10. GPS blind Spot alert
11. Multi-area management
12. ACC working alarm
13. Cut off the Oil and Power System
14. Arm
15. Set up arm by SMS
16. Set up arm by remote controller
17. Silent Mode
18. Set up silent mode by SMS
19. Set up silent mode by remote controller
20. DISARM
21. DISARM BY SMS
22. DISARM BY Remote controller
23. Alarms under Arm State
24. ACC alarm
25. Shock Sensor alarm
26. Alarm without GSM network service
27. Sleep Mode
28. Scheduled wake-up
29. Configure parameters by USB
30. Less GPRS traffic
31. Set up monitor center number
