transformer oil test equipment laboratory equipment

Specifications

1.Fully automatic type
2.Automatically timing, calculate, washing, dry, print
3.Advanced design
4.Easy to use
5.2 sample

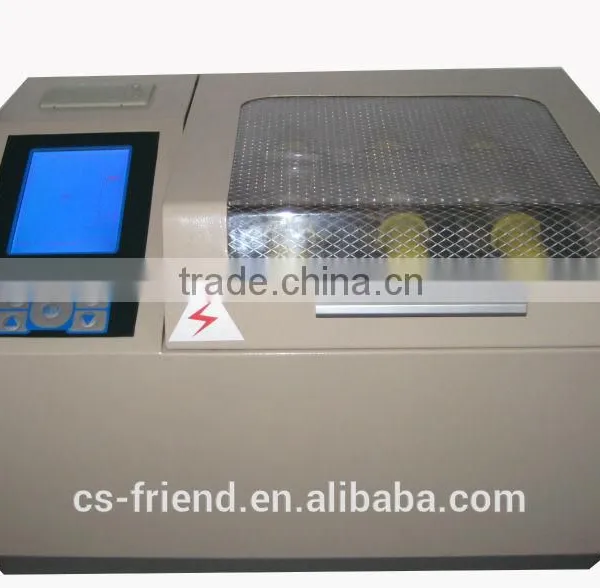

Product Name:Insulating liquids breakdown voltage at power frequency tester



Model: FDT-0531



Tag: Power supply, breakdown Power supply, Power supply insulating oil, insulating oil breakdown Power supply, transformer oil, millisecond pulses, high voltage, power supply



high voltage breakdown tester insulating oil breakdown voltage tester high voltage insulation tester transformer oil breakdown voltage tester voltage regulator tester screwdriver voltage tester neon voltage tester automotive voltage tester high voltage tester voltage tester penpocket voltage tester digital voltage tester



high voltage capacitor tester non contact voltage tester high voltage spark tester spersonal safety voltage detector power frequency voltage withstand testrc helicopter battery voltage indicatordc current & voltage dual display meter high voltage cable fault locator







Application range



Insulating liquids breakdown voltage at power frequency testeraccording to national standards and industry standards DL429.9 GB/T507 provisions designed and manufactured, using a special software and hardware anti-jamming technology, it can work in strong magnetic field, widely used in electric power, petroleum and scientific research departments .



Function Features



1, Microprocessor PID circuitry assures precise, reliable temperature control within ASTM specified tolerances throughout operating range of bath, Number of oil cup: 3 , automatically boost, maintaining, stirring, quiet place, calculate, print operations can be carried out within range 0-80KV oil circulation pressure test.



2, large-screen LCD display, simple operation.



3, This instrument is simple, operator simply simple setup, instrument will be set automatically in accordance with 1-3 oil sample pressure test. Each oil sample, each breakdown Power supply value and number of cycles will be automatically stored, test is complete, rmal printer can print out each time oil sample andaverage value of breakdown Power supply.



4, Retentive, can store 100 test results, andcan display current Ambient temperature andhumidity.



5, SCM control for constant speed boost, Power supply frequency Precision is 50HZ, makes whole process easy to control.



6, Integrated redundant overtemperature andlow liquid level cut-off circuitry Temperature controlling accuracy anduniformity



7, with a temperature measurement display function andsystem clock display.







Technical Specification



1,Test Power supply: 0-80KV (optional)



2, Power supply distortion rate: <3%



3, Boost speed: 2.0-3.5KV / S



4, Static discharge time: 15 minutes (adjustable)



5, Step Interval: 15 minutes (adjustable)



6, Boost frequency: 1-6 times



7, Booster Capacity: 1.5KVA



8, Measurement Precision: ± (2% +2 )



9, Power : AC220V/50Hz



10, power: 500W



11, Ambient temperature: 10°C ~ 45°C



12, Environment humidity: 30% ~ 85%











    12 months warranty

  If you have a problem with a part during the warranty period, please contact us and we will arrange a return and replacement of the same part.
