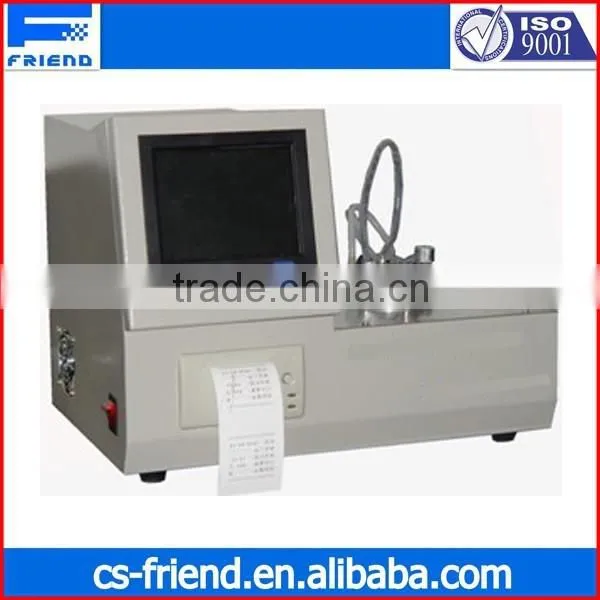

Help CenterAutomatic Low Temperature Flash Point Tester
Related Products
-
Automatic Petroleum Products Oil Cleveland Apparatus Pensky-martens Closed Cup Flash Flash TesterUS$ 1 - 6,000MOQ: 1 Set -
Pensky-martens Closed Cup Flash Point TesterNegotiableMOQ: 1 Set
-
ISO 1523 IP 170 Pensky Martin Flash Point ApparatusUS$ 1 - 6,000MOQ: 1 Set
-
ASTM D6450 Micro Automatic Closed Cup Flash Point TesterNegotiableMOQ: 1 Set
-
Engine Oil Automatic Cleveland Open-Cup Flash Tester (COC)NegotiableMOQ: 1 Set
Specifications
China manufacturer.1. automatic equipment
2.easy to operate and maintainace
3.high precision
4.HOT SALE
Scope
The instrument is based People's Republic of China Standard GB / T 5208 "Determination of flash
point - Rapid equilibrium closed cup method" requirements designed and manufactured to meet the
petroleum, chemical, coatings, paints, railway, aviation, electricity, commodity inspection, military and
research units closed flash point of petroleum products quick test requirements.
Features
1, using a large-screen LCD, keyboard-type operation, friendly man-machine interface
2, the instrument design automation, automatic detection, automatic printing of results
3, using semiconductor cooling devices, equipment is small, cooling speed, no noise
4, the test sample less each injection only 2 ml (solid or semi-solid samples for each injection 4 ml)
5, the instrument is fully in line with GB / T 5208 "Determination of flash point - Rapid equilibrium
closed cup method" standard design for fast, low-temperature test closed cup flash point of aim.
Technical Parameters
1 Power supply: AC 220V ± 10%, 50Hz;
2, the flash point detection range: -30 ~ 50 ℃;
3, the measurement precision: less than 2 ℃
4. Temperature accuracy: ± 0.5 ℃;
5, ignition devices: electronic ignition point guns;
6. Cooling method: semiconductor cooling (external cold water cycle);
7, the power supply voltage: ~ 220V ± 10%, 50Hz;
8 Power consumption: less than 300W;
9, the ambient temperature: 5 ℃ ~ 30 ℃;
10, relative humidity: 30 ~ 80RH.
| Packaging Detail: | standard export case |
| Delivery Detail: | 20 working days after receipt of the advance payment. |
warranty: 12 month
Friend has always adhere to the alliance strategies with customer unit development, and integrate enterprise resource advantages,with the pursuit of excellence in product quality, innovative and pragmatic attitude to customer needs and to provide professional pre-sales,
after-sales service.
Since the establish of Friend,it uphold the Western industrial civilization "artisan spirit" as the ideas, and constantly improve our products, and continuously improveour processes to meet market demand, and strive to create a new management models and new products to meet customer growing needs.
open cup flash point series |
|
|
|
||
Model |
FDT-0101 |
FDT-0131 |
FDT-0132 |
FDT-0172 |
FDT-0192 |
Standards |
ISO2592,ASTM D92 |
||||
Range |
ambient~360℃ |
ambient~400℃ |
ambient~400℃ |
ambient~400℃ |
ambient~400℃ |
Repeatability |
≤4℃ |
≤4℃ |
≤4℃ |
≤4℃ |
≤4℃ |
Reproducibility |
≤6℃ |
≤6℃ |
≤6℃ |
≤6℃ |
≤6℃ |
Automatic up/down |
N |
Y |
Y |
Y |
Y |
Display |
N |
BlueScreen |
Color screen |
||
Automatic detect |
N |
Y |
Y |
Y |
Y |
Detect Fire point |
N |
N |
Y |
N |
N |
with microprinter |
N |
Y |
Y |
Y |
Y |
Sample cup |
1 |
1 |
1 |
3 |
6 |
Ignition source |
gas |
Electronic ignition,gas flame |
|||
learn more(click--) |
FDT-0101 |
FDT-0131 |
FDT-0132 |
|
|
|
|
|
|
|
|
Pensky-Martens Closed Tester |
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|||||||||
Model(Click-----) |
FDT-0201 |
FDT-0231 |
FDT-0232 |
FDT-0233 |
FDT-0272 |
FDT-0234 |
FDT-0281 |
|||||||||
standards |
GB/T261 ASTM D93 ISO 2719 |
GB/T 5208,ISO 1523,ISO 3679 |
ASTM D6450,D7094, SH/T 0768-2005 |
|||||||||||||
Range |
ambient~250℃ |
ambient~300℃ |
-30 ~ +80℃ |
ambient~300℃ |
-30~50℃ |
ambient~300℃ |
||||||||||
Repeatability |
|
≤2℃ |
≤2℃ |
≤2℃ |
≤2℃ |
|
≤2℃ |
|||||||||
Reproducibility |
|
≤4℃ |
≤4℃ |
≤4℃ |
≤4℃ |
|
≤4℃ |
|||||||||
Automatic up/down |
|
Y |
Y |
Y |
Y |
|
Y |
|||||||||
Display |
|
Blue Screen |
Color screen |
Color screen |
Color screen |
|
Color screen |
|||||||||
Automatic detect |
|
Y |
Y |
Y |
Y |
|
Y |
|||||||||
Detect ignition |
|
Y |
Y |
Y |
Y |
|
Y |
|||||||||
Ignition source |
|
Electronic ignition,gas flame |
|
Arc ignition |
||||||||||||
Small sample |
|
N |
N |
N |
N |
|
1-2ml |
|||||||||
Sample cup |
|
1 |
1 |
1 |
3 |
|
1 |
|||||||||
