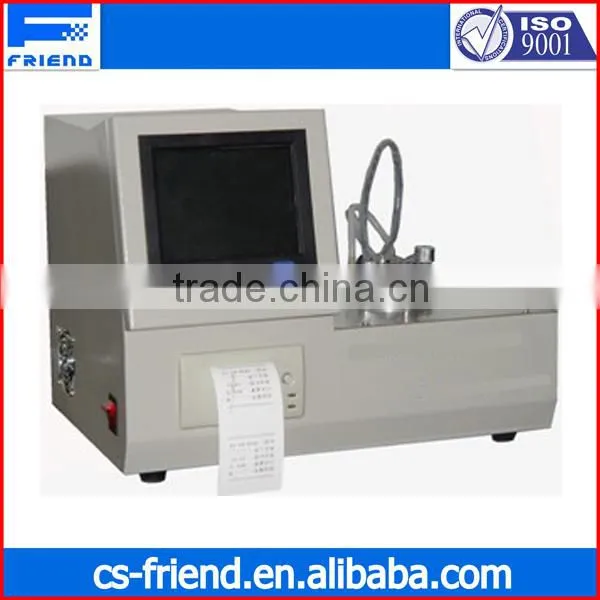

FDT-0234 pensky-martens closed cup flash point tester
FOB Price: |
US $1,000 - 6,000 / Set |
Port: |
China Main Port |
Minimum Order Quantity: |
1 Set/Sets |
Supply Ability: |
10000 Set/Sets per Month |
Payment Terms: |
L/C,T/T,Western Union |
Quick Details
Place of Origin: |
Changsha China (Mainland) |
Brand Name: |
Friend |
Model Number: |
FDT-0234 |
Power: |
Electronic |
Usage: |
Flash Point Tester |
Power Supply: |
AC 220V+/-10%, 50 Hz |
Test Method: |
Rapid Equilibrium Closed Cup Method |
|
|
|
|
Packaging & Delivery
Packaging Detail: |
wooden case for each set |
Delivery Detail: |
10 to 20 days as per order quantity |
Specifications
Closed Cup Flash Point Tester
1.Rapid Equilibrium Closed Cup Method
2.Temperature range: -30C-50C
3.Relative humidity: 30~80%
Rapid Low Temperature Closed Cup Flash Point Tester FPTCC1
Application
1. Produce Standard: GB/T5208 “Test Methods for Flash Point (Rapid Equilibrium Closed Cup Method)”. ISO 1523 and ISO 3679
2. Apply field: petroleum, chemistry, paints, railway, aviation, power plant, inspection, military, and scientific research
3. Used for: testing flash point of petroleum products
4. Testing Way: closed cup flash point determination for paints, adhesives, solvents, petroleum,
and relative petroleum products
5. Flash points range: 30°C~50°C.
Main Technical Characters
1. It is designed as per GB/T5208 (Test Methods for Flash Point (Rapid Equilibrium Closed Cup Method)”. It
can determine closed cup flash point at a low temperature rapidly.
2. It adopts semiconductor refrigeration device and cooling water refrigeration device. It is small, convenient and
with rapid refrigeration speed.
3. It needs fewer samples. The sample for each test is only 2 ml (For solid or semisolid sample, it is 4 ml);
4. The test can be automatically completed excepting flame ignition. The test data can be automatically printed.
Main Technical Specification and Parameters
1. Power supply: AC 220V±10%, 50 Hz;
2. Flash point measurement range: -30~50°C;
3. Measurement accuracy:
(1) Repeatability: less than 2°C;
(2) Reproducibility: less than 2°C;
4. Temperature controlling accuracy: ±0.5°C;
5. Igniter: an electron igniter;
6. Refrigeration type: It uses semiconductor for refrigeration (It connects to outer cooling water);
7. Power supply: AC 220V±10%, 50 Hz;
8. Total power consumption: not more than 300 W;
9. Ambient temperature: 5°C~30°C;
10. Relative humidity: 30~80%;
Model |
FDT-0281
|
FDT-0231
|
FDT-0232
|
FDT-0272
|
FDT-0233
|
FDT-0234
|
Standard |
ASTM D6450,D7094, SH/T 0768-2005
|
GB/T261 ASTM D93 ISO 2719
|
GB/T261-2008 ASTM D93 ISO 2720
|
GB/T261-2008 ASTM D93 ISO 2719
|
GB/T261 ASTM D93 ISO 2719
|
GB/T 5208,ISO 1523,ISO 3679
|
Range |
ambient~30°C |
10-40℃ |
10-40℃ |
ambient~300℃ |
-30 ~ +80℃ |
-30~50℃ |
Repeatability |
≤2°C |
≤2°C |
≤2°C |
≤2°C |
≤2°C ≤4°C |
|
Reproductively |
≤4°C |
≤4°C |
≤4°C |
≤4°C |
||
Automatic up/down |
Y |
Y |
Y |
Y |
Y |
Y |
With micro printer |
Y |
Y |
Y |
Y |
Y |
Y |
Display |
N |
N |
Y |
Y |
Y |
Y |
Communication port |
Y |
Y |
Y |
Y |
Y |
Y |
Sample |
1ml |
Standard oil cup |
Standard oil cup |
Standard oil cup |
Standard oil cup |
Standard oil cup |
Payment & Shipping Terms |
Supply Capacity |
||
Payment term : |
T/T or L/C |
Production capacity : |
100pcs/month |
MOQ: |
1 pc |
Packing : |
Wooden case |
Price |
negotiable |
Delivery way |
By Air |
Means of transport : |
FOB , CIF , CFR |
Delivery time : |
10 days |
12 months warranty
If you have a problem with a part during the warranty period, please contact us and we will arrange a return and replacement of the
we are a supplier of the :Oil Testing Equipment
Open Cup Flash Point Tester
1.Open Cup Flash Point Tester
2. Cleveland Open Cup Flash Point Tester
3.Auto Cleveland Open Cup Flash Point Tester
4. Semi-auto Cleveland Open Cup Flash Point Tester (Digital Display)
5. Automatic COC Flash Point Tester
Closed Cup Flash Point Tester
1 . PMCC Flash Point Tester
2.Auto PMCC Flash Point Tester
3. Semi-auto PMCC Flash Point Tester (Digital Display)
4. Automatic PMCC Flash Point Tester
1. What's the warranty?
Normally 12 months
2.Does the power supply can customized?
YES ,if you need customized power supply,pls tell us when you put the order.
3.What's the production time?
Usually10 days for production, some equipments need extra time to debug.if have Stock can delivery within one week
4.What's the Dlivery method ?
Light-weight cargo is usually by express , Air transport and sea shipping is acceptable (provide with safty packing)
5.What's the delivery time?
According to different method and country , express will be 3~15 days
6. How to install and operate?
According to each instruction manual which sent with equipment. ( We also provide after-sale technical support)
7.What's the payment term?
Usually we do 30%TT deposit ,70%TT balance before shipping.LC,Western Union,MoneyGram is acceptable
