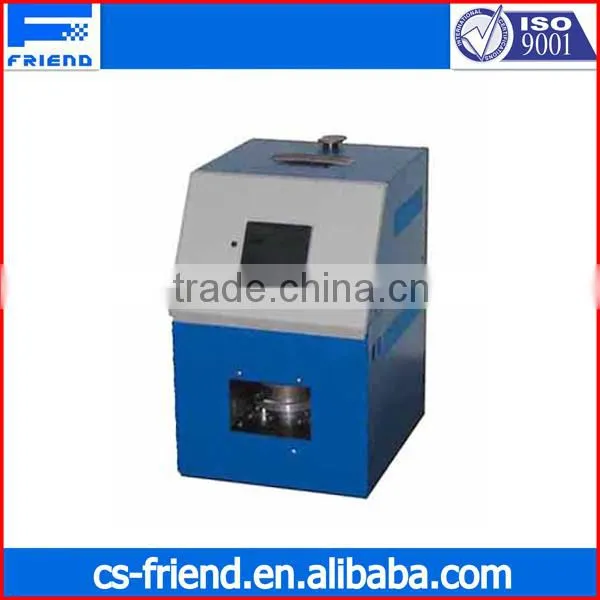

ASTM D6450 Micro Automatic Closed Cup Flash Point Tester

ASTM D6450 Micro Automatic Closed Cup Flash Point Tester thumbnail-1
ASTM D6450 Micro Automatic Closed Cup Flash Point Tester photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
friend instrument
Model Number:
FDT-0281
Contact Supplier Request Quote Chat Now
Changsha Friend Experimental Analysis Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name friend instrument
Model Number FDT-0281
Power Electronic
Usage Auto Testing Machine



Product Name: Micro Automatic Closed cup flash point tester



Model: FDT-0281



Tags: flash, flash point tester, flash point, open flash point, low flash point, flash point trace



Scope



Micro Auto Flash Point Tester instrument is based on ASTM D6450, D7094, SH / T 0768-2005 standard design and manufacture. Testing process is fully automated test sample in a closed cavity detection, security no open flame, and avoid outside interference with bad odor, High efficiency heating, cooling module can be quickly and accurately, continuous test sample.



Features



1, automatic barometric pressure correction for improved flash point test accuracy;



2, built-in cooling module that allows rapid sample cup reduced to Ambient temperature, remove the sample cup and sample loading, cleaning is very easy;



3, the automatic fix atmospheric pressure and calculate the correction value;



4, portable dual-use design, suitable for laboratory, field testing;



5, touch screen, convenient Chinese operation menu;



Technical parameters



1, Measuring range: room temperature ~ 300 °C



2, Temperature accuracy: 0.1 °C



3, Test time: 3-5min



4, Sample volume: 1ml, 2ml



5 Ignition: arc ignition



6, Data storage: more than 1000 measurements.



7, Interface: computers, printers.



8, Power: 200 V / 230V AC, 50Hz, 65W; Car: 12V/8A DC



9, Size: 196x315x175mm

10, weight: 8kg”



Model

FDT-0281



FDT-0231



FDT-0232



FDT-0272



FDT-0233



FDT-0234



Standard

ASTM D6450,D7094, SH/T 0768-2005



GB/T261   ASTM D93   ISO 2719



GB/T261-2008     ASTM D93 ISO 2720



GB/T261-2008   ASTM D93 ISO 2719



GB/T261 ASTM D93   ISO 2719



GB/T 5208,ISO 1523,ISO 3679



Range

ambient~30°C

10-40°C

10-40°C

ambient~300°C

-30 ~ +80°C

-30~50°C

Repeatability

≤2°C

≤2°C

≤2°C

≤2°C

≤2°C

≤4°C

Reproductively

≤4°C

≤4°C

≤4°C

≤4°C

Automatic up/down

Y

Y

Y

Y

Y

Y

With micro printer

Y

Y

Y

Y

Y

Y

Display

N

N

Y

Y

Y

Y

Communication port

Y

Y

Y

Y



Y



Y

Sample

1ml

Standard oil cup

Standard oil cup

Standard oil cup

Standard oil cup

Standard oil cup





flash point related

ASTM D6450 Micro Automatic Closed cup flash point testerASTM D6450 Micro Automatic Closed cup flash point testerASTM D6450 Micro Automatic Closed cup flash point tester ASTM D6450 Micro Automatic Closed cup flash point testerASTM D6450 Micro Automatic Closed cup flash point tester ASTM D6450 Micro Automatic Closed cup flash point tester

Model

FDT-0281



FDT-0231



FDT-0232



FDT-0272



FDT-0233



FDT-0234



Standard

ASTM D6450,D7094, SH/T 0768-2005



GB/T261   ASTM D93   ISO 2719



GB/T261-2008     ASTM D93 ISO 2720



GB/T261-2008   ASTM D93 ISO 2719



GB/T261  ASTM D93   ISO 2719



GB/T 5208,ISO 1523,ISO 3679



Range

ambient~30°C

10-40℃

10-40℃

ambient~300℃

-30 ~ +80℃

-30~50℃

Repeatability

≤2°C

≤2°C

≤2°C

≤2°C

≤2°C

≤4°C

Reproductively

≤4°C

≤4°C

≤4°C

≤4°C

Automatic up/down

Y

Y

Y

Y

Y

Y

With micro printer

Y

Y

Y

Y

Y

Y

Display

N

N

Y

Y

Y

Y

Communication port

Y

Y

Y

Y



Y



Y

Sample

1ml

Standard oil cup

Standard oil cup

Standard oil cup

Standard oil cup

Standard oil cup



                                            ASTM D6450 Micro Automatic Closed cup flash point tester
