oil and gas line pipes(pipe manufacturing in china)
What we offered is based on API SPEC.5L(45th)
we export API 5L oil pipes to Europe, North America,Saudi Arabia india,dubai and etc. high quality and competitive price
Seamless Line pipe
API 5L line pipe
Features:
| OD | 42-57mm |
| WT | 3.5-7.5mm |
| Grade | GrB X42 |
| Length | =<12m |
| surface | Oiled or black painted to prevent rust |
| inner packing | Caps on two ends of every pipe |
| outer packing | Hexagonal shape bundles wrapped with strong steel trip or wooden carton packing or according to customers' requests |
| usage | Used for conveying gas, water and petroleum |
Dimension Tolerance:
Standard | O.D Tolerance | W.T Tolerances | |
API SPEC 5L | D<60.3 | +0.41mm,-0.40mm | +15% -12.5% |
D no less than 60.3 | +0.75%,-0.40mm | ||
Mechanical Properties:
Standard | Grade | Yiled strength
| Tensile strength | elongation | Impact energy | ||
API 5L | Min | Max | Min | Max | See table 3 of API 5L | Min | |
B | 241 | 448 | 414 | 758 | 41(27) | ||
X42 | 290 | 496 | 414 | 758 | 41(27) | ||
X46 | 317 | 524 | 434 | 758 | 41(27) | ||
X52 | 359 | 531 | 455 | 758 | 41(27) | ||
X56 | 386 | 544 | 490 | 758 | 41(27) | ||
X60 | 414 | 565 | 517 | 758 | 41(27) | ||
X65 | 448 | 600 | 531 | 758 | 41(27) | ||
X70 | 483 | 621 | 565 | 758 | 41(27) | ||
Notes: Impact requirements in transverse direction are shown in brackets
Payment: TT or Irrevocable LC at sight
Delivery: FOB / CFR / CIF
Supply Ability: 5000MT/month
Delivery Lead Time: 45days against deposit or L/C receipt

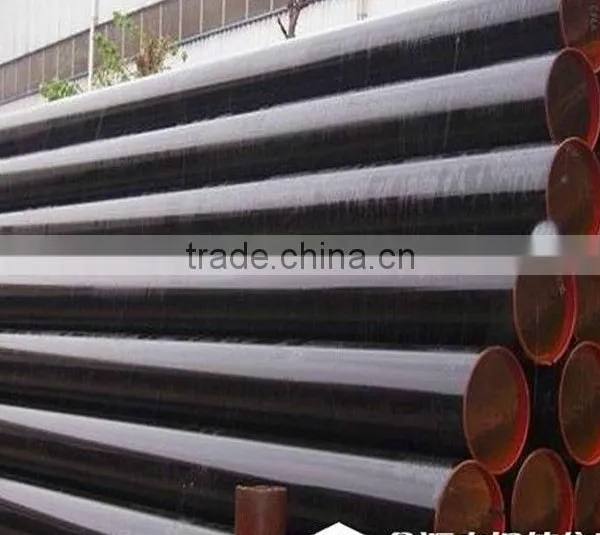

products pics
Factory pics
Packing Way‘
