Material:
pipe line(submarine or undersea for conveying liquid)
All we offer is based on API 5L 9th
API 5L line pipe
Features:
OD: 42-356mm
WT: 3.5-40mm
Material: GrB X42 X46 X52 X56 X60 X70 X80
Length: =<12m
Surface:varnishing or black painting
Marking: As per customer's requirement
Inner packing:
Caps on two ends of every pipe
Outer packing:
Hexagonal shape bundles wrapped with strong steel trip or wooden carton packing or according to customers' requests
Usage:
Used for conveying gas, water and petroleum
Dimension Tolerance:↓
Standard |
O.D Tolerance |
W.T Tolerances |
|
API SPEC 5L |
D<60.3 |
+0.41mm,-0.40mm |
+15% -12.5% |
D≥60.3 |
+0.75%,-0.40mm |
||
Mechanical Properties:
Standard |
Grade |
Yiled strength
|
Tensile strength |
elongation |
Impact energy |
||
API 5L |
|
Min |
Max |
Min |
Max |
See table 3 of API 5L |
Min |
B |
241 |
448 |
414 |
758 |
41(27) |
||
X42 |
290 |
496 |
414 |
758 |
41(27) |
||
X46 |
317 |
524 |
434 |
758 |
41(27) |
||
X52 |
359 |
531 |
455 |
758 |
41(27) |
||
X56 |
386 |
544 |
490 |
758 |
41(27) |
||
X60 |
414 |
565 |
517 |
758 |
41(27) |
||
X65 |
448 |
600 |
531 |
758 |
41(27) |
||
X70 |
483 |
621 |
565 |
758 |
41(27) |
||
Notes: Impact requirements in transverse direction are shown in brackets

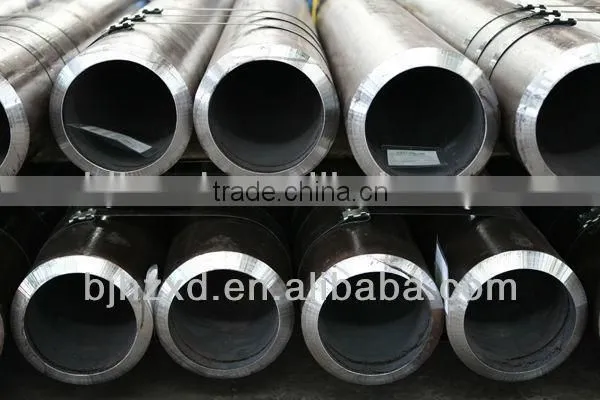

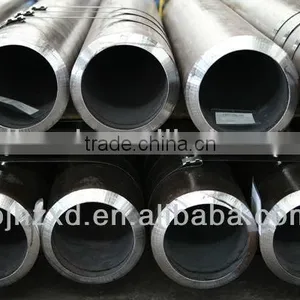

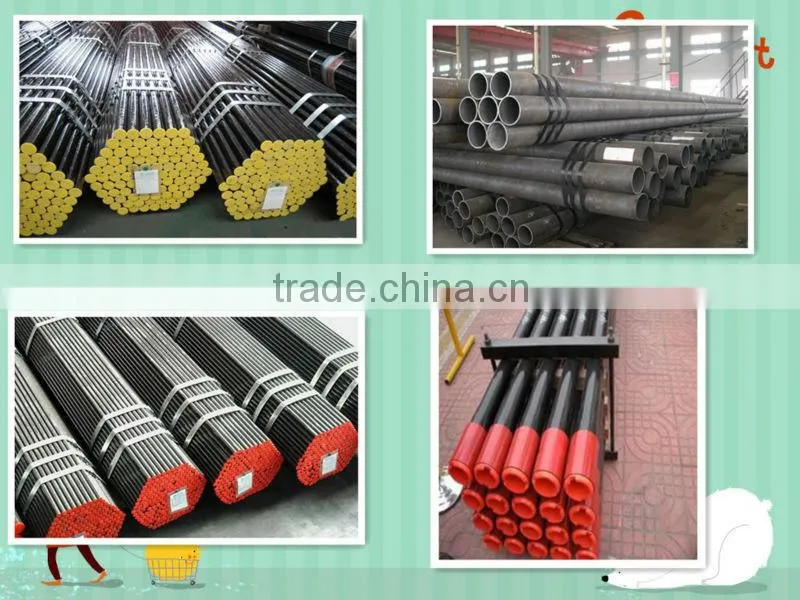

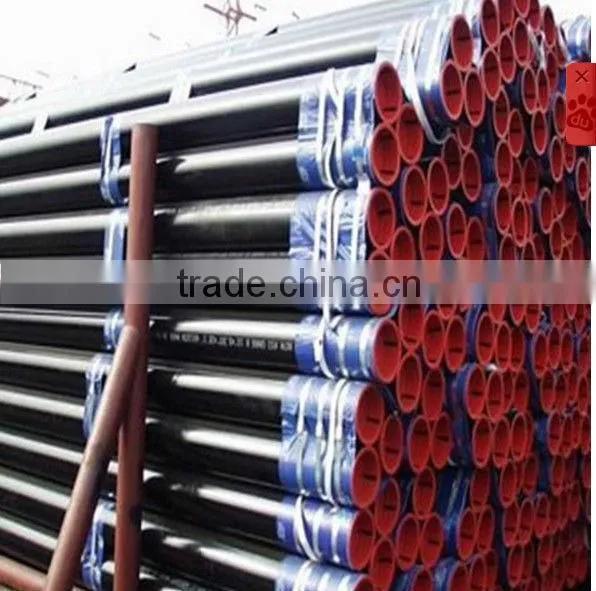

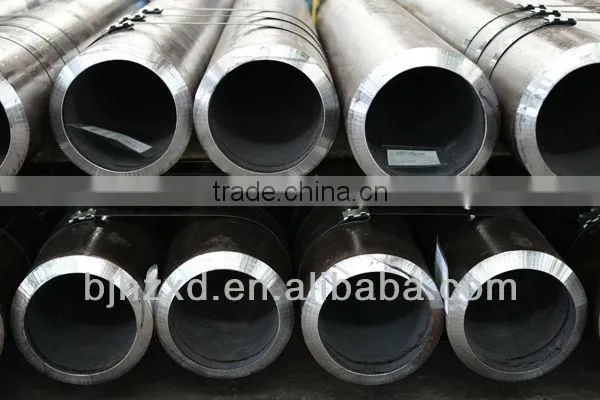

Line pipes pics↓

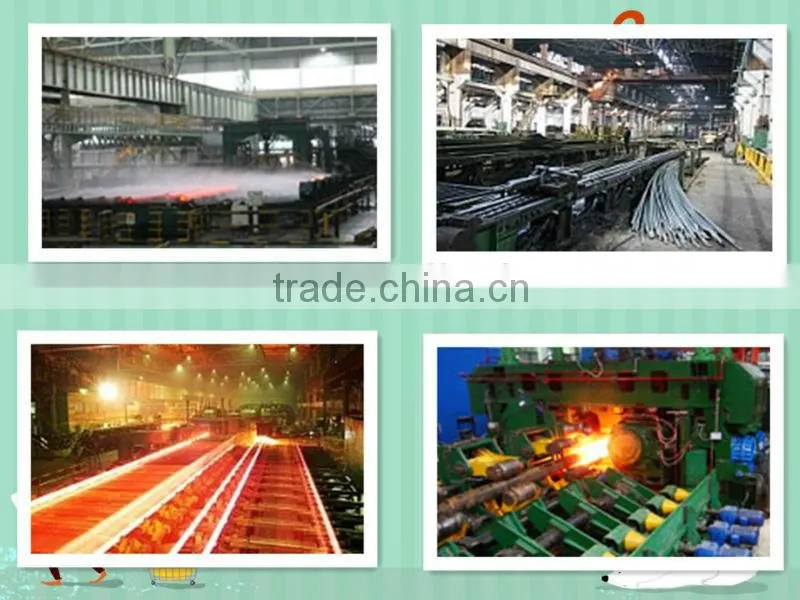

workshop as below showing↓

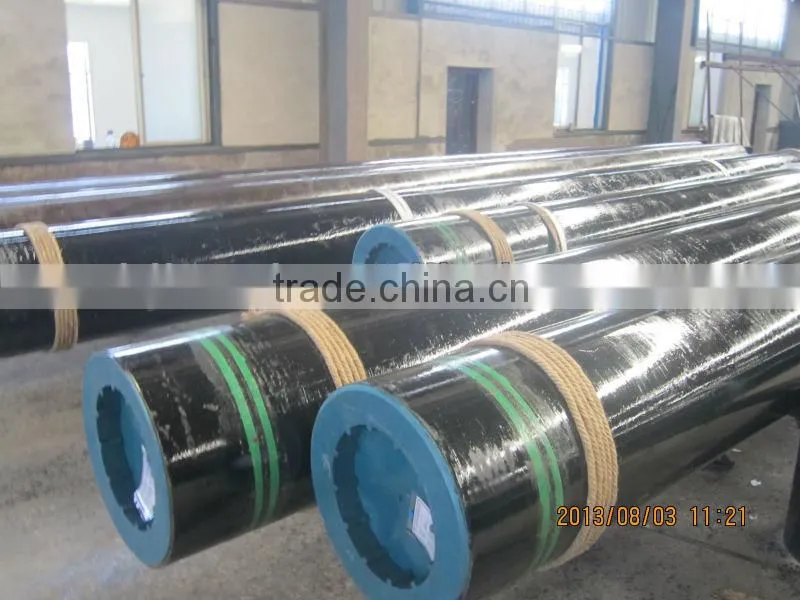

Packing ways:↓
certificates as below showing ↓
Contact way as below↓
Your business is very important for us, pls kindly offer us the opportunity, trust us to bring you more benifits.
Yous Sincerely
Ms Magi
