boiler tubes (T22 steel pipes,boiler tubes,black steel pipe )
1)Product Name: Boiler Tubes
2)Outer Diameter: 10 mm - 114.3 mm
3)Wall Thickness: 2 mm - 14 mm
4)Executive Standard: DIN17175, GB3807-2008, GB5310-2008
5)Steel Grade: St35.8, St45.8, 13CrMo44, 13CrMo910, 13Mo3
6)Application: It is used for the pipeline of boiler industry.
7)Detailed Description: Prompt delivery,good package,low price and perfect quality.
8)Packing:Hexangular packing in bundles
9)Export: Europe, North America, the Middle East, Africa, Asia and other countries and regions, well received by consumers!
Welcome to your inquiry about our products.We assure that our products will satisfy your needs with competitive performance price ratio and best services.
B3087: Seamless steel tubes for low and medium pressure boiler
Steel grade |
Chemical composition, %by mass |
|||||||
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
|
not exceeding | ||||||||
10 |
0.07~0.13 |
0.17~0.37 |
0.35~0.65 |
0.035 |
0.035 |
0.15 |
0.30 |
0.25 |
20 |
0.17~0.23 |
0.17~0.37 |
0.35~0.65 |
0.035 |
0.035 |
0.25 |
0.30 |
0.25 |
Mechanical Porperties
Grade |
Tensile Strength Rm/ MPa |
ReL/MPa |
Elogation A/ % |
|
Wall thickness/mm | ||||
≤16 |
>16 |
|||
Max. |
Max. |
|||
10 |
335~475 |
205 |
195 |
24 |
20 |
410~550 |
245 |
235 |
20
|

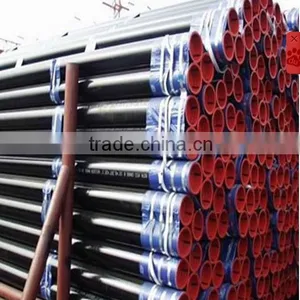

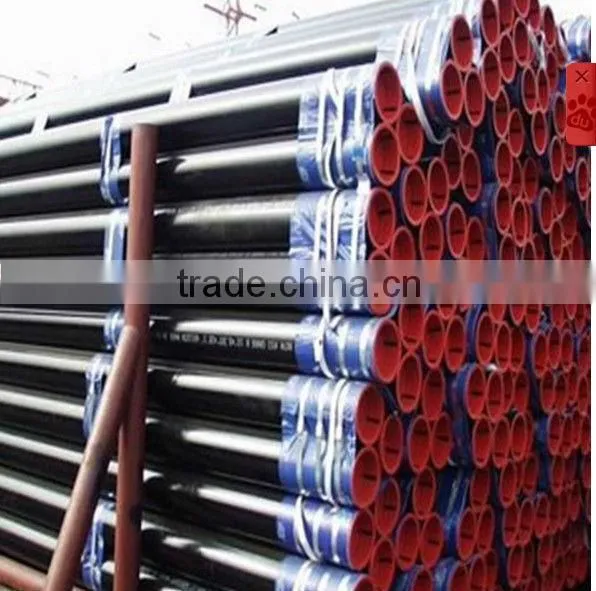

Products pics
Workshop pics
Packing way:
certificates
contact ID:
Your trial order will be cherished, any query pls feel free to contact us via the above ID, we are at 24 hours service for you.
Yours Sincerely
Magi Wu
