Boiler Tube(high Pressure Boiler Tube)

Boiler Tube(high Pressure Boiler Tube) photo-1
US$ 600 - 1,000 MOQ: 50 Tons
Key Specifications
Get Latest Price
Thickness:
2, 20
Section Shape:
Round
Outer Diameter:
13 - 127 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Thickness 2, 20
Section Shape Round
Outer Diameter 13 - 127 mm
Place of Origin Hunan, China
Secondary Or Not Non-secondary
Application Boiler Pipe
Certification BSI
Surface Treatment Other, black or varnishing painting
Alloy Or Not Is Alloy

boiler tube(high pressure boiler tube)



carbon steel pipes seamless boiler tubes  OD; 13 - 127mm  WT:2-20mm



1) Cold drawn seamless steel tube/pipe

2)  Standard: ASTM A179,A192,A210,A213,DIN17175 ETC 3) Grade: A179,A192,A210, ST52, ST35.8 are available



3) Max length:12m

4) Package:bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes

(Surface treatment:Oiled, black painted, shot blasted, hot dipped galvanized or phosphate coating)

5) Third party inspection: BV, SGS, Lloyds

6)  Manufacturing method: cold-drawn

7) Marking,oil-coating,bevelled ends, end plastic caps to be confirmed,





Mechanical properties :

Item

no

Grade



Mechanical properties

TensileStrength

Rm Mpa

Yield strength

Rel Mpa

Elongation a%

  %

Aku2J

impact



Not lower than

1

10

335~490

205

24

-

--

2

20

410~550

245

24

--

39

3

16Mn

490~670

320

21

--

47

4

15MnV

510~690

350

19

----

47

5

12CrMo

410~560

205

21

--

55

6

15CrMo

440~640

235

21

--

47

7

12Cr2Mo

450~640

280

20

--

38

8

1Cr5Mo

390~590

195

22

--

94

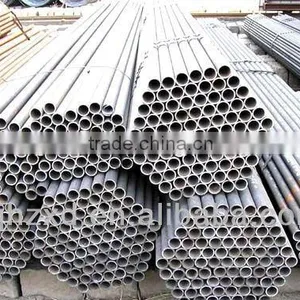

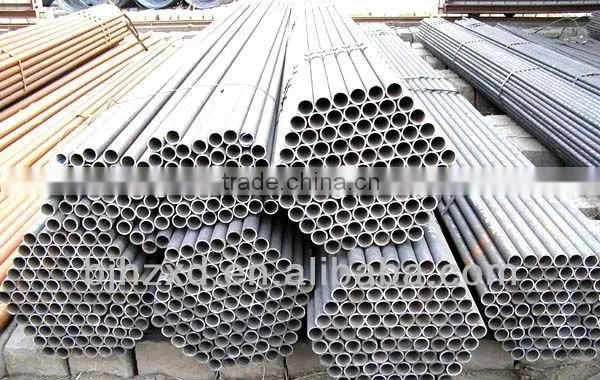

products pics↓













boiler tube(high pressure boiler tube)



boiler tube(high pressure boiler tube)

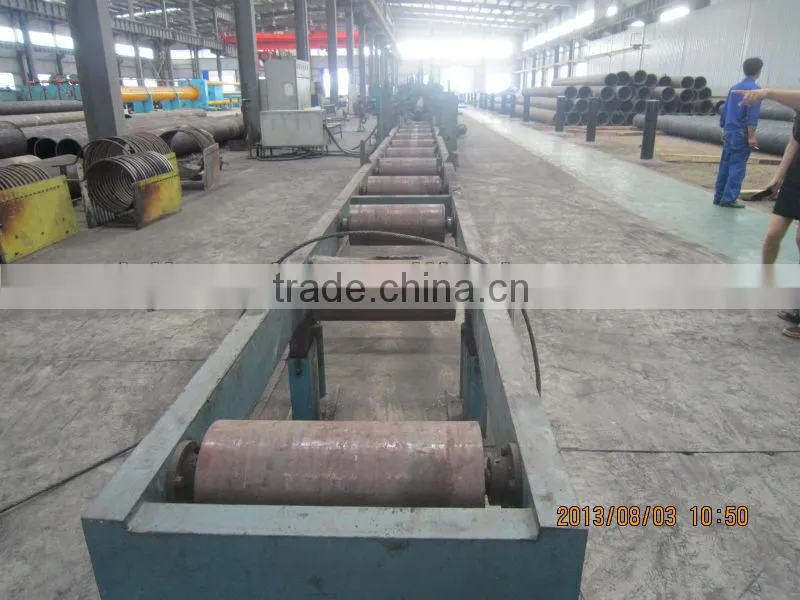

Factory and process pics:↓



boiler tube(high pressure boiler tube)





boiler tube(high pressure boiler tube)



boiler tube(high pressure boiler tube)





unloading:↓







Packing pics:↓



boiler tube(high pressure boiler tube)







Contact ID:↓



boiler tube(high pressure boiler tube)



We are endevouring to be service you at any time, your trial order  will be cherished and we will offer the base price for the first time to show our sincere. Pls contact us via the above contact way.
