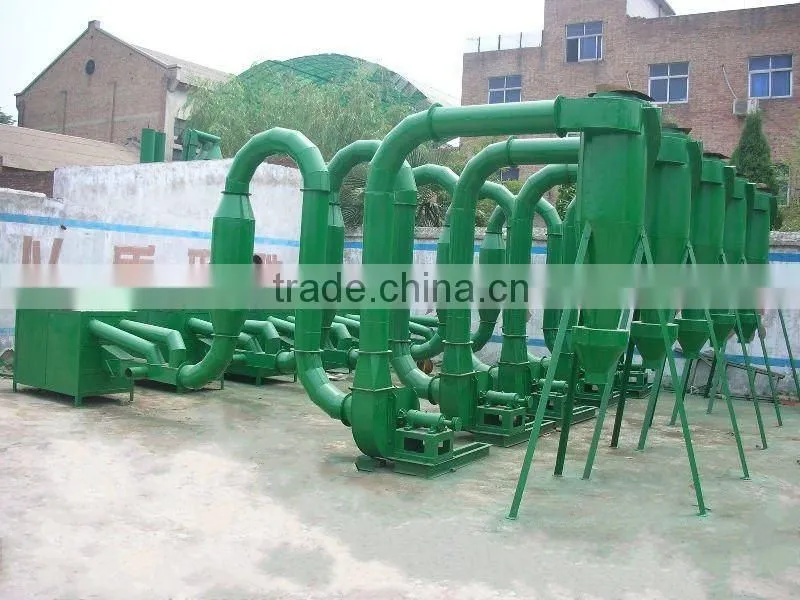

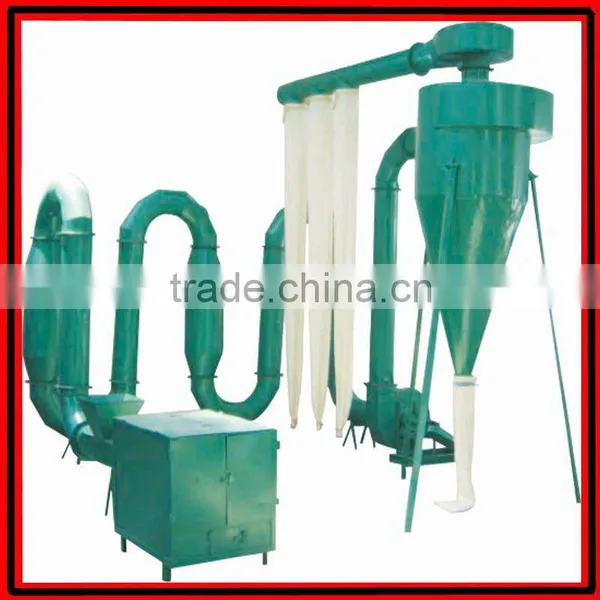

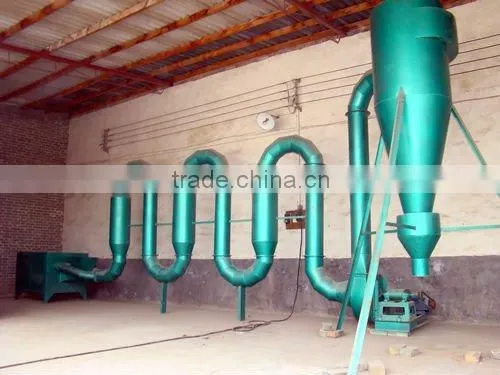

Wood Sawdust dryer
- Materials selection:
sensitive particular material as saw dust,rice hull,milled wheat straw,ground wood chip,wood bits, etc. Size: less than 3*5mm
- Working principle:
In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and materials suspending in air stream, the heat transfer surface between air and raw material is large, so the heat transfer rate is high.
It can reduce moisture from 40-45% to 8-12%.
- Main data:
Model |
HGJ-I |
HGJ-II |
HGJ-III |
Capacity-kg/h |
300-400 |
500-800 |
800-1000 |
Diameter of input Material-mm |
3mm - 5mm |
3mm - 5mm |
3mm - 5mm |
Air temperature-°C |
180°C~250°C |
180°C~250°C |
180°C~250°C |
Centrifugal power-Airlock power-kw |
4kw 380V/50Hz,3 Phase |
5.5kw 380V/50Hz,3Phase |
7.5kw 380V/50Hz,3Phase |
Consumption of Wood Waste: -kg/h |
10-15 |
15-20 |
25-30k |
Weight/kg |
2000 |
3000 |
4500 |
Dimension-meter |
20*0.85*2.2m |
30*0.85*2.5 |
50*0.95*2.7 |
Moisture-max-°C |
35-45 |
35-45 |
35-45 |
Dried-max-°C |
8-12 |
8-12 |
3-10 |
- Images:
