coconut shell charcoalbriquettemachine
Products details of the coconut shell charcoal briquette machine :
The machine is a reliable, heavy duty, ram type, presses designed for continuous operation, equipped with a sturdy crank gear, cross head and two flywheels. One of the flywheels acts as a pulley and is driven by the main motor through flat belt. Forced lubrication is provided by an oil-circulating system with dual filtration and forced cooling.
1. The coconut shell charcoal briquette machine with the features of high capacity, low energy consumption, compact and durable.
2. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level.
3. The coconut shell charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts.
4. The out diameter of finished briquettes is 50-80mm.
Raw Material requirements of the coconut shell charcoal briquette machine:
Materials selection: agriculture waste/furniture factory waste, sawdust, sugar cane, rice, straw, rice/corn/cotton stalk, peanut shell, tree branch, bamboo, corn / cotton husk ,etc.
Moisture: 8-12%,
Size: 3mm ~ 5mm
Technical parameter of the coconut shell charcoal briquette machine :
Model |
AMS-ZBJ-I |
AMS-ZBJ-II |
Motor (kw) |
15kw, 380V/60Hz |
18.5kw, 380V/60Hz |
Diameter of the briquettes: |
Ø 50mm |
Ø 70mm,Ø 80mm |
Capacity |
160-200kg/h |
350-400 kg/h |
Weight (kg) |
600kg |
750kg |
Dimensions(mm) |
1500*600*1600 |
1850*650*1300 |
Feature of the coconut shell charcoal briquette machine :
1. Stress relieved and precision bored body Water cooling provides maximum running hours per day.
2. Hardened alloy steel crank shaft&Head
3. Easy replacement of crank, king pin, housing bushes
4. Easier die holed mounting S Balanced assembly of crankshaft
5. Automatic stoppage of press on low oil pressure.
Spare parts for the coconut shell charcoal briquette machine
Final briquettes of the coconut shell charcoal briquette machine :
The out diameter of final briquettes is 50-80 mm .
The length could be controlled and changed according to your requirements.

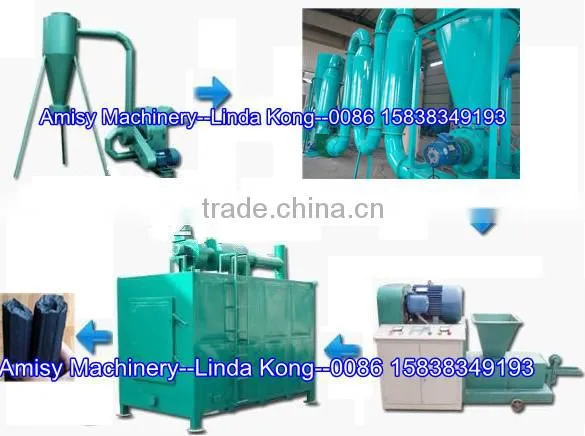

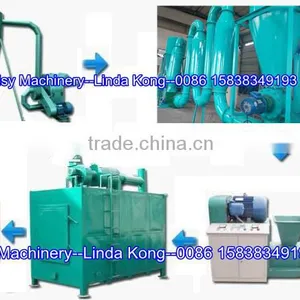

The process for producing charcoal briquette
Raw material→ Crusher →Drier →Briquette Press→Packager→ Finished Product
1. Crusher: Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dryer: Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed let of briquette machine
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stick
The packing and delivery of the coconut shell charcoal briquette machine
