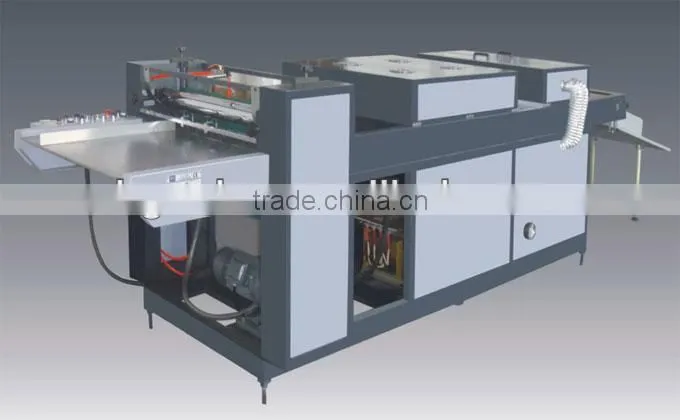

UV Varnishing Glazing Machine(UV Coating Machine) is necessary to printing products after fine print. All kinds of paper printed matter treated by this machine are not only improving the smooth finish of surface, but also dampproof, dustproof, sunproof and wear-resistant of for the surface of printed matter especially affer UV vanish Processing. The effect is comparable to laminating, calendering treatment, and no film -droping, curly and back light defect.
Features
1.The machine can be used together with calendering machine, also can be separately used in glazing, UV vanish and water base.
2.The machine adopts stepless speed regulation, and hase reasonable structure and easy to operate.
3.Drive adopts steel mesh belt, which is fireproofing, has good ventilation and long service life.
4.Reasonable internal structure, can effectively prevent the leakage of ultraviolet light.
Main Technical Variables
MODEL |
SHGAOHE-650C |
SHGAOHE-1000C |
SHGAOHE-1200C |
Most large format |
650mm |
500mm |
630mm |
Paper weight |
200-600g |
200-600g |
200-600g |
Maximum speed |
0-50m/min |
0-50m/min |
0-50m/min |
Power |
UV 16KW&IR15KW |
UV 16KW&IR15KW |
UV 16KW&IR15KW |
Total Weight |
1.8T |
2T |
2.2T |
Overall Dimensions |
4500*1200*1500mm |
6620*1575*1500mm |
6620*1775*1500mm |
