LPM-400 label punching machine
- 5 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Details
Condition: | New | Type: | Laminating Machine | Computerized: | Yes |
Place of Origin: | Shanghai, China | Brand Name: | GAOHE | Model Number: | GH-1000CC |
Voltage: | 380VAC | Power(W): | 16KW | Dimension(L*W*H): | 6620*1575*1500mm |
Weight: | 2000KGS | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

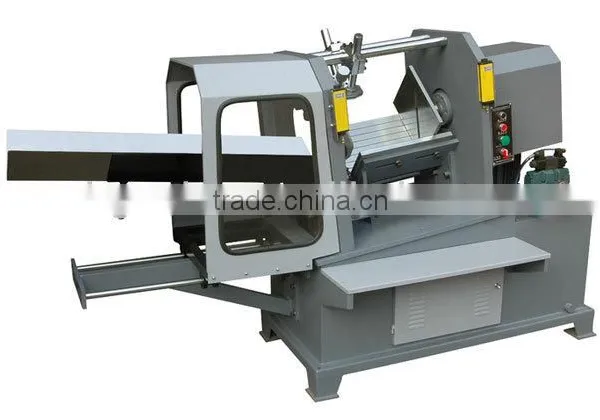

LPM Series label Punching machine is mainly product of our company .It is Suitable for the production of labels ,playing cards , aluminum plastic, New year card, note book, envelopes of any design or size .with an average production of about 900.000 production of high precision hourly. This machine adopts hydraulic pressure system. with a push-cube self-adjusting to every position of the "V" hold where the pack is positioned in order to obtain a homogeneous pression and distribution of the paper .the working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch and is adaptable both for low and medium oduction. The working process is completely stability. The die cutting products surface is smooth, and the size is unified and regular with high precision.
NOTE: the quality of paper products and knife are in a great relationship. Our company’s knife is after completion of the process of the six high-quality die, characterized by high accuracy, high hardness, wear-resistant, Durable.
Main Technical Variables:
Model | LCM-130 | LCM-150 | LCM-220 | LCM-280 | LCM-400 | LCM-500 |
Maximum cutting size | 90*65mm | 100*100mm | 150*150mm | 190*190mm | 270*270mm | 340*340mm |
Minimum cutting size | 87*57mm | 55*40mm | 95*60mm | 105*75mm | 120*120mm | 150*150mm |
Stack height | 200mm | 200mm | 250mm | 250mm | 250mm | 250mm |
Cutting pressure | 12KN | 16KN | 30KN | 40KN | 50KN | 50KN |
Working speed | 99mm/s | 76mm/s | 66mm/s | 65mm/s | 65mm/s | 65mm/s |
Power | 1.5kw | 1.5kw | 2.2kw | 3kw | 4kw | 4kw |
Net weight | 285kg | 300kg | 360kg | 560kg | 900kg | 1140kg |
Package size | 1680*650 | 1700*650 | 1800*700 | 1850*740 | 1900*840 | 1950*850 |
