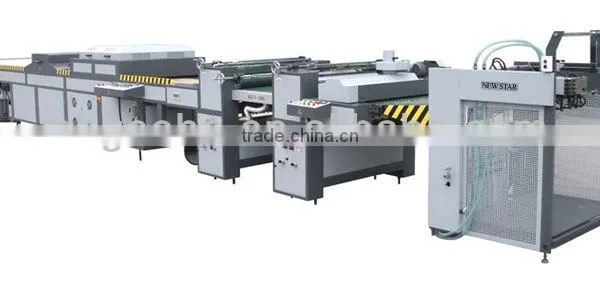

SGUV-1000A/1200A Automatic UV Coating

SGUV-1000A/1200A Automatic UV Coating photo-1
US$ 15,000 - 17,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Laminating Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Laminating Machine
Computerized Yes
Place of Origin Shanghai, China
Brand Name GAOHE
Model Number GH-1000CC
Voltage 380VAC
Power(W) 16KW
Dimension(L*W*H) 6620*1575*1500mm
Weight 2000KGS
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

SGUV-1000/1200A UV automatic coating machine has experienced technical upgrades based on the origina three-roller coating machine.With frequency coversion control adopted for metering roll,oiling volumes for papers of different thickness can be controlled through different linear veldt,straightforward and easy to operate,and it achieves fundermental changes in the surface fineness and smoothness of coating products without orange peel veins ba and large,thus optimizin polishing products.

Main Technical Variables

MODEL SGUV-1000A SGUV-1200A
MAX.Paper Size

780*950mm

780*1040mm

Min.Paper Size 340*420mm 340*420mm
Max. Coating Width 950mm 1150mm
Paper Thickness 80-600g/m2(wind-knife)
200-600g/m2
80-600g/m2(wind-knife)
200-600g/m2
Max. Feeder Speed IR80m/min
UV40m/min
IR80m/min
UV40m/min
Overall Dimensions 1200*1760*1600mm 1200*1960*1600mm
Total Weight 5000kg 5500kg
Total Power 65kw 65kw
